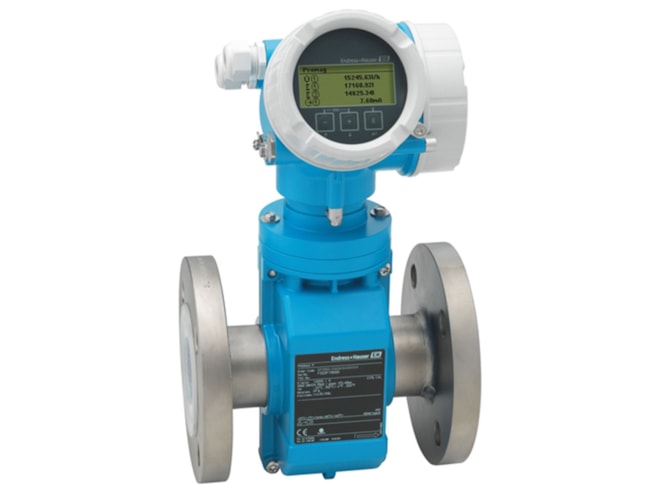

E+H Proline Promag P 200 Electromagnetic Flow Meter

Name: E+H Proline Promag P 200 Electromagnetic Flow Meter
Price: 5492.72 USD
Availability: InStock

Designed for highest medium temperatures with genuine loop-powered technology.

Starting at $5,492.72

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping (some models excluded)
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Measures volume flow and mass flow
Medium Temperature Ranges:
- PFA Liner: –20 to 150°C (–4 to 302°F)
- PTFE Liner: –40 to 130°C (–40 to 266°F)
1 to 4850 gal/min measuring range
Outputs:
- 4 to 20 mA HART (passive)
- Pulse/frequency/switch output (passive)
Maximum Measured Error:
- Volume flow: ±0.5%
DN 15 to 200 (1/2 to 8in) nominal diameter range
PN 40, Class 300, 20K maximum process pressure
No pressure loss
4-line backlit display option
IP66/67, Type 4X standard enclosure
ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, JPN hazardous area approvals
Predecessors: Promag 23P, Promag 50E, Promag 50P, Promag 53E, Promag 53P

Predecessor: Promag 50P, Promag 53P, Promag 50E, Promag 53E, and Promag 23P

The E+H Proline Promag P 200 Electromagnetic Flow Meters are designed for chemical and process applications with corrosive liquids and media temperatures up to 302°F (PFA liner). The genuine loop-powered technology enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas thanks to its intrinsically safe design (Ex ia). Heartbeat Technology ensures process safety at all times.

E+H transmitters do not require proprietary communication system, rather they offer full access to process and diagnostic information via numerous, freely combinable I/Os and fieldbuses. Digital communication options include HART, PROFIBUS DP, Modbus RS485, Profinet and Ethernet/IP. This E+H flow meter is housed in an IP66/67, Type 4X enclosure.

The E+H Proline Promag P 200 electromagnetic flow meter can measure flow from 1 gal/min up to 44,000 gal/min and is available with a PFA or PTFE liner. The PFA liner can handle application media from -4 to 302°F (standard) or 356°F (high-temperature option) and the PTFE liner offers a temperature range of -40 to 266°F. The standard maximum measured error is ±0.5% o.r. ±2 mm/s (0.08 in/s) and the Proline Promag P 200 offers an improved accuracy of ±0.2 % of reading ± 2 mm/s. Optional Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV-attestation).

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+H Promag Grounding Ring

1/2 to 48 inch options available; single ring.

Some Models in Stock

Starting at $106.38

Accessories

Please consider these optional accessories.

E+H RA33 Batch Controller

Designed to record flow and control output signals for valves and pumps to ensure the exact dosing of predefined batch quantities.

Starting at $1,313.63

This product can be used in the following applications:

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Size	Approval	Output and Input 1	Display and Operation	Liner Material	Process Connection	Electrodes	Sensor Option	Additional Approvals	Price	Available
5P2B1F-C3AECDAA1S0AEB Show Full Configuration	6in, DN150	CSA C/US XP Cl.I,II,III Div.1 Gr.A-G	4 to 20mA HART	SD03 4-line, illum. and touch control, data backup function	PFA	Cl 150, stainless steel, flange ASME B16.5	1.4435/316L	Without	Without	$11,891.94	1 in stock
5P2B1H-AABCCDEA1S0AAALA Show Full Configuration	4in, DN100	Non-hazardous area	4 to 20mA HART, pulse/freq./switch output	SD02 4-line and push buttons, data backup function	PTFE	Cl 150, stainless steel, flange ASME B16.5	1.4435/316L	Without	SIL	$8,114.39	1 in stock
5P2B40-AAACCDAA1K0AAA Show Full Configuration	1 1/2in, DN40	Non-hazardous area	4 to 20mA HART	SD02 4-line and push buttons, data backup function	PFA	Cl 150, carbon steel, flange ASME B16.5	1.4435/316L	Without	Without	$6,104.54	1 in stock

Base Price:: $5,397.20
Size: 6in, DN150 (+$2,883.21)
Approval: CSA C/US XP Cl.I,II,III Div.1 Gr.A-G (+$619.23)
Output and Input 1: 4 to 20mA HART
Display and Operation: SD03 4-line, illum. and touch control, data backup function (+$313.35)
Housing: GT20 dual compartment, aluminum coated (+$95.52)
Electrical Connection: Thread NPT1/2
Liner Material: PFA (+$649.10)
Process Connection: Cl 150, stainless steel, flange ASME B16.5 (+$1,313.10)
Electrodes: 1.4435/316L
Calibration Flow: 0.5%
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Heartbeat verification + monitoring (+$621.23)
Service: Without
Test Certificate: Without
Additional Approvals: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without

Reconfigure

Base Price:: $5,397.20
Size: 4in, DN100 (+$1,295.61)
Approval: Non-hazardous area
Output and Input 1: 4 to 20mA HART, pulse/freq./switch output (+$179.06)
Display and Operation: SD02 4-line and push buttons, data backup function (+$208.92)
Housing: GT20 dual compartment, aluminum coated (+$95.52)
Electrical Connection: Thread NPT1/2
Liner Material: PTFE
Process Connection: Cl 150, stainless steel, flange ASME B16.5 (+$790.87)
Electrodes: 1.4435/316L
Calibration Flow: 0.5%
Language: English
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approvals: SIL (+$147.21)
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without

Reconfigure

Base Price:: $5,397.20
Size: 1 1/2in, DN40
Approval: Non-hazardous area
Output and Input 1: 4 to 20mA HART
Display and Operation: SD02 4-line and push buttons, data backup function (+$208.92)
Housing: GT20 dual compartment, aluminum coated (+$95.52)
Electrical Connection: Thread NPT1/2
Liner Material: PFA (+$402.90)
Process Connection: Cl 150, carbon steel, flange ASME B16.5
Electrodes: 1.4435/316L
Calibration Flow: 0.5%
Language: English
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approvals: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
5P2B80-AAACCDEA1KGADAJAK9	Call for information	1	Call to order
5P2B80-C4ACCDEA1KGADAJAK9	Call for information	1	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
