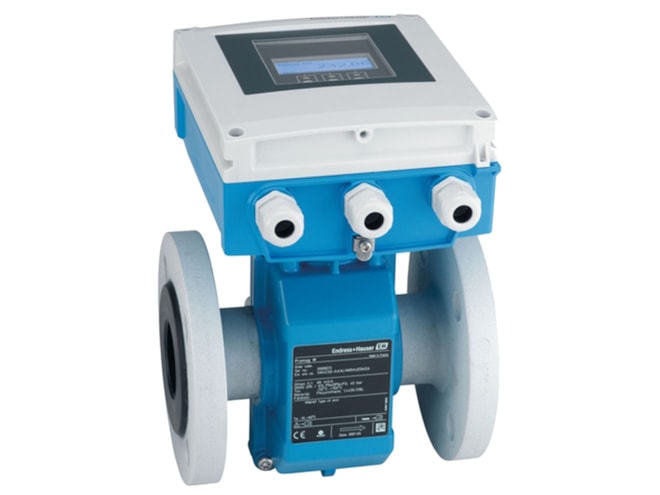

E+H Proline Promag W 400 Electromagnetic Flow Meter

Certified corrosion protection for underground or permanent underwater installation in water, wastewater and custody transfer industries.

E+H Proline Promag W 400 Electromagnetic Flow Meter
E+H Proline Promag W 400 Electromagnetic Flow Meter

Starting at $5,047.90

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping (some models excluded)
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Measures volume flow, conductivity and mass flow
ACS, KTW/W270, NSF 61, WRAS BS 6920 drinking water approval
DN 25 to 2000 (1 to 78 in.) nominal diameter range
Media Temperature Ranges:
- Hard Rubber Liner: 32 to 176°F (0 to 80°C)
- Polyurethane Liner: –4 to 122°F (–20 to 50°C)
2.5 gal/min to 700 Mgal/d measuring range
Up to 3 Outputs:
- 0‐20 mA/4‐20 mA HART (active)
- Pulse/frequency/switch output (passive)
- Pulse/frequency output (passive)
- Switch output (passive)
Maximum Measured Error:
- Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
- Volume flow (optional): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
PN 40, Class 300, 20K maximum process pressure
No pressure loss due to cross-section constriction
4-line backlit display with touch control & WLAN access
HART, PROFIBUS DP, EtherNet/IP, Modbus RS485 digital communications
IP66/67, Type 4X standard enclosure
- IP68, Type 6P (optional for remote sensor)
- IP68, Type 6P includes protective varnish according to EN ISO 12944 C5‐M/Im1/Im2/Im3
Heartbeat Technology (optional)

Predecessor: Promag 50W, Promag 53W, Promag 51W, and Proline Promag L 400 / 5L4C

The E+H Proline Promag W 400 electromagnetic flow meter measures volume flow, conductivity and mass flow. It features certified corrosion protection (EN ISO 12944) for underground or permanent underwater installation making it an ideal fit in water, wastewater and custody transfer industries. The bidirectional measuring principle is not dependent on pressure, density, temperature and viscosity. Because it has no moving parts, the Promag W 400 is maintenance-free and applications suffer no pressure loss due to cross-section constriction.

E+H transmitters do not require proprietary communication system, rather they offer full access to process and diagnostic information via numerous, freely combinable I/Os and fieldbuses. The W 400 allows for up to three analog or digital outputs. Digital communication options include HART, PROFIBUS DP, EtherNet/IP and Modbus RS485. This E+H flow meter is housed in an IP66/67, Type 4X enclosure standard, while IP68, Type 6P protection is also available as an option for the remote sensor. The IP68, Type 6P protection also includes a protective varnish according to EN ISO 12944 C5‐M/Im1/Im2/Im3.

The E+H Proline Promag W 400 electromagnetic flow meter can measure flow from 2.5 gal/min up to 700 Mgal/d and can handle a variety of media temperatures, depending on liner material. Two liner materials are available including hard rubber (32 to 176°F) and polyurethane (-4 to 122°F). The standard maximum measured error is ±0.5 % of reading ± 1 mm/s and the Proline Promag W 400 offers an improved accuracy of ±0.2 % of reading ± 2 mm/s. Optional Heartbeat Technology ensures compliance and process safety at all times.

Spec Sheets

E+H Proline Promag W 400 Electromagnetic Flow Meter Datasheet PDF (5.1 MB)

Manuals

Application Notes and White Papers

Other

Flow Application Information Form (268 KB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+H Promag Grounding Ring

1/2 to 48 inch options available; single ring.

Some Models in Stock

Starting at $106.38

Accessories

Please consider these optional accessories.

E+H RA33 Batch Controller

Designed to record flow and control output signals for valves and pumps to ensure the exact dosing of predefined batch quantities.

Starting at $1,313.63

This product can be used in the following applications:

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Size	Approval	Output and Input	Liner Material	Process Connection	Sensor Option	Additional Approval	Price	Available
5W4C80-C6ELMA0DUA2KGBAAEB Show Full Configuration	3in, DN80	CSA C/US NI Cl I Div 2 Gr ABCD	Modbus RS485	Polyurethane	Cl 300, carbon steel, flange ASME B16.5	None	None	$7,282.84	9 in stock
5W4C2F-C6ILHP2DUA1KGAAAPA Show Full Configuration	10in, DN250	CSA C/US NI Cl I Div 2 Gr ABCD	4-20mA HART, pulse/freq, switch output	Polyurethane	Cl 150, carbon steel, flange ASME B16.5	None	None	$10,931.67	4 in stock
5W4C80-AADLHA0DUA12HAEB Show Full Configuration	3in, DN80	Non-hazardous area	4-20mA HART, pulse/freq, switch output	Polyurethane	Cl.150, carbon steel, lap joint flange, ASME B16.5	None	None	$5,740.95	3 in stock
5W4C1H-AAILNA0DHA1K0BEB Show Full Configuration	4in, DN100	Non-hazardous area	EtherNet/IP	Hard rubber	Cl 150, carbon steel, flange ASME B16.5	None	None	$7,386.43	2 in stock
5W4C2H-AADLHP2DQA12HAAA Show Full Configuration	8in, DN200	Non-hazardous area	4-20mA HART, pulse/freq, switch output	PTFE 90°C	Cl.150, carbon steel, lap joint flange, ASME B16.5	None	None	$7,768.28	2 in stock
5W4C1F-AAELHA0DUA2KGAAADHPA Show Full Configuration	6in, DN150	Non-hazardous area	4-20mA HART, pulse/freq, switch output	Polyurethane	Cl 300, carbon steel, flange ASME B16.5	None	None	$7,314.55	1 in stock
5W4C1F-AAELNA0DHA1KHAAAL4 Show Full Configuration	6in, DN150	Non-hazardous area	EtherNet/IP	Hard rubber	Cl 150, carbon steel, flange ASME B16.5	None	NSF 61 drinking water approval	$7,090.66	1 in stock
5W4C1H-AACLHP4AHD3K0ACB [30m] Show Full Configuration	4in, DN100	Non-hazardous area	4-20mA HART, pulse/freq, switch output	Hard rubber	PN16, carbon steel, flange EN1092-1 (DIN2501)	IP68, Type 6P, factory-potted EN ISO 12944 C5-M/Im1	None	$7,739.93	1 in stock
5W4C1H-AADLNP2LQA120A Show Full Configuration	4in, DN100	Non-hazardous area	EtherNet/IP	PTFE 90°C	Cl.150, carbon steel, lap joint flange, ASME B16.5	None	None	$6,460.01	1 in stock
5W4C1H-AAELHA0DUA1KGB Show Full Configuration	4in, DN100	Non-hazardous area	4-20mA HART, pulse/freq, switch output	Polyurethane	Cl 150, carbon steel, flange ASME B16.5	None	None	$6,047.89	1 in stock
5W4C1H-AAELHP2DHA1KHEBACQ Show Full Configuration	4in, DN100	Non-hazardous area	4-20mA HART, pulse/freq, switch output	Hard rubber	Cl 150, carbon steel, flange ASME B16.5	IP68, Type 6P, factory potted	None	$8,601.94	1 in stock
5W4C1H-AAELHP3DUA1KGMCB Show Full Configuration	4in, DN100	Non-hazardous area	4-20mA HART, pulse/freq, switch output	Polyurethane	Cl 150, carbon steel, flange ASME B16.5	IP68, Type 6P, factory-potted EN ISO 12944 C5-M/Im1	None	$7,209.45	1 in stock
5W4C1H-AAELNA0DHA1K0ABA Show Full Configuration	4in, DN100	Non-hazardous area	EtherNet/IP	Hard rubber	Cl 150, carbon steel, flange ASME B16.5	None	None	$6,246.37	1 in stock
5W4C1H-AAELNP1DUA1S0ACCI7 Show Full Configuration	4in, DN100	Non-hazardous area	EtherNet/IP	Polyurethane	Cl 150, stainless steel, flange ASME B16.5	IP68, Type 6P, customer-potted EN ISO 12944 C5-M/Im1	None	$8,028.31	1 in stock
5W4C1H-C6ELHP5DUA1K0AAACB [200ft] Show Full Configuration	4in, DN100	CSA C/US NI Cl I Div 2 Gr ABCD	4-20mA HART, pulse/freq, switch output	Polyurethane	Cl 150, carbon steel, flange ASME B16.5	IP68, Type 6P, factory-potted EN ISO 12944 C5-M/Im1	None	$8,330.17	1 in stock
5W4C1H-C6ELMA0DUA2KGBAAEB Show Full Configuration	4in, DN100	CSA C/US NI Cl I Div 2 Gr ABCD	Modbus RS485	Polyurethane	Cl 300, carbon steel, flange ASME B16.5	None	None	$7,624.08	1 in stock
5W4C1H-C6ELNP5DHA1KGAAACBL4 [100ft] Show Full Configuration	4in, DN100	CSA C/US NI Cl I Div 2 Gr ABCD	EtherNet/IP	Hard rubber	Cl 150, carbon steel, flange ASME B16.5	IP68, Type 6P, factory-potted EN ISO 12944 C5-M/Im1	NSF 61 drinking water approval	$8,031.44	1 in stock
5W4C25-AADLMA0DQA120AEB Show Full Configuration	1in, DN25	Non-hazardous area	Modbus RS485	PTFE 90°C	Cl.150, carbon steel, lap joint flange, ASME B16.5	None	None	$5,857.76	1 in stock
5W4C25-C6ELHA0DUA1KGADA Show Full Configuration	1in, DN25	CSA C/US NI Cl I Div 2 Gr ABCD	4-20mA HART, pulse/freq, switch output	Polyurethane	Cl 150, carbon steel, flange ASME B16.5	None	None	$5,137.44	1 in stock
5W4C2F-AADLHN5DUA12GAAAEB [100ft] Show Full Configuration	10in, DN250	Non-hazardous area	4-20mA HART, pulse/freq, switch output	Polyurethane	Cl.150, carbon steel, lap joint flange, ASME B16.5	None	None	$11,011.18	1 in stock
5W4C2F-AAELHP1DHA1KGA Show Full Configuration	10in, DN250	Non-hazardous area	4-20mA HART, pulse/freq, switch output	Hard rubber	Cl 150, carbon steel, flange ASME B16.5	None	None	$10,507.53	1 in stock
5W4C2F-AAELIA0DUA1KGAAAL4 Show Full Configuration	10in, DN250	Non-hazardous area	4-20mA HART, 2x pulse/freq, switch output; status input	Polyurethane	Cl 150, carbon steel, flange ASME B16.5	None	NSF 61 drinking water approval	$10,023.19	1 in stock
5W4C2F-AAHLHN1DQA12GA Show Full Configuration	10in, DN250	Non-hazardous area	4-20mA HART, pulse/freq, switch output	PTFE 90°C	Cl.150, carbon steel, lap joint flange, ASME B16.5	None	None	$10,154.26	1 in stock
5W4C2F-AAHLHN2DUA12GABADH Show Full Configuration	10in, DN250	Non-hazardous area	4-20mA HART, pulse/freq, switch output	Polyurethane	Cl.150, carbon steel, lap joint flange, ASME B16.5	None	None	$10,399.28	1 in stock
5W4C2H-AADLHP5DUA12GA [75ft] Show Full Configuration	8in, DN200	Non-hazardous area	4-20mA HART, pulse/freq, switch output	Polyurethane	Cl.150, carbon steel, lap joint flange, ASME B16.5	None	None	$7,932.03	1 in stock
5W4C2H-AAELOP2DHA1K0AL4 Show Full Configuration	8in, DN200	Non-hazardous area	Modbus RS485, 4-20mA, 2x pulse, freq, switch output	Hard rubber	Cl 150, carbon steel, flange ASME B16.5	None	NSF 61 drinking water approval	$8,810.13	1 in stock
5W4C2H-AAHLHA0DQA140BAA Show Full Configuration	8in, DN200	Non-hazardous area	4-20mA HART, pulse/freq, switch output	PTFE 90°C	Cl.150, stainl. steel, lap joint flange, ASME B16.5	None	None	$9,263.19	1 in stock
5W4C3H-AADLNP2DUA12GAEBJAL4 Show Full Configuration	12in, DN300	Non-hazardous area	EtherNet/IP	Polyurethane	Cl.150, carbon steel, lap joint flange, ASME B16.5	None	NSF 61 drinking water approval	$13,264.72	1 in stock
5W4C3H-AAHLNA0DUA120A Show Full Configuration	12in, DN300	Non-hazardous area	EtherNet/IP	Polyurethane	Cl.150, carbon steel, lap joint flange, ASME B16.5	None	None	$12,029.96	1 in stock
5W4C3H-AAHLNA0DUA12GAL4 Show Full Configuration	12in, DN300	Non-hazardous area	EtherNet/IP	Polyurethane	Cl.150, carbon steel, lap joint flange, ASME B16.5	None	NSF 61 drinking water approval	$12,029.96	1 in stock
5W4C40-AAILHN2DUA1KGAEB Show Full Configuration	1 1/2in, DN40	Non-hazardous area	4-20mA HART, pulse/freq, switch output	Polyurethane	Cl 150, carbon steel, flange ASME B16.5	None	None	$6,531.47	1 in stock
5W4C40-C6DLHA0DQA140ADA Show Full Configuration	1 1/2in, DN40	CSA C/US NI Cl I Div 2 Gr ABCD	4-20mA HART, pulse/freq, switch output	PTFE 90°C	Cl.150, stainl. steel, lap joint flange, ASME B16.5	None	None	$5,187.78	1 in stock
5W4C40-C6DLNA0DUA12GA Show Full Configuration	1 1/2in, DN40	CSA C/US NI Cl I Div 2 Gr ABCD	EtherNet/IP	Polyurethane	Cl.150, carbon steel, lap joint flange, ASME B16.5	None	None	$5,158.94	1 in stock
5W4C80-AAELHP2DHA1KHEBACQ Show Full Configuration	3in, DN80	Non-hazardous area	4-20mA HART, pulse/freq, switch output	Hard rubber	Cl 150, carbon steel, flange ASME B16.5	IP68, Type 6P, factory potted	None	$8,333.81	1 in stock

Base Price:: $4,588.93
Size: 3in, DN80 (+$202.52)
Approval: CSA C/US NI Cl I Div 2 Gr ABCD
Design: Fixed flange (+$482.46)
Power Supply: 100-240 VAC / 24 VAC/VDC
Output and Input: Modbus RS485 (+$387.95)
Housing: Compact, aluminum coated
Cable, Remote Version: Not used
Cable Length: Selection not available
Electrical Connection: Thread NPT1/2
Liner Material: Polyurethane
Process Connection: Cl 300, carbon steel, flange ASME B16.5 (+$484.96)
Electrodes: 1.4435/316L, bullet nose
Calibration Flow: 0.2% (+$514.79)
Language: English
Display: Standard
Sensor Option: None
Customized Parameterization: None
Application Package: Heartbeat verification + monitoring (+$621.23)
Service: None
Test, Certificate: None
Additional Approval: None
Accessory Enclosed: None
Firmware Version: None
Marking: Without
Tagging Options: Only available with Tagging selected

Part Number	Price	Available
5W4C2F-AAELNP5DUA1K0A 30.00ft	Call for information	1	Call to order
5W4C2H-C6ELHA0DUA1KGAAAJAJB	Call for information	2	Call to order
5W4C6H-AAFLHP2DHA1KGAAABADHL4PAPC	Call for information	12	Call to order
5W4C1H-AADLNA0DQA140AAAPA66	Call for information	1	Call to order
5W4C3H-AAELNP2DHA1KGACAEBPB	Call for information	1	Call to order
5W4C1H-AAILIA0AUD3K0ALKL1	Call for information	1	Call to order
5W4C50-C6CLHP3DHA1KGBDHEBECL4PBPC	Call for information	2	Call to order
