E+H Proline Promag W 500 Electromagnetic Flow Meter

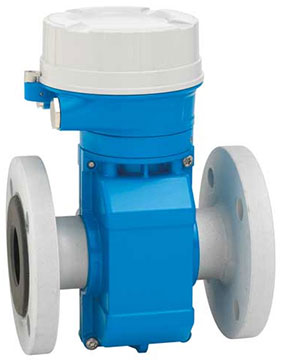

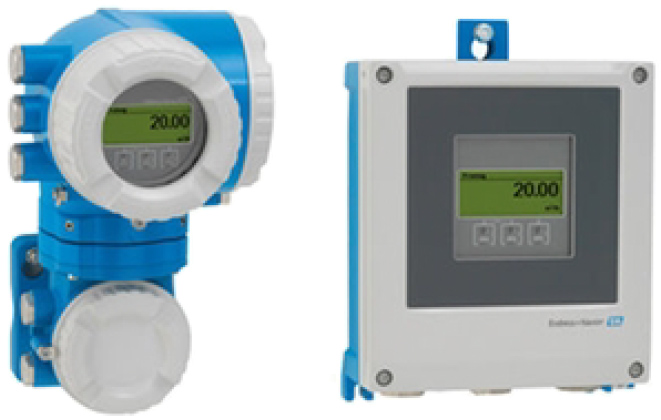

Water/wastewater flanged flow meter with remote full-featured display, rated IP68 permanent submergence and direct burial options.

E+H Proline Promag W 500 Electromagnetic Flow Meter
E+H Proline Promag W 500 Electromagnetic Flow Meter
E+H Proline Promag W 500 Electromagnetic Flow Meter
E+H Proline Promag W Series Product Video

Starting at $6,553.23

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping (some models excluded)
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Measures volume flow, conductivity and mass flow
ACS, KTW/W270, NSF 61, WRAS BS 6920 drinking water approval
DN 25 to 2000 (1 to 78 in.) nominal diameter range
Media Temperature Ranges:
- Hard Rubber Liner: 32 to 176°F (0 to 80°C)
- Polyurethane Liner: –4 to 122°F (–20 to 50°C)
2.5 gal/min to 700 Mgal/d measuring range
Up to 3 Outputs:
- 4-20 mA HART (active/passive)
- 4-20 mA Wireless HART
- 4-20 mA (active/passive)
- Pulse/frequency/switch output (active/passive)
- Double pulse output (active/passive)
- Relay output
Maximum Measured Error:
- Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
- Volume flow (optional): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
PN 40, Class 300, 20K maximum process pressure
No pressure loss due to cross-section constriction
4-line backlit display with touch control & WLAN access
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA digital communications
IP66/67, Type 4X standard enclosure
- IP68, Type 6P (optional for remote sensor)
- IP68, Type 6P includes protective varnish according to EN ISO 12944 C5‐M/Im1/Im2/Im3
Heartbeat Technology (optional)

The E+H Proline Promag W 500 electromagnetic flow meter measures volume flow, conductivity and mass flow. It features certified corrosion protection (EN ISO 12944) for underground or permanent underwater installation making it an ideal fit in water, wastewater and custody transfer industries. The bidirectional measuring principle is not dependent on pressure, density, temperature and viscosity. Because it has no moving parts, the Promag W 500 is maintenance-free and applications suffer no pressure loss due to cross-section constriction.

E+H transmitters do not require proprietary communication system, rather they offer full access to process and diagnostic information via numerous, freely combinable I/Os and fieldbuses. The W 400 allows for up to three analog or digital outputs. Digital communication options include HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP and OPC-UA. This E+H flow meter is housed in an IP66/67, Type 4X enclosure standard, while IP68, Type 6P protection is also available as an option for the remote sensor. The IP68, Type 6P protection also includes a protective varnish according to EN ISO 12944 C5‐M/Im1/Im2/Im3.

The E+H Proline Promag W 400 electromagnetic flow meter can measure flow from 2.5 gal/min up to 700 Mgal/d and can handle a variety of media temperatures, depending on liner material. Two liner materials are available including hard rubber (32 to 176°F) and polyurethane (-4 to 122°F). The standard maximum measured error is ±0.5 % of reading ± 1 mm/s and the Proline Promag W 400 offers an improved accuracy of ±0.2 % of reading ± 2 mm/s. Optional Heartbeat Technology ensures compliance and process safety at all times.

Application Notes and White Papers

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+H Promag Grounding Ring

1/2 to 48 inch options available; single ring.

Some Models in Stock

Starting at $103.29

Accessories

Please consider these optional accessories.

E+H RA33 Batch Controller

Designed to record flow and control output signals for valves and pumps to ensure the exact dosing of predefined batch quantities.

Starting at $1,318.52

This product can be used in the following applications:

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days
