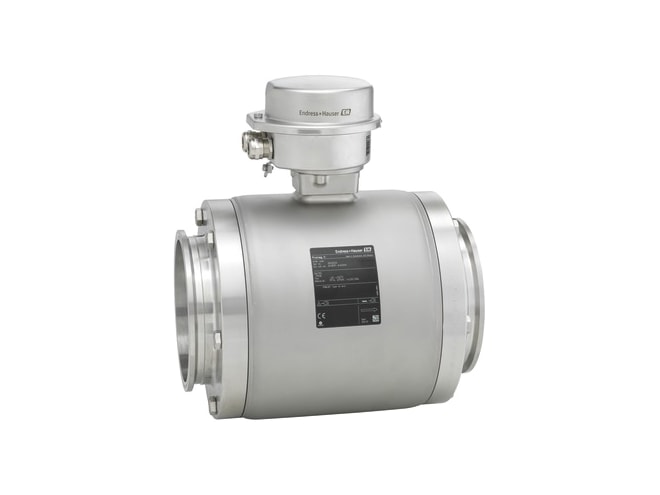

E+H Proline Promag H 100 Electromagnetic Flow Meter

Name: E+H Proline Promag H 100 Electromagnetic Flow Meter
Price: 4587.42 USD
Availability: InStock

Ultra‐compact transmitter, designed for hygienic applications, wetted materials CIP/SIP cleanable, IP66/67.

Starting at $4,587.42

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping (some models excluded)
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Ultra‐compact transmitter
Multivariable measurement for flow, temp, conductivity
-4 to 302°F (-20 to 150°C) medium temp ranges
0.015 to 2650 gal/min measuring range
Outputs:
- 4 to 20 mA HART (active)
- Pulse/frequency/switch output (passive)
Maximum Measured Error:
- Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
- Volume flow (optional): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
DN 2 to 150 (1/12 to 6in)) nominal diameter range
PN 40, Class 150, 20K maximum process pressure
No pressure loss due to cross-section constriction
4-line backlit display
IP66/67, Type 4X standard enclosure
ATEX, IECEx, cCSAus, INMETRO, EAC hazardous area approvals
Predecessors: Promag 50H, Promag 53H

Predecessor: Promag 50H and Promag 53H

Common Use: Brewery, winery, food, and beverage

The E+H Proline Promag H 100 Electromagnetic Flow Meters are designed for hygienic applications with highest requirements in the food and beverage and life sciences industries. The ultra-compact transmitter provides full performance on the smallest footprint and enables seamless system integration, making Promag H 100 the preferred choice for skid builders, equipment manufacturers and system integrators. Heartbeat Technology ensures compliance and process safety at all times.

E+H transmitters do not require proprietary communication system, rather they offer full access to process and diagnostic information via numerous, freely combinable I/Os and fieldbuses. Digital communication options include HART, PROFIBUS DP, Modbus RS485, Profinet and Ethernet/IP. This E+H flow meter is housed in an IP66/67, Type 4X enclosure.

The E+H Proline Promag H 100 electromagnetic flow meter can measure flow from 0.015 to 2650 gal/min and is available with a PFA liner. The PFA liner can handle application media from -4 to 302°F (standard) or 356°F (high-temperature option) The standard maximum measured error is ±0.5 % of reading ± 1 mm/s and the Proline Promag P 100 offers an improved accuracy of ±0.2 % of reading ± 2 mm/s.

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Size	Approval	Output and Input 1	Process Connection	Additional Approvals	Price	Available
5H1B04-AADBAADBI3S0ADA Show Full Configuration	5/32in, DN04	Non-hazardous area	4 to 20 mA HART, pulse/freq./switch output	Female thread ISO228, 1.4404/316L	Without	$3,462.33	5 in stock
5H1B02-AADBAADBI3S0ADA Show Full Configuration	1/12in, DN02	Non-hazardous area	4 to 20 mA HART, pulse/freq./switch output	Female thread ISO228, 1.4404/316L	Without	$3,462.33	4 in stock
5H1B65-AADNBBQFFASGAAACMLP Show Full Configuration	2 1/2in, DN65	Non-hazardous area	EtherNet/IP	Tri-clamp, 1.4404/316L	3A	$5,618.39	2 in stock
5H1B04-AADRAAQFFAS0BAA Show Full Configuration	5/32in, DN04	Non-hazardous area	PROFINET IO	Tri-clamp, 1.4404/316L	Without	$4,466.54	1 in stock
5H1B1H-AADNBBLFFAS0ALP Show Full Configuration	4in, DN100	Non-hazardous area	EtherNet/IP	Tri-clamp, 1.4404/316L	3A	$5,933.92	1 in stock
5H1B65-AADBABDFFASGAEB Show Full Configuration	2 1/2in, DN65	Non-hazardous area	4 to 20 mA HART, pulse/freq./switch output	Tri-clamp, 1.4404/316L	Without	$5,343.30	1 in stock

Base Price:: $2,931.10
Size: 5/32in, DN04
Approval: Non-hazardous area
Output and Input 1: 4 to 20 mA HART, pulse/freq./switch output (+$179.06)
Display: Not Included
Housing: Compact, alu, coated
Electrical Connection: Thread NPT1/2
Seal: O-ring, FKM
Process Connection: Female thread ISO228, 1.4404/316L (+$262.63)
Electrodes: 1.4435/316L
Calibration Flow: 0.5%
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Output 1 (+$89.54)
Application Package: None
Service: Without
Test Certificate: None
Additional Approvals: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $2,931.10
Size: 1/12in, DN02
Approval: Non-hazardous area
Output and Input 1: 4 to 20 mA HART, pulse/freq./switch output (+$179.06)
Display: Not Included
Housing: Compact, alu, coated
Electrical Connection: Thread NPT1/2
Seal: O-ring, FKM
Process Connection: Female thread ISO228, 1.4404/316L (+$262.63)
Electrodes: 1.4435/316L
Calibration Flow: 0.5%
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Output 1 (+$89.54)
Application Package: None
Service: Without
Test Certificate: None
Additional Approvals: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $2,931.10
Size: 2 1/2in, DN65 (+$504.99)
Approval: Non-hazardous area
Output and Input 1: EtherNet/IP (+$387.95)
Display: Included, 4-line LCD with 16 characters per line (+$265.62)
Housing: Compact hygienic, stainless (+$236.75)
Electrical Connection: 2x plug m12x1 (+$185.06)
Seal: Aseptic shape, EPDM
Process Connection: Tri-clamp, 1.4404/316L (+$870.17)
Electrodes: 1.4435/316L, bullet nose
Calibration Flow: 0.5%
Language: English
Sensor Option: IP69 (+$236.75)
Customized Parameterization: Without
Application Package: None
Service: Without
Test Certificate: None
Additional Approvals: 3A
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $2,931.10
Size: 5/32in, DN04
Approval: Non-hazardous area
Output and Input 1: PROFINET IO (+$387.95)
Display: Not Included
Housing: Compact, alu, coated
Electrical Connection: 2x plug m12x1 (+$185.06)
Seal: Aseptic shape, EPDM
Process Connection: Tri-clamp, 1.4404/316L (+$447.64)
Electrodes: 1.4435/316L
Calibration Flow: 0.2% (+$514.79)
Language: English
Sensor Option: Without
Customized Parameterization: Without
Application Package: None
Service: Without
Test Certificate: None
Additional Approvals: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $2,931.10
Size: 4in, DN100 (+$988.00)
Approval: Non-hazardous area
Output and Input 1: EtherNet/IP (+$387.95)
Display: Included, 4-line LCD with 16 characters per line (+$265.62)
Housing: Compact hygienic, stainless (+$236.75)
Electrical Connection: Plug M12x1 + thread NPT1/2 (+$92.51)
Seal: Aseptic shape, EPDM
Process Connection: Tri-clamp, 1.4404/316L (+$1,031.99)
Electrodes: 1.4435/316L
Calibration Flow: 0.5%
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: None
Service: Without
Test Certificate: None
Additional Approvals: 3A
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $2,931.10
Size: 2 1/2in, DN65 (+$504.99)
Approval: Non-hazardous area
Output and Input 1: 4 to 20 mA HART, pulse/freq./switch output (+$179.06)
Display: Not Included
Housing: Compact hygienic, stainless (+$236.75)
Electrical Connection: Thread NPT1/2
Seal: Aseptic shape, EPDM
Process Connection: Tri-clamp, 1.4404/316L (+$870.17)
Electrodes: 1.4435/316L, bullet nose
Calibration Flow: 0.5%
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Heartbeat verification + monitoring (+$621.23)
Service: Without
Test Certificate: None
Additional Approvals: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-4 weeks". Click here to select options
