E+H Proline Promass E 300 Coriolis Flow Meter

Compact, easily accessible transmitter that measures flow, density and temperature.

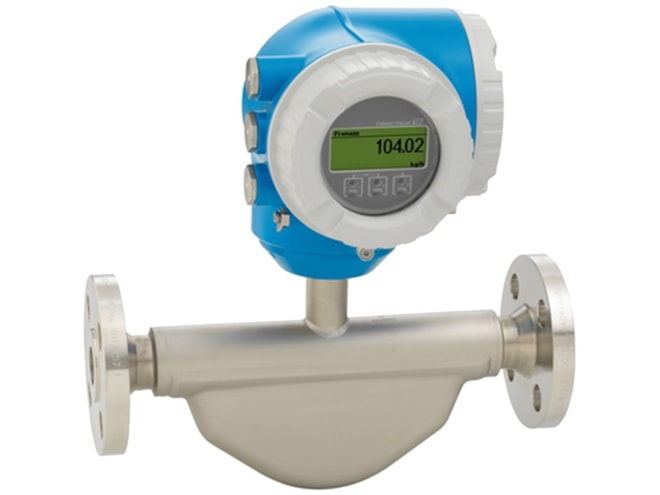

E+H Proline Promass E 300 Coriolis Flow Meter - Aluminum Housing
E+H Proline Promass E 300 Coriolis Flow Meter - Stainless Hygienic Housing

Starting at $9,346.75

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Measures flow, density and temperature
Compact dual-tube sensor
Media temperature up to 302°F (150°C)
Process pressure up to 1450 psi (100 bar)
Compact dual-compartment housing with up to 3 I/Os
Heartbeat technology
Backlit display with touch control and WLAN access
Remote display available
Configurable I/O functionality
Space saving installation

Predecessor: Promass 80E, Promass 83E

The E+H Proline Promass E 300 Coriolis Flow Meter is a cost effective solution for accurelty measuring liquids and gases in a variety of standard applications in various industries. The compact E 300 provides high flexibility in terms of operation and system integration: access from one side, remote display, improved connectivity options. Heartbeat Technology ensures compliance and process safety at all times.

Spec Sheets

E+H Proline Promass E 300 Coriolis Flow Meter Datasheet PDF (9.6 MB)

Other

Manuals

E+H Proline Promass E 300 Coriolis Flow Meter Manual PDF (8.4 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Size	Approval	Output and Input 1	Output and Input 2	Output and Input 3	Process Connection	Price	Available
8E3B50-CSIBADAFBDSBFTSAA2DC Show Full Configuration	2in, DN50	CSA C/US; Cl.I Div.2, NI	4 to 20mA HART	Configurable I/O default off	Without	Tri-Clamp, 1.4404/316L for pipe size	$17,402.03	2 in stock
8E3B15-AAIBABAFADSAAASAA2 Show Full Configuration	1/2in, DN15	Non-hazardous area	4 to 20mA HART	4 to 20mA	Without	Cl.150, 1.4404/316L, flange ASME B16.5	$11,399.87	1 in stock
8E3B25-CSIBADAFBDSCFTSAA2DC Show Full Configuration	1in, DN25	CSA C/US; Cl.I Div.2, NI	4 to 20mA HART	Configurable I/O default off	Without	Tri-Clamp, 1.4404/316L for pipe size	$16,044.45	1 in stock
8E3B25-CSINABDGADSAAASHA1 Show Full Configuration	1in, DN25	CSA C/US; Cl.I Div.2, NI	EtherNet/IP 2-port switch integrated	4 to 20mA	Configurable I/O default off	Cl.150, 1.4404/316L, flange ASME B16.5	$11,855.15	1 in stock
8E3B40-AAINADDFALSAAASAA1 Show Full Configuration	1 1/2in, DN40	Non-hazardous area	EtherNet/IP 2-port switch integrated	Configurable I/O default off	Configurable I/O default off	Cl.150, 1.4404/316L, flange ASME B16.5	$13,636.99	1 in stock
8E3B40-CDEBAEAFADSAAASAA2LA Show Full Configuration	1 1/2in, DN40	CSA C/US; Cl.I,II,III Div.1, XP, Gr.A-G	4 to 20mA HART	Pulse/freq./switch output	Without	Cl.150, 1.4404/316L, flange ASME B16.5	$14,389.31	1 in stock
8E3B40-CSIBADDGADSAAASAA2AA Show Full Configuration	1 1/2in, DN40	CSA C/US; Cl.I Div.2, NI	4 to 20mA HART	Configurable I/O default off	Configurable I/O default off	Cl.150, 1.4404/316L, flange ASME B16.5	$13,190.84	1 in stock
8E3B50-AAINADDFALSAAASAA1 Show Full Configuration	2in, DN50	Non-hazardous area	EtherNet/IP 2-port switch integrated	Configurable I/O default off	Configurable I/O default off	Cl.150, 1.4404/316L, flange ASME B16.5	$14,861.47	1 in stock
8E3B50-CSIBADAFBDSCFTSAA2DC Show Full Configuration	2in, DN50	CSA C/US; Cl.I Div.2, NI	4 to 20mA HART	Configurable I/O default off	Without	Tri-Clamp, 1.4404/316L for pipe size	$18,648.35	1 in stock

Base Price:: $9,346.75
Size: 2in, DN50 (+$3,054.68)
Approval: CSA C/US; Cl.I Div.2, NI
Power Supply: 100 to 230 VAC / 24 VDC
Output and Input 1: 4 to 20mA HART
Output and Input 2: Configurable I/O default off (+$128.25)
Output and Input 3: Without
Display Operation: 4-line illum.; touch control (+$451.59)
Housing: Stainless hygienic (+$611.57)
Electrical Connection: Thread NPT1/2
Measuring Tube Material and Wetted Parts: Stainless steel, 0.8um and 32u-in mechanical polished (+$1,408.90)
Process Connection: Tri-Clamp, 1.4404/316L for pipe size (+$1,210.20)
Calibration Flow: 0.10% Mass (+$1,090.91)
Device Model: 2
Language: None (English standard)
Sensor Options: Without
Customized Parameterization: Output 1, liquid (+$99.18)
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging: Without
Bus Address: Without

Reconfigure

Base Price:: $9,346.75
Size: 1/2in, DN15 (+$425.32)
Approval: Non-hazardous area
Power Supply: 100 to 230 VAC / 24 VDC
Output and Input 1: 4 to 20mA HART
Output and Input 2: 4 to 20mA (+$85.30)
Output and Input 3: Without
Display Operation: 4-line illum.; touch control (+$451.59)
Housing: Aluminum coated
Electrical Connection: Thread NPT1/2
Measuring Tube Material and Wetted Parts: Stainless steel and not polished
Process Connection: Cl.150, 1.4404/316L, flange ASME B16.5
Calibration Flow: 0.10% Mass (+$1,090.91)
Device Model: 2
Language: None (English standard)
Sensor Options: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging: Without
Bus Address: Without

Reconfigure

Base Price:: $9,346.75
Size: 1in, DN25 (+$1,069.80)
Approval: CSA C/US; Cl.I Div.2, NI
Power Supply: 100 to 230 VAC / 24 VDC
Output and Input 1: 4 to 20mA HART
Output and Input 2: Configurable I/O default off (+$128.25)
Output and Input 3: Without
Display Operation: 4-line illum.; touch control (+$451.59)
Housing: Stainless hygienic (+$611.57)
Electrical Connection: Thread NPT1/2
Measuring Tube Material and Wetted Parts: Stainless steel, 0.4um and 16u-in mechanical polished (+$2,230.00)
Process Connection: Tri-Clamp, 1.4404/316L for pipe size (+$1,016.40)
Calibration Flow: 0.10% Mass (+$1,090.91)
Device Model: 2
Language: None (English standard)
Sensor Options: Without
Customized Parameterization: Output 1, liquid (+$99.18)
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging: Without
Bus Address: Without

Reconfigure

Base Price:: $9,346.75
Size: 1in, DN25 (+$1,069.80)
Approval: CSA C/US; Cl.I Div.2, NI
Power Supply: 100 to 230 VAC / 24 VDC
Output and Input 1: EtherNet/IP 2-port switch integrated (+$429.73)
Output and Input 2: 4 to 20mA (+$85.30)
Output and Input 3: Configurable I/O default off (+$128.25)
Display Operation: 4-line illum.; touch control + WLAN (+$666.48)
Housing: Aluminum coated
Electrical Connection: Thread NPT1/2
Measuring Tube Material and Wetted Parts: Stainless steel and not polished
Process Connection: Cl.150, 1.4404/316L, flange ASME B16.5
Calibration Flow: 0.15% mass
Device Model: 1 (+$128.84)
Language: None (English standard)
Sensor Options: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging: Without
Bus Address: Without

Reconfigure

Base Price:: $9,346.75
Size: 1 1/2in, DN40 (+$1,830.20)
Approval: Non-hazardous area
Power Supply: 100 to 230 VAC / 24 VDC
Output and Input 1: EtherNet/IP 2-port switch integrated (+$429.73)
Output and Input 2: Configurable I/O default off (+$128.25)
Output and Input 3: Configurable I/O default off (+$128.25)
Display Operation: 4-line illum.; touch control (+$451.59)
Housing: Aluminum coated
Electrical Connection: Thread NPT1/2 + 1x plug M12x1 (+$102.47)
Measuring Tube Material and Wetted Parts: Stainless steel and not polished
Process Connection: Cl.150, 1.4404/316L, flange ASME B16.5
Calibration Flow: 0.10% Mass (+$1,090.91)
Device Model: 1 (+$128.84)
Language: None (English standard)
Sensor Options: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging: Without
Bus Address: Without

Reconfigure

Base Price:: $9,346.75
Size: 1 1/2in, DN40 (+$1,830.20)
Approval: CSA C/US; Cl.I,II,III Div.1, XP, Gr.A-G (+$1,421.50)
Power Supply: 100 to 230 VAC
Output and Input 1: 4 to 20mA HART
Output and Input 2: Pulse/freq./switch output (+$85.30)
Output and Input 3: Without
Display Operation: 4-line illum.; touch control (+$451.59)
Housing: Aluminum coated
Electrical Connection: Thread NPT1/2
Measuring Tube Material and Wetted Parts: Stainless steel and not polished
Process Connection: Cl.150, 1.4404/316L, flange ASME B16.5
Calibration Flow: 0.10% Mass (+$1,090.91)
Device Model: 2
Language: None (English standard)
Sensor Options: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: SIL (+$163.06)
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging: Without
Bus Address: Without

Reconfigure

Base Price:: $9,346.75
Size: 1 1/2in, DN40 (+$1,830.20)
Approval: CSA C/US; Cl.I Div.2, NI
Power Supply: 100 to 230 VAC / 24 VDC
Output and Input 1: 4 to 20mA HART
Output and Input 2: Configurable I/O default off (+$128.25)
Output and Input 3: Configurable I/O default off (+$128.25)
Display Operation: 4-line illum.; touch control + WLAN (+$666.48)
Housing: Aluminum coated
Electrical Connection: Thread NPT1/2
Measuring Tube Material and Wetted Parts: Stainless steel and not polished
Process Connection: Cl.150, 1.4404/316L, flange ASME B16.5
Calibration Flow: 0.10% Mass (+$1,090.91)
Device Model: 2
Language: English
Sensor Options: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging: Without
Bus Address: Without

Reconfigure

Base Price:: $9,346.75
Size: 2in, DN50 (+$3,054.68)
Approval: Non-hazardous area
Power Supply: 100 to 230 VAC / 24 VDC
Output and Input 1: EtherNet/IP 2-port switch integrated (+$429.73)
Output and Input 2: Configurable I/O default off (+$128.25)
Output and Input 3: Configurable I/O default off (+$128.25)
Display Operation: 4-line illum.; touch control (+$451.59)
Housing: Aluminum coated
Electrical Connection: Thread NPT1/2 + 1x plug M12x1 (+$102.47)
Measuring Tube Material and Wetted Parts: Stainless steel and not polished
Process Connection: Cl.150, 1.4404/316L, flange ASME B16.5
Calibration Flow: 0.10% Mass (+$1,090.91)
Device Model: 1 (+$128.84)
Language: None (English standard)
Sensor Options: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging: Without
Bus Address: Without

Reconfigure

Base Price:: $9,346.75
Size: 2in, DN50 (+$3,054.68)
Approval: CSA C/US; Cl.I Div.2, NI
Power Supply: 100 to 230 VAC / 24 VDC
Output and Input 1: 4 to 20mA HART
Output and Input 2: Configurable I/O default off (+$128.25)
Output and Input 3: Without
Display Operation: 4-line illum.; touch control (+$451.59)
Housing: Stainless hygienic (+$611.57)
Electrical Connection: Thread NPT1/2
Measuring Tube Material and Wetted Parts: Stainless steel, 0.4um and 16u-in mechanical polished (+$2,655.22)
Process Connection: Tri-Clamp, 1.4404/316L for pipe size (+$1,210.20)
Calibration Flow: 0.10% Mass (+$1,090.91)
Device Model: 2
Language: None (English standard)
Sensor Options: Without
Customized Parameterization: Output 1, liquid (+$99.18)
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging: Without
Bus Address: Without

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
8E3B80-CDDNAAAFADSA999HA1JA	Call for information	1	Call to order
8E3B15-CDEBAEHFADSAAASAA1EL	Call for information	5	Call to order
8E3B25-CDEBAEHFADSAAASAA1EL	Call for information	5	Call to order
8E3B50-CDDBAEAGADSAAASAA1DCEB	Call for information	2	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
