E+H Easytemp TMR31 Compact RTD Thermometer and Transmitter

Name: E+H Easytemp TMR31 Compact RTD Thermometer and Transmitter
Price: 142.02 USD
Availability: InStock

Compact, fast and precise, measures temperatures from -58 to 302°F (-50 to 150°C).

Starting at $142.02

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Specs

Features

Stainless steel design
Up to 600,00 mm (23,62in) immersion length
Short response times
4-wire, Pt100 or PC-programmable transmitter
Configuration and visualization with ReadWin 2000 PC
Marine approval
1.4404 (316L) material protection tube

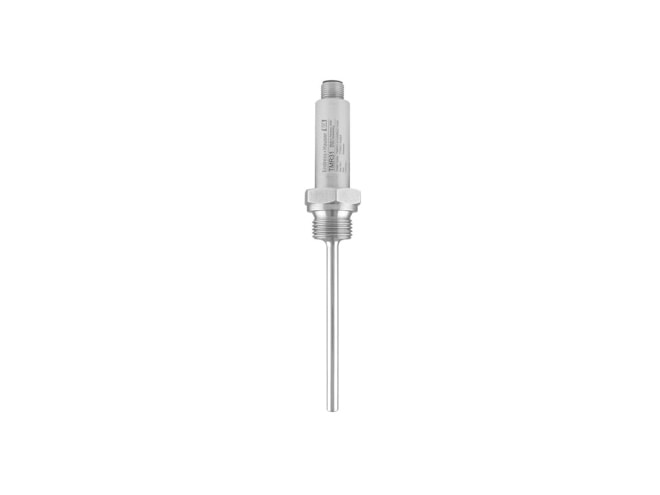

The E+H Easytemp TMR31 Compact RTD Thermometer and Transmitter fulfills the requirements of modern process measurement technology. Vibration-proof integrated thin-film sensors guarantee highest operational safety at the fastest response times. The TMR31 is compact and made entirely of stainless steel. Configuration and visualization are done with ReadWin 2000 PC operating software, which is free of charge.

The Easytemp TMR31 compact thermometers are used to measure temperatures from -58 to 302°F (-50 to 150°C), or up to 392°F (200°C) with neck. The most common installation locations are tanks and pipes.

Spec Sheets

E+H Easytemp TMR31 Compact RTD Thermometer and Transmitter Datasheet PDF (907 KB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+H 51005148 Connecting Cable

Pre-assembled, 5-meter cable with molded M12x1 PVC angled housing connector, IP67.

$18.18

Accessories

Please consider these optional accessories.

E+H 51006327 Coupling Plug

Coupling M12x1 for simple user-installable assembly of the connecting cable, elbowed, connection to M12x1 connector IP67, PG7.

$27.49

E+H 71217708 Cordset

PVC 5-meter cable with M12x1 connector and coupling nut in stainless steel, straight female connector, IP69K.

$46.02

E+H TXU10-BA Configuration Kit

Configuration kit for PC-programmable transmitters; ReadWin 2000 setup program and cable for USB port, with M12x1 adapter.

$224.56

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
TMR31-A1AAAAAA1AAA 30mm	Call for information	4	Call to order
TMR31-A1BAACAC1AAA 100mm	Call for information	2	Call to order
TMR31-A1DBBAAX1AAA 245mm	Call for information	2	Call to order
TMR31-A1XAACAE1AAA 150mm	Call for information	1	Call to order
TMR31-A1AAACAX1AAA 40mm	Call for information	2	Call to order
TMR31-A1BBABAB1AAA 50mm	Call for information	7	Call to order
TMR31-A1BBACAA1AAA 30mm	Call for information	6	Call to order
TMR31-A1BBACAB1AAA 50mm	Call for information	2	Call to order
TMR31-A1DABBAX1AAA 40mm	Call for information	1	Call to order
TMR31-U1DAABAB1AAA 50mm	Call for information	2	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
