Fisher R632 Integral Two-Stage Regulators

Combines a first-stage and second-stage regulator into one compact unit for residential LP-gas systems up to 950,000 BTU/hr.

Fisher R632A Integral Two-Stage Regulator with NPT Inlet

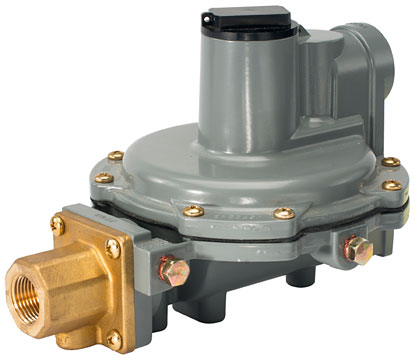

Fisher R632A Integral Two-Stage Regulator with POL Inlet

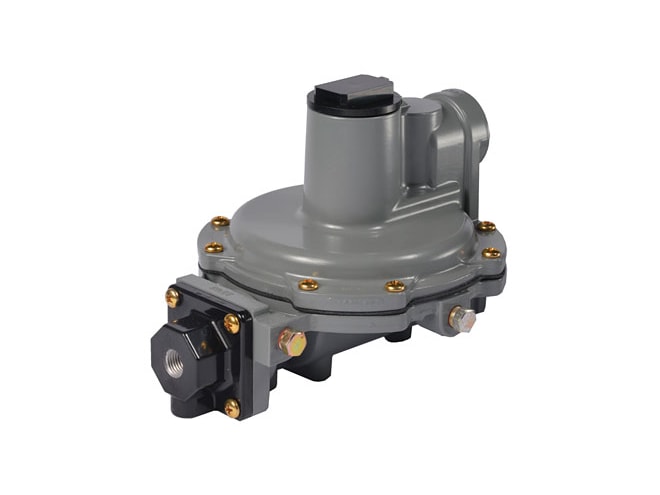

Fisher R632E Integral Two-Stage Regulator with NPT Inlet
Fisher R632E Integral Two-Stage Regulator with POL Inlet

Starting at $200.00 Starting at $110.00

View Company Reviews

Manufactured

By Fisher

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs (2 Files)

Features

250 psig (17.2 bar) maximum inlet pressure
R632A for low pressure inches water column outlet
R632E for 2 psi outlet pressures
Propane flow capacities up to 950,000 BTU/hr
1/4in female NPT or female POL inlet
1/2 or 3/4in female NPT outlet
7/16-24 inverted flare 1st-stage vent
3/4in NPT screened 2nd-stage vent
-20 to 160°F (-29 to 71°C) operating temperature
20-year recommended replacement life
UL listed & CRN certified

The Fisher R632 integral two-stage regulators contain a non-adjustable first-stage regulator on the inlet, and choice of second-stage outlet range for small domestic loads. The combination of a high capacity relief valve and large vent provide overpressure protection which exceeds UL standards. The compact size of this unit makes it ideal for tight fit applications and installations where piping distance is short.

Fisher equipment must be installed, operated and maintained in accordance with Federal, state, and local codes and Fisher instructions. Only personnel trained in the proper procedures, codes, standards and regulations of the LP-gas industry should install and service this equipment.

Spec Sheets

Other

Manuals

Fisher R632 Integral Two-Stage Regulators Manual PDF (536 KB)

Links

All possible part numbers

Part Number	Price	Available
R632A-BCF Show Configuration	$110.00	7 in stock
R632A-CFF Show Configuration	$110.00	3 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4 weeks". Click here to select options
