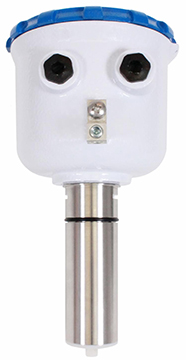

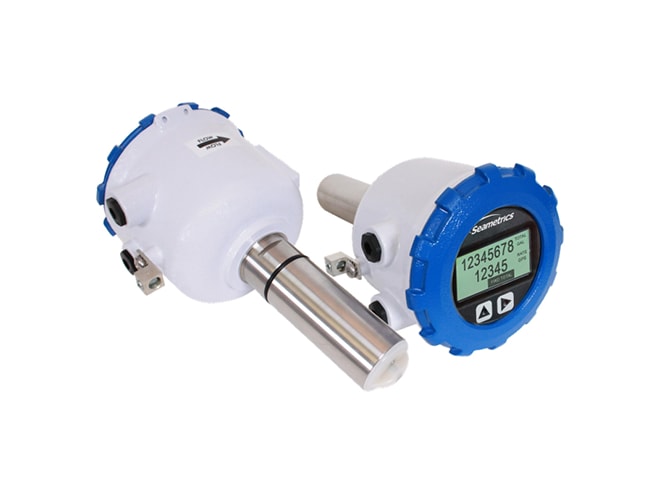

Seametrics EX90 Electromagnetic Insertion Flow Sensor

Battery powered meter, with no moving parts, for use with conductive fluids in 4 to 12 inch pipes including corrosive or dirty environments.

Starting at $1,789.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 7-9 weeks
Product Manual Product Specs

Features

  • No moving parts
  • Easy to install & maintain
  • User-scalable pulse rate
    • From 0.1 to 99,999.9 volume units/pulse
  • Battery powered
    • Replaceable 7.2V ‘D’ size battery pack
  • Pulse Output Standard
  • Rate & total indicator
  • 4 to 12 in. pipe sizes
  • 32˚ to 200˚F (0˚ to 93˚C) fluid temperature
  • Accuracy:
    • ±2% of rdg (0.5 to 4.5 m/s)
    • ±(2% of rdg + 0.25 of FS) (0.3 to 0.5 m/sec)
  • IP67 environmental rating
  • Certified to NSF/ANSI standard 61 and NSF 372 (Stainless only with EPDM O-ring. Viton pending)

The Seametrics EX90 Series electromagnetic insertion flow sensor is battery powered and features no moving parts, making it easy to install and maintain. Additionally, this makes the EX90 Series an ideal fit for corrosive and dirty applications such as municipal and wastewater treatment, reuse and reclaim water, and cooling and pump towers. The ability to measure bidirectional flow, a pulse scaled output and optional built-in datalogger are other features of the EX90 Series.

Designed to fit pipe sizes from 4 to 12 inches, the Seametrics EX90 Series electromagnetic insertion flow sensor can withstand up to 200 psi (14 bar) and measure flow rates between 0.3 to 4.5 m/sec (1.64 to 14.8 ft/sec). Readings taken from 0.5 to 4.5 m/sec are done with a ±2% of reading accuracy, while a ±(2% of reading + 0.25% of full scale) accuracy is specified for flow rates from 0.3 to 0.5 m/sec.

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Seametrics DC4-USB Data Logger Download Cable
Seametrics DC4-USB Data Logger Download Cable

Data logger download cable, IP68. For iMAG4700 and EX90 meters manufactured before July 2020.

$243.00

Batteries/Chargers

Seametrics 103971 Replacement Battery
Seametrics 103971 Replacement Battery

Spare 2-D cell lithium battery pack that includes o-ring, security seal and desiccant to ensure proper meter maintenance for iMAG4700.

$149.00

Accessories

Please consider these optional accessories.

Seametrics 103709-01 Display Cover Kit
Seametrics 103709-01 Display Cover Kit

White display cover kit for use with EX90 Series electromagnetic insertion flow sensor.

$43.00
Seametrics DC5-USB Data Logger Download Cable
Seametrics DC5-USB Data Logger Download Cable

Data logger download cable, IP68. For iMAG4700 and EX90 meters manufactured after June 2020.

$235.00
