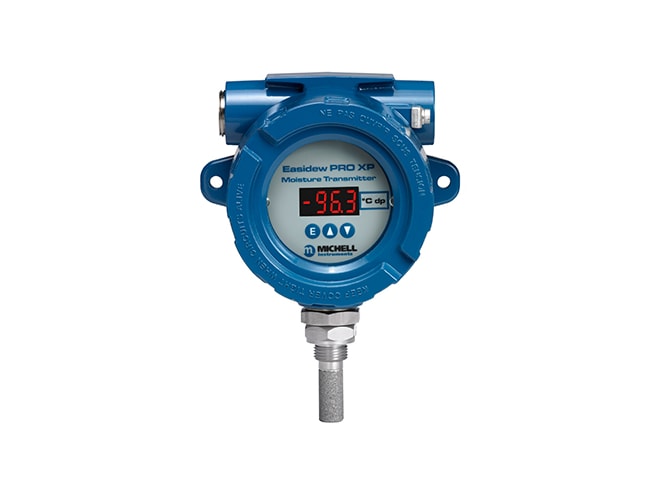

Michell Instruments Easidew Pro XP Dew Point Transmitter

Explosion proof dew point transmitter for gases or liquids with up to ±1.8°Fdp (±1°Cdp) accuracy & a 2-wire 4 to 20mA output.

Starting at $3,570.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 4-6 weeks
Product Manual Product Specs

Features

  • IECEx, CSA, INMETRO, ATEX, TC TR EX certified
  • -166 to +68°Fdp (-110 to +20°Cdp) gas measuring range
  • 0 to 1,000 ppmW liquid measuring range
  • Up to ±1.8°Fdp (±1°Cdp) accuracy
  • 2-wire 4-20 mA output
  • 45 MPa (450 barg) pressure rating
  • 3/4 inch UNF process connection
  • Electronics conformal coating
  • Oxygen service cleaned
  • IP66 (NEMA 4) rating
  • EN 10204 3.1 material certification

What's in the Box

  • Traceable 13 point calibration certificate

The Michell Instruments Easidew Pro XP dew point transmitter offers up to ±1.8°Fdp (±1°Cdp) moisture measurement, from -166 to +68°Fdp (-110 to +20°Cdp) in gases or 0 to 1,000 ppmW in liquids, in an explosion proof, aluminum or 316 stainless steel housing. Explosion and flameproof certifications include ATEX, IECEx, cCSAus, INMETRO and TC TR EX approvals. An optional display can be added to include a programmable meter range, decimal point, overload limits and meter scales.

Featuring an industry standard 3/4 inch UNF process connection, the Michell Instruments Easidew Pro XP dew point transmitter also offers a 2-wire 4 to 20mA user-configurable output. A standard flow rate of 0 to 10m/sec is achieved via direct insertion of the Easidew Pro XP or an optional sampling block can be added for a flow rate of 1 to 5 Nl/min. Each Michell Instruments Easidew Pro is cleaned for enriched oxygen and includes an EN 10204 3.1 material certification. The maximum operating pressure range for the Easidew Pro XP is 45 MPa (450 barg).

Mounting Bracket

Michell Instruments Pipe Mounting Bracket
Michell Instruments Pipe Mounting Bracket

Pipe mounting bracket for use with Easidew Pro XP dew point transmitter.

$85.00

Accessories

Please consider these optional accessories.

Michell Instruments SSG Replacement Guard
Michell Instruments SSG Replacement Guard

Stainless steel sintered replacement guard to protect Easidew transmitters from fine particulate < 80µm.

In Stock
$52.00
Michell Instruments APT-003 Adapter for Easidew Pro XP
Michell Instruments APT-003 Adapter for Easidew Pro XP

3/4-inch MNPT to 3/4-inch-16 UNF stainless steel male adapter for use with Easidew Pro XP dew point transmitter.

$79.00
Michell Instruments Particulate Filter Cartridges
Michell Instruments Particulate Filter Cartridges

Pack of 10 cartridges for protection against fine particulate < 0.1µm for use with Easidew transmitters.

$203.00
Michell Instruments Easidew SB-34 Sampling Block
Michell Instruments Easidew SB-34 Sampling Block

3/4-inch stainless steel sampling block with filter with 1/8-inch NPT inlet and outlet ports.

In Stock
$108.00
Michell Instruments Display Module Kit
Michell Instruments Display Module Kit

Replacement display module kit for Easidew Pro XP dew point transmitter.

$539.00
Michell Instruments O-Ring
Michell Instruments O-Ring

3/4-inch o-ring for process connection, pack of 5.

$23.00
Michell Instruments Universal Communications Kit
Michell Instruments Universal Communications Kit

Universal communications kit with three cables for Easidew and Pura transmitters.

In Stock
$1,015.00
Michell Instruments Sensor Exchange for Easidew Pro XP Dew Point Transmitter
Michell Instruments Sensor Exchange for Easidew Pro XP Dew Point Transmitter

Program for ordering replacement sensor before recalibration is due; replacement typically shipped within 3-4 weeks.

Starting at $3,570.00
Michell Instruments ES70 Gas Sampling System
Michell Instruments ES70 Gas Sampling System

Measurement of trace moisture in gases sampling system.

Starting at $5,585.00
Michell Instruments ES20 Sampling System
Michell Instruments ES20 Sampling System

Reliably and accurately measure dew point or moisture content in a wide variety of industrial gas applications up to 20 barg.

Starting at $4,499.00
Michell Instruments Easidew Sampler
Michell Instruments Easidew Sampler

Self-contained, general purpose sampling system designed for atmospheric or dew point pressure measurements.

Starting at $866.00

Here's how some of our customers use this product...

Detecting Trace Moisture in LDPE & HDPE Production

The Background: Our customer is a plastics manufacturer that needs a highly accurate, explosion-proof inline transmitter with display that can detect trace levels of moisture at high pressures. They also needed several of them with a short lead time.

The Problem: The customer produces LDPE and HDPE which are used in many consumer product including bags, piping, molded part, bottles and many others. The process of making these plastics involves combining ethylene, a by-product of petrochemical processing, with catalysts under high pressure and temperature. The catalysts used in the production are highly sensitive to moisture and the maximum allowable moisture level in some processes is 1 ppmv.

The Solution: We recommended the Michell Instruments Easidew Pro XP Dew Point Transmitter which offers up to ±1.8°Fdp (±1°Cdp) moisture measurement, from -166 to +68°Fdp (-110 to +20°Cdp) in gases or 0 to 1,000 ppmW in liquids, with a 45 MPa (450 barg) pressure rating, in an explosion proof, aluminum or 316 stainless steel housing. This satisfied all the application requirements.
