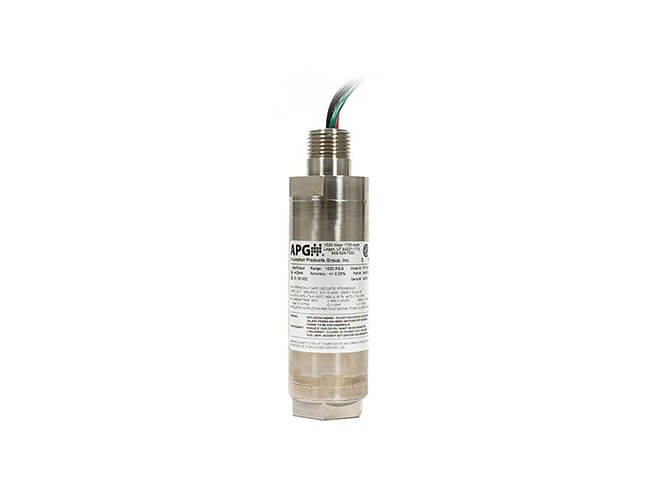

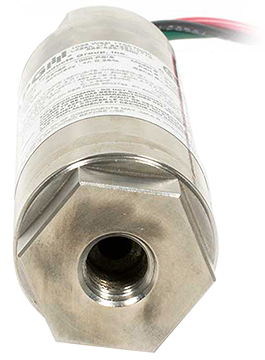

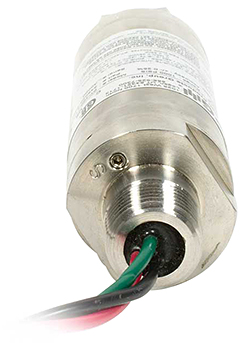

APG PT-405 Pressure Transducer

Built for heavy-duty applications including high pressures, hazardous locations, high vibration, and extended temperature compensation.

Starting at $504.65

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Manual Product Specs

Features

  • -15 to 30,000 psi pressure ranges
  • ±0.25% of full scale (BFSL) accuracy
    with linearity and hysteresis
  • 17-4 / 316L: <±0.5% FS stability - one year zero drift
  • 1.5x full scale overpressure
  • Up to 3x full scale or limit of process connection
    burst pressure
  • Less than 5ms frequency response

The APG PT-405 pressure transducer is built to survive in harsh industrial conditions, and offers high accuracy and reliability over a wide range of pressures. The integrated electronics, wide operating temperature range, and durability make the PT-405 the perfect instrument for static and dynamic pressure measurements with an amplified output signal.

The PT-405 is certified explosion proof for hazardous areas in the US and Canada by CSA for Class 1, Division 1 environments, and has single-seal construction for the highest safety factor.

With Modbus output, the PT-405 can be monitored or controlled online through Tank Cloud, APG's online remote monitoring software.
