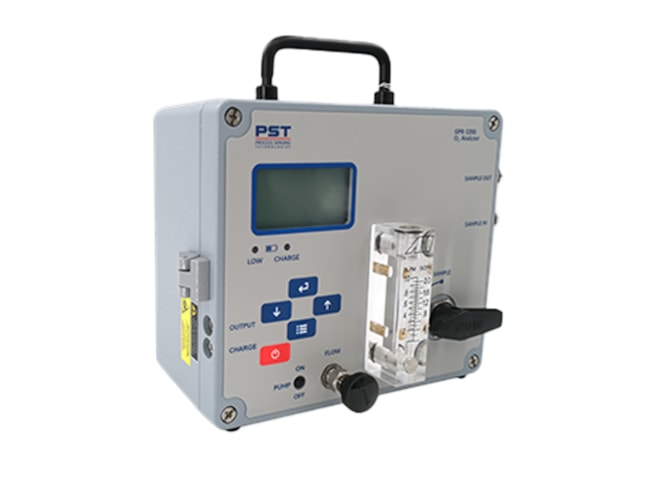

AII GPR-1200 Oxygen Analyzer

Name: AII GPR-1200 Oxygen Analyzer
Price: 4915.0 USD
Availability: BackOrder

Designed for applications where trace oxygen or gas purity must be controlled at defined points.

Starting at $4,915.00

View Company Reviews

Manufactured

By Analytical Industries Inc (AII)

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 10-12 weeks

Product Manual Product Specs

Features

Measuring range: 0-10, 0-100, 0-1000 ppm, 0-1% 0-25%
24-32 months sensor life span (in normal use)
Accuracy of better than 2% of range
Up to 30 days battery life
Internal pump option
0 to 1V output
XLT sensor options for CO2 backgrounds
Rugged industrial enclosures

The AII GPR-1200 oxygen analyzer is designed for applications where trace oxygen or gas purity must be controlled at defined measurement points using advanced high accuracy instruments. The GPR-1200 compact portable oxygen analyzer features a 4-way valve that allows a gas sample to be trapped in the sensor for faster oxygen measurement times when moving from point to point. This feature also effectively helps to protect trace oxygen sensors from premature depletion due to exposure to ambient oxygen levels. Longer sensor life-times allow very economical operation and low cost of ownership for this market leading portable oxygen analyzer range.

The GPR-1200 ATEX is a standard low ppm portable oxygen analyzer offers a range of 0-10 ppm and an LDL of 50 ppb O2, with the option of the XLT sensor for measuring in CO2 backgrounds, and an internal sample pump. ATEX approved version available.

Applications for the GPR-1200 analyzer includes:

Servicing oxygen and nitrogen generators
Spot checks of oxygen in tankers during delivery
Semi-conductor pipeline validation
Headspace checks in fermenters and brew tanks
Leak checking processes

Spec Sheets

AII GPR-1200 Oxygen Analyzer Datasheet (1.3 MB)

Manuals

Other

Links

AII XLT-12-333 Oxygen Sensor

Replacement sensor for CO2 backgrounds for use with GPR-1100, GPR-1200, GPR-1500, GPR-1600 and GPR-1900 oxygen analyzers.

$280.00

AII GPR-12-2000-MS2 Oxygen Sensor

Standard replacement sensor for the AII GPR-1200 and PI2 oxygen analyzers.

$445.00

AII GPR-12-333 PPM Oxygen Sensor

Measures 0-10 PPM O2 in a gas mixture for use with GPR-1100, GPR-1200, GPR-1500, GPR-1600, GPR-1800 and GPR-1900 oxygen analyzers.

$345.00

Here's how some of our customers use this product...

Detecting Trace Oxygen in Gas Pipelines

The Background: Our customer is a natural gas producer seeking an accurate and reliable means of measuring the levels of oxygen in natural gas before the gas is transported in pipelines.

The Problem: Keeping oxygen out of natural gas pipelines is important as it not only degrade the quality of the gas but it can also combine with elements in the gas and cause corrosion inside the pipeline which can lead to failure. Oxygen levels above 5ppm are generally not tolerated. Higher amounts lead to abandoning the stream.

The Solution: We recommended the AII GPR-1200 oxygen analyzer with an Explosion-proof rating and ppm sensor for acid backgrounds. This portable unit is designed for applications where trace oxygen or gas purity must be controlled at defined measurement points using advanced high accuracy instruments.
