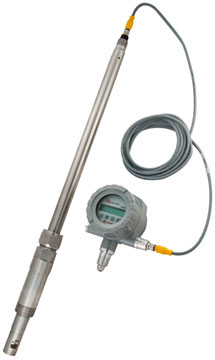

Badger Meter VN2000 Vortex Flow Meter

Measures the volumetric flow, mass flow rate, or BTU/energy of steam, gas, or liquids with direct insertion or hot tap models.

Starting at $3,159.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Manual Product Specs (2 Files)

Features

  • Compact direct insertion for pipes up to 24in
    • Or hot tap insertion for pipes up to 36in
  • ±1% of reading accuracy
  • ±0.25% of reading repeatability
  • 1.32 to 32ft/s (0.402 to 9m/s) liquid velocity
  • Cube root (140/ρ) ft/s to 300ft/s (91m/s) gas velocity
  • 10,000 to 7,000,000 Reynolds range
  • Up to 1000 psi (68.9 bar) max pressure
  • 3-wire, 100 Ohm RTD embedded in sensor
  • -250 to 400°F (-120 to 204°C) process temp range

The Badger Meter VN2000 vortex flow meter uses dual piezoelectric sensors and an embedded RTD sensor that never touch the process fluid, resulting in a very long life span.

The sensing element is CNC machined out of one solid piece of stainless steel and engineered to stand up to abusive environments inside and outside the pipe. The dual ceramic piezoelectric sensors are bonded inside the vortex element, which is press-fit to the stainless steel insertion bar and completely welded together. There are no internal o-rings or seals of any kind and absolutely no leak paths into the sensors or electronics.

Within the flow meter, as fluid moves across the tiny strut or "shedder bar", vortices are shed on a smaller scale. The frequency of the vortices shedding is proportional to the fluid velocity. Through the use of an internal RTD, the flow meter software compensates for changes in temperature to achieve an accurate mass flow measurement.

Download the meter sizing software to determine the precise scaling factor for your application based on fluid type, min/max operating flow rate, temperature, and pressure.

This product can be used in the following applications:
