Name: Ashcroft PL02 Pressure Limiting Valve
Price: 319.24 USD
Availability: BackOrder

Starting at $319.24

View Company Reviews

Manufactured

By Ashcroft

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 3-4 weeks

Product Specs

Features

Isolates and protects instrument
316Ti stainless steel construction
Auto reset after 25% drop from set point
Available set point from 6 psi to 8700 psi
Built in pressure snubbing design
1/2 NPTM, 1/4 NPTM Process connections
14,500 psi max pressure

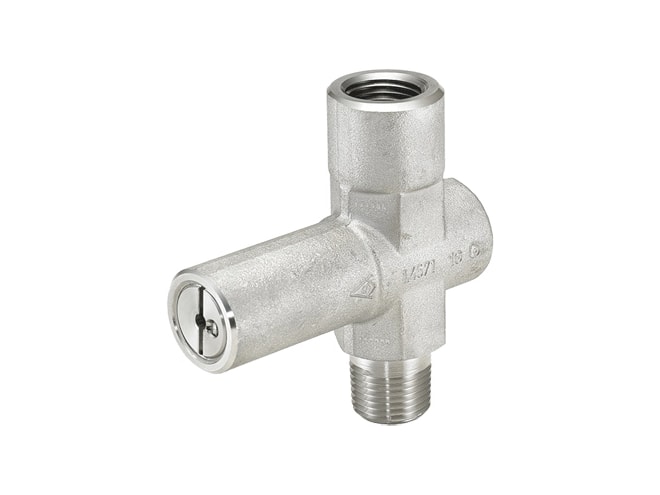

The Ashcroft PL02 Pressure Limiting Valve automatically closes when set pressure is realized. When the valve closes, the instrument assembly is isolated and protected during pressure excursion beyond the full scale range of the instrument.

Applications for the PL02 Pressure Limiting Valve include:

Oil & gas
Chemical
Power plants

Spec Sheets

Ashcroft PL02 Pressure Limiting Valve Datasheet PDF (824 KB)
