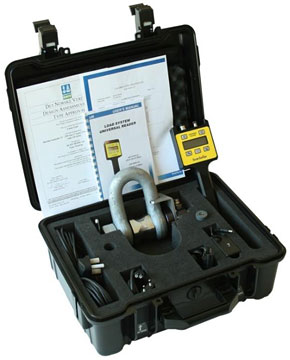

ScanSense LS-3110-PLW Shackle Load Cell Kit

Full bridge strain gauge with rated load output signal for ranges from 12 to 120 tons, Ex ia IIC T5 ATEX, handheld display, and cable.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • Integrated 2-wire signal amplifier, 4 to 20mA
  • Stainless steel (IP67)
  • < 0.15% of full scale non-linearity error
  • < 0.60% of full scale hysteresis error
  • ±0.1% repeatability
  • Easy to install and maintain
  • 12 to 28VDC with protected polarity reversal
  • Designed for harsh environments
    • Offshore
    • Marine & harbor
    • Hoisting & cranes security
    • Hoisting gear, elevators, & winches

What's in the Box

  • Shackle load cell
  • Universal reader
  • Carrying case
  • Spare battery
  • Charger (90 to 260 VAC)
  • 19.7ft (6m) cable
  • Manual
  • Calibration certificate

The ScanSense LS-3110-PLW Shackle Load Cell Kit is made with stainless steel (IP67) and features a integrated 2-wire signal amplifier. The sensor is designed to withstand harsh environments. The electronics provide power supply regulation, reverse polarity and over voltage protection.
