NOSHOK 611 Series Level Transmitters

Small diameter submersible pressure transducers with optional temperature output for hydrostatic level measurement including bore holes and wells up to 325ft depth .

NOSHOK 611 Series Level Transmitters

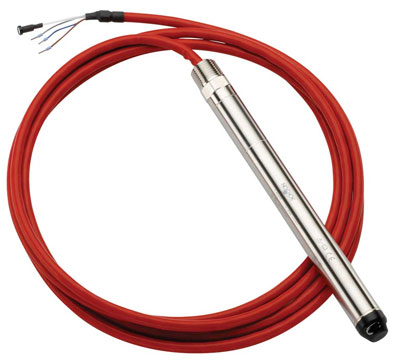

NOSHOK 611 Series Level Transmitter with NPT Fitting and FEP Cable

Starting at $1,298.69

View Company Reviews

Manufactured

By NOSHOK

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

0.87in (22.1mm) outer diameter
Up to 100 psi (230.8 ftH2O) pressure ranges
Optional temperature output
Low power output signals, can be battery-powered
5:1 turndown using optional HART signal
CE compliant to suppress RFI, EMI and ESD
IP68 environmental rating
Pending ATEX, CSA, & IECex certifications
3-year warranty

The NOSHOK 611 series level transmitters measure depth by converting the amount of pressure on a diaphragm into an electrical signal. An optional HART output is available for communicating with a controller. Temperature measurement is also an option via a second output signal. These submersible transmitters are used for the following applications:

Well head measurement
Groundwater monitoring
Level measurement in open bodies of water
Sewage lift and pumping stations
Setting ponds and rainwater basins

Manufacturer Stock

Items from manufacturer stock generally ship in 5-7 business days. Expedited shipping is available.

Part Number	Price	Available
611-10-1-43-N-75 Show Configuration	$1,782.67	5 in stock
611-100inH2O-1-43-N-50 Show Configuration	$1,696.06	5 in stock
611-15-1-43-N-75 Show Configuration	$1,782.67	5 in stock
611-5-1-43-N-50 Show Configuration	$1,696.06	5 in stock
611-50inH2O-1-43-N-50 Show Configuration	$1,696.06	5 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
