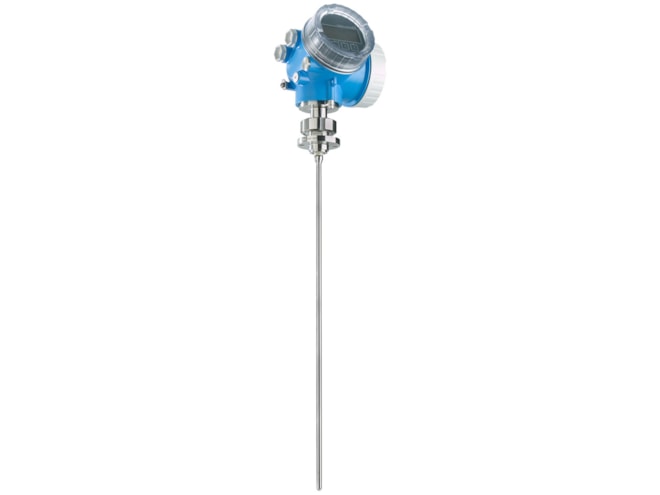

E+H Levelflex FMP53 Guided Wave Radar Level Transmitter
Continuous level measurement for the highest hygiene requirements in the food and life sciences industries.
- By Endress+Hauser
- Made in the USA
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- -4 to 302°F (-20 to 150°C) process temperature
- -14.5 to 232 psi (-1 to 16 bar) process pressure
- 20ft (6m) maximum measuring range
- ±0.08in (±2mm) accuracy
- International explosion protection certificates
- 3-point and 5-point linearity protocol
Description
The E+H Levelflex FMP53 guided wave radar level transmitter is designed for continuous level measurement for hygienically sensitive applications in the food and life sciences industries. The FMP53 meets the hygiene requirements according to ASME BPE and USP Class VI. The FMP53 features unique in-situ validation without dismantling from the process, and offers maximum reliability even in case of a turbulent liquid or foam surface, changing media or filling via spray head.
The Levelflex FMP53 offers HistoROM data management for fast and easy commissioning, maintenance and diagnostics, and Heartbeat technology for cost-effective and safe plant operation during the entire life cycle.
Documents
Accessories
In Stock
Additional Part Numbers
These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.
| Part Number | Price | Available | |
|---|---|---|---|
| FMP53-AAACCDDBB5TDJMBNF 32.00inch | Call for information | 2 | Call to order |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
