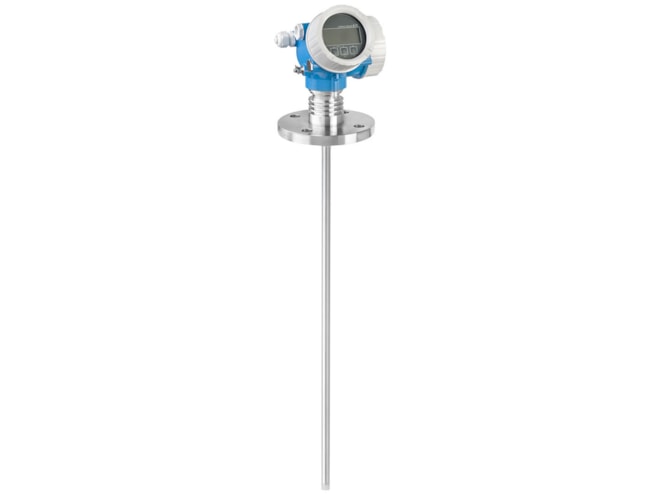

E+H Levelflex FMP52 Guided Wave Radar Level Transmitter

Name: E+H Levelflex FMP52 Guided Wave Radar Level Transmitter
Price: 4302.69 USD
Availability: InStock

PFA-coated probe for use in aggressive liquids.

Starting at $4,302.69

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Rod or rope probe
-58 to 392°F (-50 to 200°C) process temperature
-14.5 to 580 psi (-1 to 40 bar) process pressure
Maximum measuring distance:
- Rod 13ft (4m)
- Rope 148ft (45m)
±0.08in (±2mm) accuracy
5-point linearity protocol
Heartbeat technology
Bluetooth wireless technology

The E+H Levelflex FMP52 guided wave radar level transmitter features a chemically resistant, gap-free, PFA-coated probe, and is designed for level measurement in aggressive liquids. All wetted parts are FDA-listed materials. The FMP52 offers maximum reliability even with a turbulent liquid surface. The FMP52 is used for continuous level measurement of liquids, pastes and slurries, but also for interface measurement. The measurement is not affected by changing media or temperature, gas blankets or vapors.

The Levelflex FMP52 offers HistoROM data management for fast and easy commissioning, maintenance and diagnostics, and Heartbeat technology for cost-effective and safe plant operation during the entire life cycle.

Spec Sheets

E+H Levelflex FMP52 Guided Wave Radar Level Transmitter Datasheet PDF (4.6 MB)

Manuals

E+H Levelflex FMP52 Guided Wave Radar Level Transmitter Manual PDF (5.1 MB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+H FHX50 Remote Display

Transmitter electronics for radar level transmitters and vortex flow meters.

Mfg. has some models in stock

Starting at $775.03

Accessories

Please consider these optional accessories.

E+H FHX50B Remote Display

Level transmitter bluetooth display.

Mfg. has some models in stock

Starting at $753.45

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
FMP52-CBAACDCBAFKIJ [48in] Show Configuration	$5,302.60	2 in stock
FMP52-AAAECDCAAFK [300mm] Show Configuration	$4,826.19	1 in stock
FMP52-FBACCDCBAFKLA [12in] Show Configuration	$5,192.19	1 in stock

Base Price:: $3,356.16
Approval Type: FM, CSA C/US
Approval: CSA C/US IS Cl.I Div.1 Gr.A-D (+$351.40)
Power Supply and Output: 2-wire, 4-20mA HART
Display and Operation: Without and via communication
Housing: GT20 dual compartment, aluminum, coated (+$115.95)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Probe: Rod, 0.63in, PFA>316L
Probe Length: 48 in (+$490.08)
Process Connection Type: ASME flange
Process Connection: NPS 2in Cl.150, PTFE>316/316L flange ASME B16.5 (+$851.34)
Language: Without (English comes standard)
Application Package: Without
Calibration: Without
Service: Customized parameterization HART (+$137.67)
Test Certificate: Without
Additional Approval: Without
Probe Design: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $3,356.16
Approval Type: Non-hazardous
Approval: Non-hazardous area
Power Supply and Output: 2-wire, 4-20mA HART
Display and Operation: SD03 4-line and illumination, touch control, data backup function (+$380.40)
Housing: GT20 dual compartment, aluminum, coated (+$115.95)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Probe: Rod, 16mm, PFA>316L
Probe Length: 300 mm (+$122.34)
Process Connection Type: ASME flange
Process Connection: NPS 2in Cl.150, PTFE>316/316L flange ASME B16.5 (+$851.34)
Language: Without (English comes standard)
Application Package: Without
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Probe Design: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $3,356.16
Approval Type: FM, CSA C/US
Approval: FM IS Cl.I,II,III Div.1 Gr.A-G, AEx ia, NI Cl.1 Div.2 (+$351.40)
Power Supply and Output: 2-wire, 4-20mA HART
Display and Operation: SD02 4-line and push buttons, data backup function (+$253.56)
Housing: GT20 dual compartment, aluminum, coated (+$115.95)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Probe: Rod, 0.63in, PFA>316L
Probe Length: 12 in (+$122.52)
Process Connection Type: ASME flange
Process Connection: NPS 2in Cl.150, PTFE>316/316L flange ASME B16.5 (+$851.34)
Language: Without (English comes standard)
Application Package: Without
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: SIL (+$141.26)
Probe Design: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
FMP52-FDBCCDOCAFK 367.50inch	Call for information	1	Call to order
FMP52-AAACCDOCAGKLA 120.00inch	Call for information	1	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
