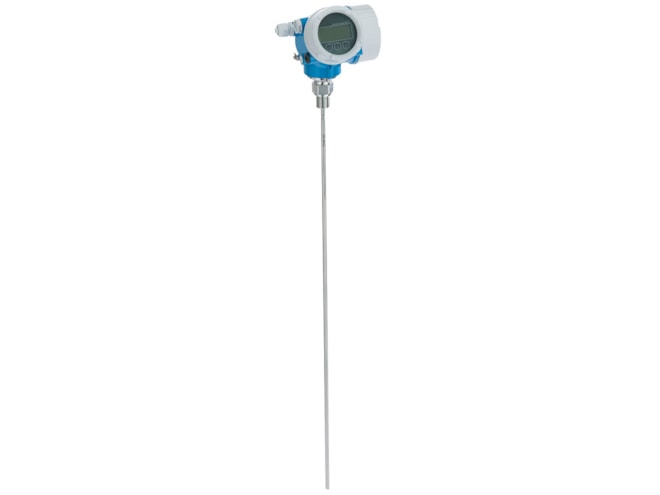

E+H Levelflex FMP51 Guided Wave Radar Level Transmitter

Name: E+H Levelflex FMP51 Guided Wave Radar Level Transmitter
Price: 2034.85 USD
Availability: InStock

Level measurement even under extreme process conditions such as high temperature and high pressure.

Starting at $2,034.85

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Guided radar measurement principle
Threaded or flange process connections
-58 to 392°F (-50 to 200°C) process temperature range
-1 to 400bar (-14.5 to 5,800psi) process pressure range
Maximum measuring distance:
- Rod 33ft (10m)
- Rope 148ft (45m)
- Coax 20ft (6m)
±0.08in (±2mm) accuracy
International explosion protection certificates

The E+H Levelflex FMP51 guided wave radar level transmitter is designed for level measurement even under extreme process conditions like high temperature and high pressure in the process industry. The FMP51 offers maximum reliability even with a turbulent liquid surface or foam, or when numerous tank baffles interfere with the measurement. The Levelflex FMP51 is used for continuous level measurement of liquids, pastes and slurries but also for interface measurement. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

Spec Sheets

E+H Levelflex FMP51 Guided Wave Radar Level Transmitter Datasheet PDF (4.6 MB)

Manuals

E+H Levelflex FMP51 Guided Wave Radar Level Transmitter Manual PDF (5.1 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
FMP51-AAACCDABC3RDJ [36in] Show Configuration	$2,761.86	11 in stock
FMP51-C3MCCDLBA4RGJEBOC [250in] Show Configuration	$5,713.61	9 in stock

Base Price:: $2,021.29
Approval Type: Non-hazardous
Approval: Non-hazardous area
Power Supply and Output: 2-wire, 4-20mA HART
Display and Operation: SD02 4-line and push buttons, data backup function (+$253.56)
Housing: GT20 dual compartment, aluminum, coated (+$115.95)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Probe Type: Rod
Probe: Rod, 1/3in, 316L
Probe Length: 36 in (+$41.40)
Seal: FFKM Kalrez, -4 to 392°F (-20 to 200°C), saturated steam max 302°F (150°C) (+$329.66)
Process Connection: Thread ANSI MNPT3/4, 316L
Language: Without (English comes standard)
Application Package: Without
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Probe Design: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $2,021.29
Approval Type: FM, CSA C/US
Approval: CSA C/US XP Cl.I,II,III Div.1 Gr.A-G, NI Cl.1 Div.2, Ex d (+$579.63)
Power Supply and Output: 4-wire, Modbus RS485 (+$423.09)
Display and Operation: SD02 4-line and push buttons, data backup function (+$253.56)
Housing: GT20 dual compartment, aluminum, coated (+$115.95)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Probe Type: Rope
Probe: Rope, 1/6in, 316, max 6in nozzle height, center rod
Probe Length: 250 in (+$117.50)
Seal: FKM Viton, -22 to 302°F (-30 to 150°C)
Process Connection: Thread ANSI MNPT1-1/2, 316L (+$362.26)
Language: Without (English comes standard)
Application Package: Interface measurement (+$1,467.19)
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Probe Design: Without
Accessory Mounted: Rope center washer d=75mm/2.95in, 316L pipe diameter DN80/3in + DN100/4in (+$373.14)
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
FMP51-C3MACDLBA4RGJEB 240.00inch	Call for information	14	Call to order
FMP51-C3MCCDLBA4RGJEB 240.00inch	Call for information	15	Call to order
FMP51-AAACCDADA4AFJ 40.00inch	Call for information	2	Call to order
FMP51-G2ACCAMBA4AJJAAF3JANCPB 4,000mm	Call for information	2	Call to order
FMP51-GACCCALAB3CRJAAEBF3NAPB 3,300mm	Call for information	1	Call to order
FMP51-CBACCDMDA4AEJ 217,00inch	Call for information	1	Call to order
FMP51-GBCECAYYB3YYYAAEBEHF3JBLANANFPB	Call for information	4	Call to order
FMP51-CBAEBDLFB3AFJNFOKPB 60.00inch	Call for information	2	Call to order
FMP51-CBAEBDLFB3AFJNFOKPB 216.00inch	Call for information	3	Call to order
FMP51-CBAEBDLFB3AFJNFOKPB 120.00inch	Call for information	1	Call to order
FMP51-CBAEBDLFB3AFJNFOKPB 79.00inch	Call for information	1	Call to order
FMP51-FBAECBLBA4AFJJAOK 103,00inch	Call for information	1	Call to order
FMP51-C3ACCDADA4ARJ 64,00inch	Call for information	1	Call to order
FMP51-CBACCDADA4AFJ 92.00inch	Call for information	1	Call to order
FMP51-CBACCDADA4AFJ 68.00inch	Call for information	2	Call to order
FMP51-CBACBDMDA4AQJ 217.00inch	Call for information	1	Call to order
FMP51-FBAECBLBA4AFJJAOK 79.00inch	Call for information	4	Call to order
FMP51-FBAECBADA4AFJF3JA 40.00inch	Call for information	3	Call to order
FMP51-FBAECBADA4AFJF3JA 48.00inch	Call for information	1	Call to order
FMP51-FBAECBLBA4AFJJAOK 62.00inch	Call for information	2	Call to order
FMP51-FBAECBLBA4AFJJAOK 99.00inch	Call for information	1	Call to order
FMP51-FBAECBADA4AFJF3JA 45.00inch	Call for information	1	Call to order
FMP51-FBAECBLBA4AFJJAOK 73.00inch	Call for information	1	Call to order
FMP51-FBAECBLBA4AFJJAOK 50.00inch	Call for information	2	Call to order
FMP51-FBAECBADA4AFJF3JA 42.00inch	Call for information	1	Call to order
FMP51-FDENCDLBB3RDJEH 270.00inch	Call for information	1	Call to order
FMP51-FDBNCDLBB3RDJEH 456.00inch	Call for information	3	Call to order
FMP51-AAACBDLBA4CGJ 204.00inch	Call for information	1	Call to order
FMP51-C3MCCDLBA4RGJEBOC 370.00inch	Call for information	4	Call to order
FMP51-C3MCCDLBA4RGJEBOC 298.00inch	Call for information	5	Call to order
FMP51-BBGCCDUBA4RDJ 27.00inch	Call for information	1	Call to order
FMP51-AABACDLBA4RDJ 276.00inch	Call for information	1	Call to order
FMP51-C3MCCDLFA4RGJEBOM 360.00inch	Call for information	9	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
