E+H Proline Prowirl F 200 Vortex Flow Meter

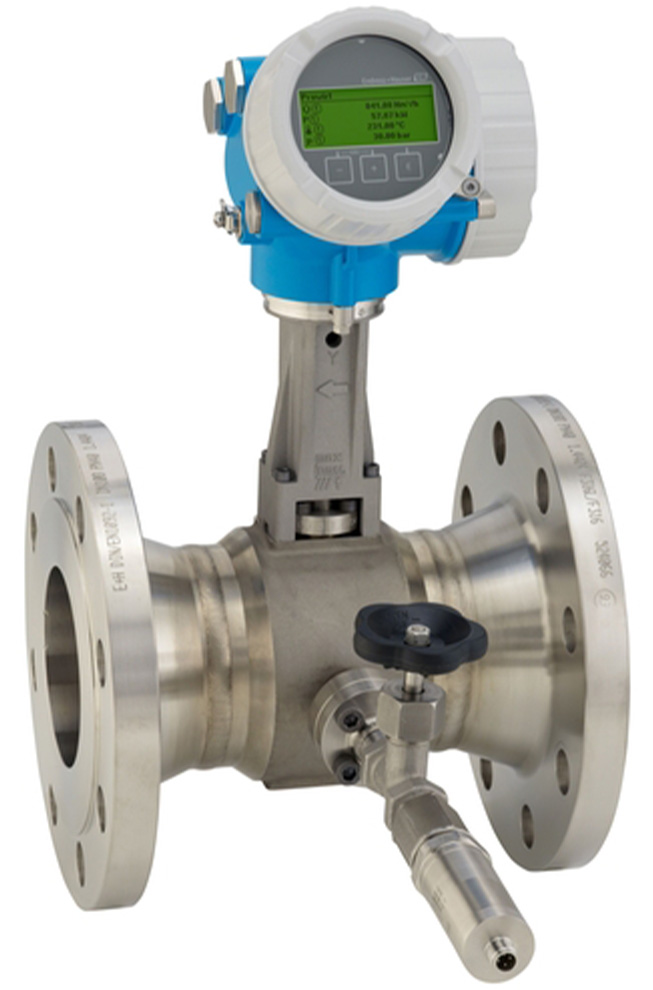

Multivariable flow meter with integrated temperature and pressure measurement, and optimized for steam applications.

E+H Proline Prowirl F 200 Vortex Flow Meter for utilities
E+H Proline Prowirl F 200 Vortex Flow Meter for gases and liquids
E+H Proline Prowirl F 200 Vortex Flow Meter for steam

Starting at $4,489.56

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping (some models excluded)
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Measures volume flow, mass flow, energy flow,
heat flow difference, and temperature
DN 25 to 300 (1 to 12in) nominal diameter range
for wet steam
Accuracy:
Up to ±0.65% volume flow
Up to ±0.85% mass flow
Consistent accuracy down to Re 10,000
PN 100, Class 600, 20K maximum process pressure
Medium temperature range:
–40 to 500° F (–40 to 260° C) standard
–328 to 752° F (–200 to 400° C) optional
Inlet run compensation
HART, PROFIBUS PA, FOUNDATION Fieldbus
IP66/67, type 4X enclosure
ATEX, IECEx, cCSAus, JPN, EAC
4‐line backlit display with touch control

The E+H Proline Prowirl F 200 vortex flow meter offers the preferred measuring principle for wet, saturated or superheated steam, gases and liquids. The meter features a robust, drift-free capacitive sensor for long-term stability, and a separate connection compartment for convenient device wiring. With genuine loop-powered technology, the F 200 enables cost-effective and seamless integration into existing infrastructures. Integrated verification with Heartbeat technology ensures process safety at all times. The Prowirl F 200 also features flexible positioning of the pressure cell, an industrial siphon design for pressure measurement, and a display module with data transfer function.

Spec Sheets

E+H Proline Prowirl F 200 Vortex Flow Meter Datasheet PDF (4.2 MB)

Manuals

Other

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Size	Approval	Output and Input	Sensor Version, DSC-Sensor; Measuring Tube Material	Pressure Component	Process Connection	Application Package	Price	Available
7F2C80-C4ACCADAACAACSKA1AACHDCEBLA Show Full Configuration	3in, DN80	CSA C/US NI Cl.I Div.2 Gr. ABCD	4-20mA HART	Volume; 316L; 316L -40 to 500°F	None	Cl.600 RF Sch.80, flange ASME B16.5	Heartbeat Verification	$10,734.47	4 in stock
7F2C80-AAAECADCAAAAASKA1EU Show Full Configuration	3in, DN80	Non-hazardous area	4-20mA HART	Mass; 316L; 316L (integrated temp), -328 to 750°F	None	Cl.150 RF Sch.40, flange ASME B16.5	Wet steam measurement	$8,002.17	3 in stock
7F2C80-C3BECADCAAAACSKA1 Show Full Configuration	3in, DN80	CSA C/US XP Cl.I,II,III Div.1 Gr-A-G	4-20mA HART and pulse/freq./switch output	Mass; 316L; 316L (integrated temp), -328 to 750°F	None	Cl.600 RF Sch.80, flange ASME B16.5	Not included	$9,278.70	2 in stock
7F2C1F-AAACJDDCAAAABSKA1DJ Show Full Configuration	6in, DN150	Non-hazardous area	4-20mA HART	Mass; 316L; 316L (integrated temp), -328 to 750°F	None	Cl.300 RF Sch.40, flange ASME B16.5	Not included	$10,716.07	1 in stock
7F2C1H-AAACJDDCAAAABSKA1DJ Show Full Configuration	4in, DN100	Non-hazardous area	4-20mA HART	Mass; 316L; 316L (integrated temp), -328 to 750°F	None	Cl.300 RF Sch.40, flange ASME B16.5	Not included	$8,122.41	1 in stock
7F2C25-AAAEJCDAAAAAASKA1DJPM Show Full Configuration	1in, DN25	Non-hazardous area	4-20mA HART	Volume; 316L; 316L -40 to 500°F	None	Cl.150 RF Sch.40, flange ASME B16.5	Not included	$5,975.32	1 in stock
7F2C2H-C3ACJCDAAAAAASKA1 Show Full Configuration	8in, DN200	CSA C/US XP Cl.I,II,III Div.1 Gr-A-G	4-20mA HART	Volume; 316L; 316L -40 to 500°F	None	Cl.150 RF Sch.40, flange ASME B16.5	Not included	$12,684.36	1 in stock
7F2C50-C3ACJCDAAAAAASKA1 Show Full Configuration	2in, DN50	CSA C/US XP Cl.I,II,III Div.1 Gr-A-G	4-20mA HART	Volume; 316L; 316L -40 to 500°F	None	Cl.150 RF Sch.40, flange ASME B16.5	Not included	$6,693.53	1 in stock
7F2C80-AAACCADDAAEAASKA1DJES Show Full Configuration	3in, DN80	Non-hazardous area	4-20mA HART	Mass steam; 316L; 316L (integrated pressure and temp), -328 to 750°F	Pressure cell: 580 psi absolute (40 bar)	Cl.150 RF Sch.40, flange ASME B16.5	Wet steam detection	$9,598.34	1 in stock
7F2C80-C4AECADAAAAAASKA1 Show Full Configuration	3in, DN80	CSA C/US NI Cl.I Div.2 Gr. ABCD	4-20mA HART	Volume; 316L; 316L -40 to 500°F	None	Cl.150 RF Sch.40, flange ASME B16.5	Not included	$5,745.13	1 in stock

Base Price:: $4,384.48
Size: 3in, DN80 (+$910.89)
Approval Type: CSA
Approval: CSA C/US NI Cl.I Div.2 Gr. ABCD
Output and Input: 4-20mA HART
Display and Operating Elements: SD02 4-line, push buttons and data backup function (+$229.82)
Housing: GT20 dual compartment, aluminum coated, compact (+$105.08)
Cable: No cable
Electrical Connection: Thread NPT 1/2
Sensor Version, DSC-Sensor; Measuring Tube Material: Volume; 316L; 316L -40 to 500°F
DSC-Sensor: Gylon, -328°F to 500°F (-200°C to 260°C)
Pressure Component: None
Process Connection: Cl.600 RF Sch.80, flange ASME B16.5 (+$1,701.12)
Calibration Flow: 0.75% volume 3-point
Language: English
Sensor Option: Dualsens, GT20 alu, compact (+$2,459.31)
Customized Parameterization: Output 1, liquid (+$98.49)
Application Package: Heartbeat Verification (+$683.35)
Service: Not included
Test, Certificate: Not included
Additional Approval: SIL (+$161.93)
Accessory Mounted: Not included
Accessory Enclosed: Not included
Firmware Version: Not included
Marking: Not included
Tagging Options: Not available without marking selection

Reconfigure

Base Price:: $4,384.48
Size: 3in, DN80 (+$910.89)
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Output and Input: 4-20mA HART
Display and Operating Elements: SD03 4-line, illuminated, touch control and data backup function (+$344.68)
Housing: GT20 dual compartment, aluminum coated, compact (+$105.08)
Cable: No cable
Electrical Connection: Thread NPT 1/2
Sensor Version, DSC-Sensor; Measuring Tube Material: Mass; 316L; 316L (integrated temp), -328 to 750°F (+$954.33)
DSC-Sensor: Graphite, -328°F to 752°F (-200°C to 400°C)
Pressure Component: None
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: 0.75% volume 3-point
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Not included
Application Package: Wet steam measurement (+$1,302.71)
Service: Not included
Test, Certificate: Not included
Additional Approval: Not included
Accessory Mounted: Not included
Accessory Enclosed: Not included
Firmware Version: Not included
Marking: Not included
Tagging Options: Not available without marking selection

Reconfigure

Base Price:: $4,384.48
Size: 3in, DN80 (+$910.89)
Approval Type: CSA
Approval: CSA C/US XP Cl.I,II,III Div.1 Gr-A-G (+$681.15)
Output and Input: 4-20mA HART and pulse/freq./switch output (+$196.97)
Display and Operating Elements: SD03 4-line, illuminated, touch control and data backup function (+$344.68)
Housing: GT20 dual compartment, aluminum coated, compact (+$105.08)
Cable: No cable
Electrical Connection: Thread NPT 1/2
Sensor Version, DSC-Sensor; Measuring Tube Material: Mass; 316L; 316L (integrated temp), -328 to 750°F (+$954.33)
DSC-Sensor: Graphite, -328°F to 752°F (-200°C to 400°C)
Pressure Component: None
Process Connection: Cl.600 RF Sch.80, flange ASME B16.5 (+$1,701.12)
Calibration Flow: 0.75% volume 3-point
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Not included
Application Package: Not included
Service: Not included
Test, Certificate: Not included
Additional Approval: Not included
Accessory Mounted: Not included
Accessory Enclosed: Not included
Firmware Version: Not included
Marking: Not included
Tagging Options: Not available without marking selection

Reconfigure

Base Price:: $4,384.48
Size: 6in, DN150 (+$4,014.00)
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Output and Input: 4-20mA HART
Display and Operating Elements: SD02 4-line, push buttons and data backup function (+$229.82)
Housing: GT20 dual compartment, aluminum coated, remote (+$742.24)
Cable: 60ft / 20m (+$292.71)
Electrical Connection: Thread NPT 1/2
Sensor Version, DSC-Sensor; Measuring Tube Material: Mass; 316L; 316L (integrated temp), -328 to 750°F (+$954.33)
DSC-Sensor: Graphite, -328°F to 752°F (-200°C to 400°C)
Pressure Component: None
Process Connection: Cl.300 RF Sch.40, flange ASME B16.5
Calibration Flow: 0.75% volume 3-point
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Output 1, steam (+$98.49)
Application Package: Not included
Service: Not included
Test, Certificate: Not included
Additional Approval: Not included
Accessory Mounted: Not included
Accessory Enclosed: Not included
Firmware Version: Not included
Marking: Not included
Tagging Options: Not available without marking selection

Reconfigure

Base Price:: $4,384.48
Size: 4in, DN100 (+$1,420.34)
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Output and Input: 4-20mA HART
Display and Operating Elements: SD02 4-line, push buttons and data backup function (+$229.82)
Housing: GT20 dual compartment, aluminum coated, remote (+$742.24)
Cable: 60ft / 20m (+$292.71)
Electrical Connection: Thread NPT 1/2
Sensor Version, DSC-Sensor; Measuring Tube Material: Mass; 316L; 316L (integrated temp), -328 to 750°F (+$954.33)
DSC-Sensor: Graphite, -328°F to 752°F (-200°C to 400°C)
Pressure Component: None
Process Connection: Cl.300 RF Sch.40, flange ASME B16.5
Calibration Flow: 0.75% volume 3-point
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Output 1, steam (+$98.49)
Application Package: Not included
Service: Not included
Test, Certificate: Not included
Additional Approval: Not included
Accessory Mounted: Not included
Accessory Enclosed: Not included
Firmware Version: Not included
Marking: Not included
Tagging Options: Not available without marking selection

Reconfigure

Base Price:: $4,384.48
Size: 1in, DN25 (+$108.07)
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Output and Input: 4-20mA HART
Display and Operating Elements: SD03 4-line, illuminated, touch control and data backup function (+$344.68)
Housing: GT20 dual compartment, aluminum coated, remote (+$742.24)
Cable: 30ft / 10m (+$146.35)
Electrical Connection: Thread NPT 1/2
Sensor Version, DSC-Sensor; Measuring Tube Material: Volume; 316L; 316L -40 to 500°F
DSC-Sensor: Graphite, -328°F to 752°F (-200°C to 400°C)
Pressure Component: None
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: 0.75% volume 3-point
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Output 1, steam (+$98.49)
Application Package: Not included
Service: Not included
Test, Certificate: Not included
Additional Approval: Not included
Accessory Mounted: Not included
Accessory Enclosed: Post mounting kit, remote DN20-DN80 3/4in to 3in (+$151.01)
Firmware Version: Not included
Marking: Not included
Tagging Options: Not available without marking selection

Reconfigure

Base Price:: $4,384.48
Size: 8in, DN200 (+$6,500.32)
Approval Type: CSA
Approval: CSA C/US XP Cl.I,II,III Div.1 Gr-A-G (+$681.15)
Output and Input: 4-20mA HART
Display and Operating Elements: SD02 4-line, push buttons and data backup function (+$229.82)
Housing: GT20 dual compartment, aluminum coated, remote (+$742.24)
Cable: 30ft / 10m (+$146.35)
Electrical Connection: Thread NPT 1/2
Sensor Version, DSC-Sensor; Measuring Tube Material: Volume; 316L; 316L -40 to 500°F
DSC-Sensor: Graphite, -328°F to 752°F (-200°C to 400°C)
Pressure Component: None
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: 0.75% volume 3-point
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Not included
Application Package: Not included
Service: Not included
Test, Certificate: Not included
Additional Approval: Not included
Accessory Mounted: Not included
Accessory Enclosed: Not included
Firmware Version: Not included
Marking: Not included
Tagging Options: Not available without marking selection

Reconfigure

Base Price:: $4,384.48
Size: 2in, DN50 (+$509.49)
Approval Type: CSA
Approval: CSA C/US XP Cl.I,II,III Div.1 Gr-A-G (+$681.15)
Output and Input: 4-20mA HART
Display and Operating Elements: SD02 4-line, push buttons and data backup function (+$229.82)
Housing: GT20 dual compartment, aluminum coated, remote (+$742.24)
Cable: 30ft / 10m (+$146.35)
Electrical Connection: Thread NPT 1/2
Sensor Version, DSC-Sensor; Measuring Tube Material: Volume; 316L; 316L -40 to 500°F
DSC-Sensor: Graphite, -328°F to 752°F (-200°C to 400°C)
Pressure Component: None
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: 0.75% volume 3-point
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Not included
Application Package: Not included
Service: Not included
Test, Certificate: Not included
Additional Approval: Not included
Accessory Mounted: Not included
Accessory Enclosed: Not included
Firmware Version: Not included
Marking: Not included
Tagging Options: Not available without marking selection

Reconfigure

Base Price:: $4,384.48
Size: 3in, DN80 (+$910.89)
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Output and Input: 4-20mA HART
Display and Operating Elements: SD02 4-line, push buttons and data backup function (+$229.82)
Housing: GT20 dual compartment, aluminum coated, compact (+$105.08)
Cable: No cable
Electrical Connection: Thread NPT 1/2
Sensor Version, DSC-Sensor; Measuring Tube Material: Mass steam; 316L; 316L (integrated pressure and temp), -328 to 750°F (+$1,470.67)
DSC-Sensor: Graphite, -328°F to 752°F (-200°C to 400°C)
Pressure Component: Pressure cell: 580 psi absolute (40 bar) (+$1,747.55)
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: 0.75% volume 3-point
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Output 1, steam (+$98.49)
Application Package: Wet steam detection (+$651.36)
Service: Not included
Test, Certificate: Not included
Additional Approval: Not included
Accessory Mounted: Not included
Accessory Enclosed: Not included
Firmware Version: Not included
Marking: Not included
Tagging Options: Not available without marking selection

Reconfigure

Base Price:: $4,384.48
Size: 3in, DN80 (+$910.89)
Approval Type: CSA
Approval: CSA C/US NI Cl.I Div.2 Gr. ABCD
Output and Input: 4-20mA HART
Display and Operating Elements: SD03 4-line, illuminated, touch control and data backup function (+$344.68)
Housing: GT20 dual compartment, aluminum coated, compact (+$105.08)
Cable: No cable
Electrical Connection: Thread NPT 1/2
Sensor Version, DSC-Sensor; Measuring Tube Material: Volume; 316L; 316L -40 to 500°F
DSC-Sensor: Graphite, -328°F to 752°F (-200°C to 400°C)
Pressure Component: None
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: 0.75% volume 3-point
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Not included
Application Package: Not included
Service: Not included
Test, Certificate: Not included
Additional Approval: Not included
Accessory Mounted: Not included
Accessory Enclosed: Not included
Firmware Version: Not included
Marking: Not included
Tagging Options: Not available without marking selection

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
7F2C2F-AABCJEDDAAEABSKA1AADHDJEBPF	Call for information	1	Call to order
7F2C40-AABCJCDDAAEABSKA1AADHDJEBPM	Call for information	1	Call to order
7F2C1F-AABEJCDDAAFAASKA1EBES	Call for information	1	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 weeks". Click here to select options
