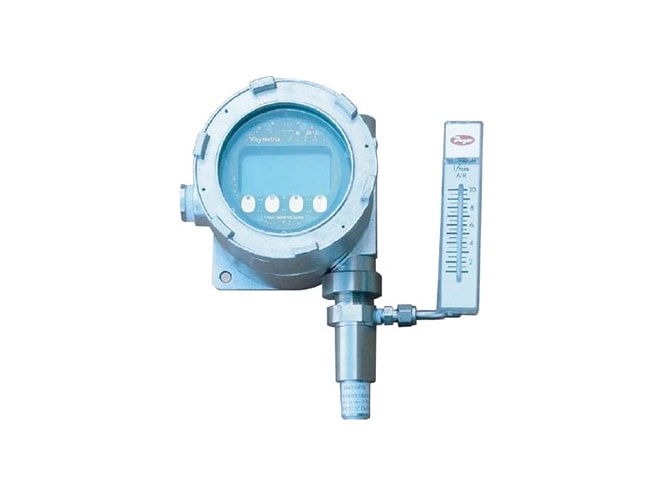

PhyMetrix ExMa Explosion-Proof Moisture Analyzer
Complete sampling system and natural gas dew point meter.
Overview
Features
- -166 to 68°F (-110 to 20°C) dewpoint Sensor
- 95% of step change in 3 min. response time
- ±2°C accuracy
- 0.8°C repeatability
- >1 LPM sample flow
- -40 to 158°F (-40 to +70°C) temp range
- Built-in temperature compensation
- 4/20 mA sink or source output and RS-485
- 3″ viewport, NEMA 4X/IP67 & Explosion-proof
- Continuous status and diagnostics display
- On-screen histogram and trend graph
- Programmable data logging, clock calendar
- Virtual Analyzer PC s/w for training & evaluation
- 316 Stainless Steel & PTFE wetted parts
- Installation Indoor/Outdoor On-The-Pipe or Panel
- Built-in flow regulation, cleanable filter & flow meter
- Extractive or bypass installation
- Thru-the-glass touch user buttons
- NIST calibrations
- Approved Explosion-Proof Installations USA, Canada, ATEX
What's in the Box
- Pluggable electrical screw terminal connectors
- Inlet orifice
- 100 micron stainless steel inlet filter
- Ex certified side port (3/4in NPT) plug
Description
The PhyMetrix ExMa Explosion-Proof Moisture Analyzer is a complete sampling system and natural gas dew point meter. It has built-in flow regulation and a cleanable filter, with a top of the line on-screen histogram and trend graph.
The PhyMetrix ExMa Moisture Analyzer is approved "Explosion-Proof Installations" in USA, Canada, and ATEX.
