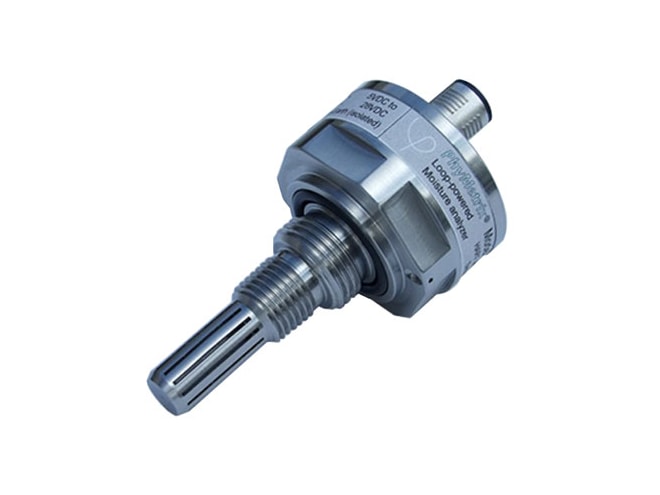

PhyMetrix PLMa Loop Powered Dew Point Transmitter

Small and lightweight dew point sensor, dew point probe.

PhyMetrix PLMa Loop Powered Dew Point Transmitter

Starting at $1,850.00

View Company Reviews

Manufactured

By PhyMetrix
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Manual Product Specs

Features

-166 to 68°F (-110 to 20°C) dew point Sensor
316 Stainless Steel & PTFE wetted parts
3/4″-16 process interface threads with Viton O-ring as well as a 1/4″ NPT threads
Protection from reversed polarity
Robust Industrial M12 connector, IP68 protection
Interfaces to a variety of panel meters DD4 and DD5
Units of measure:
- °C & °F dewpoint, ppmV, ppmW, µB H2O vapor pressure, grams of H2O / m3, Lbs H2O /106 standard cubic feet in Natural Gas.
4/20 mA Loop Powered
Wide loop voltage range 5VDC to 28VDC
Built-in digital I/O for controlling relays
Built-in temperature compensation
Built-in self-test and diagnostics
NIST calibrations
Stainless Steel IP68 housing
HART interface compliant

What's in the Box

10ft (3m) cable with molded M12 connector IP68
User’s Manual
NIST Certificate
Shipping Container with desiccant

The PhyMetrix PLMa loop powered dew point transmitter has a wide loop voltage range of 5VDC to 28VDC. The PLMa has built-in self-test and diagnostics, temperature compensation, and digital I/O for controlling relays. It is also HART interface compliant and 4/20 mA loop powered.

Spec Sheets

PhyMetrix PLMa Loop Powered Dew Point Transmitter Datasheet (95 KB)

Manuals

PhyMetrix PLMa Loop Powered Dew Point Transmitter Manual (1.9 MB)

Other

PhyMetrix Moisture Analyzer Application Worksheet (159 KB)

Links

All possible part numbers

Service Options

PhyMetrix NIST Re-calibration Services

PhyMetrix NIST Re-calibration Services

Cost effective NIST traceable moisture instrument certification.

Starting at $475.00

Accessories

Please consider these optional accessories.

PhyMetrix Mini Heat Exchanger

PhyMetrix Mini Heat Exchanger

Dissipates ~ 90% of temperature gradient between sample and ambient.

PhyMetrix SC-1 Sample Cell

PhyMetrix SC-1 Sample Cell

Allows connection to the PLMa for extractive and low volume in-situ sampling.

PhyMetrix DD4 and DD5 Panel Mount Moisture Analyzer Display

PhyMetrix DD4 and DD5 Panel Mount Moisture Analyzer Display

Panel displays for moisture measurement with PLMa.

Starting at $390.00

PhyMetrix UHi USB to HART Interface Modem

PhyMetrix UHi USB to HART Interface Modem

Connects PC to PLMa for data analysis or HART reprogramming.

PhyMetrix SC-W Welded Port Sample Cell

PhyMetrix SC-W Welded Port Sample Cell

VCR or Swagelok connection to the PLMa for extractive and low volume in-situ sampling.

Starting at $1,170.00

PhyMetrix PLMa Digital Graphic Display

PhyMetrix PLMa Digital Graphic Display

Provides power and displays the measurement of the PLMa.

Starting at $1,500.00
