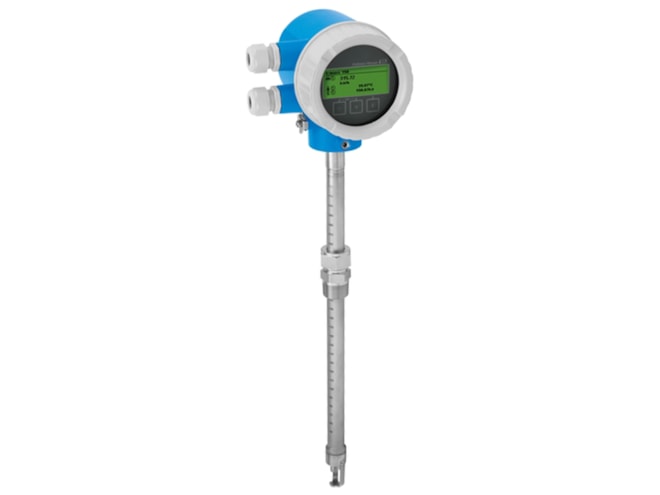

E+H Proline T-Mass B 150 Thermal Mass Flow Meter

Name: E+H Proline T-Mass B 150 Thermal Mass Flow Meter
Price: 3363.13 USD
Availability: InStock

Suitable for air, nitrogen, carbon dioxide and argon in circular piping or rectangular ducts.

Starting at $3,363.13

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Specs

Features

3 to 60in diameter sizes available
4-20 mA HART, pulse/frequency/switch output
Designed for utility gas applications
Compact and robust transmitter
Suitable for in-house consumption accountancy

The E+H Proline T-Mass B 150 Thermal Mass Flow Meter is suitable for large pipelines or rectangular ventilation ducts. It is designed for the cost-effective measurement of utility gases, in particular compressed air. It is a trending device aimed at sub-metering applications. Its 4-wire technology is contained within a rugged compact aluminum housing. Customer-specific settings are saved on the display and can be transferred from one device to another by means of the display.

Spec Sheets

E+H Proline T-Mass B 150 Thermal Mass Flow Meter Datasheet PDF (1.0 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Size	Approval	Output	Process Connection	Application Package	Price	Available
6BABL1-AADKCADSANA2KPD Show Full Configuration	9in	Non-hazardous area	Pulse/freq./switch output	1in NPT, compr. fitting, PEEK seal	Without	$3,644.14	10 in stock
6BABL3-C4DACACSANA2GPH Show Full Configuration	17in	CSA C/US NI Cl.I Div.2 Gr. ABCD	4-20mA HART	1in NPT, compr. fitting, PEEK seal	Without	$3,461.33	1 in stock
6BABL4-C4DBCADSANA2G Show Full Configuration	24in	CSA C/US NI Cl.I Div.2 Gr. ABCD	4-20mA HART, pulse/freq./switch output	1in NPT, compr. fitting, PEEK seal	Without	$2,879.55	1 in stock

Base Price:: $2,082.13
Size: 9in
Approval: Non-hazardous area
Output: Pulse/freq./switch output (+$82.66)
Display and Operation: SD02 4-line, push buttons, data backup function (+$289.28)
Electrical Connection: Thread NPT1/2
Process Connection: 1in NPT, compr. fitting, PEEK seal (+$82.66)
Calibration Flow: Factory calibration, NIST traceable (+$991.72)
Language: Without (English comes standard)
Customized Parameterization: Without
Application Package: Without
Service: Without
Additional Approval: Without
Accessory Enclosed: Mounting boss, 1in NPT (+$115.69)
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $2,082.13
Size: 17in (+$129.16)
Approval: CSA C/US NI Cl.I Div.2 Gr. ABCD
Output: 4-20mA HART
Display and Operation: SD02 4-line, push buttons, data backup function (+$289.28)
Electrical Connection: Thread G1/2
Process Connection: 1in NPT, compr. fitting, PEEK seal (+$82.66)
Calibration Flow: Not verified (not recommended)
Language: Without (English comes standard)
Customized Parameterization: Without
Application Package: Without
Service: Without
Additional Approval: Without
Accessory Enclosed: Hot tap 1in NPT, low pressure max. 4.5 bar/65 psig (+$878.10)
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $2,082.13
Size: 24in (+$177.55)
Approval: CSA C/US NI Cl.I Div.2 Gr. ABCD
Output: 4-20mA HART, pulse/freq./switch output (+$247.93)
Display and Operation: SD02 4-line, push buttons, data backup function (+$289.28)
Electrical Connection: Thread NPT1/2
Process Connection: 1in NPT, compr. fitting, PEEK seal (+$82.66)
Calibration Flow: Not verified (not recommended)
Language: Without (English comes standard)
Customized Parameterization: Without
Application Package: Without
Service: Without
Additional Approval: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4 weeks". Click here to select options
