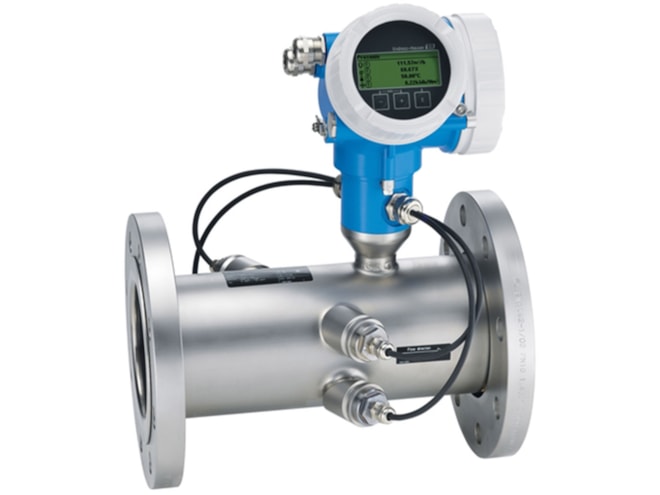

E+H Proline Prosonic Flow B 200 Ultrasonic Flow Meter

Name: E+H Proline Prosonic Flow B 200 Ultrasonic Flow Meter
Price: 8573.29 USD
Availability: InStock

Inline flow meter for biogas measurement with loop-powered technology and integrated real-time methane fraction analysis.

Starting at $8,573.29

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping (some models excluded)
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Measures flow, temperature and methane
DN 50 to 200 (2 to 8in) nominal diameter range
Accuracy up to ±1.5% of reading or ±0.1% of full scale
Repeatability:
±0.5% of reading for volume flow
±0.5% of full scale for methane
32 to 176° F (0 to 80° C) medium temperature
0.7 to 11 bar a (10.2 to 159 psi a) process pressure
ATEX, IECEx, CSA
IP66/67, type 4X
4-line, illuminated display with touch control

The E+H Proline Prosonic Flow B 200 ultrasonic flow meter features accurate and reliable measurement of wet biogas and digester gas, even under fluctuating process conditions. The flow meter uses a measuring principle unaffected by gas composition. With its unique integrated real-time methane fraction analysis, the Prosonic Flow B 200 enables continuous measurement and monitoring of gas flow as well as gas quality.

The Prosonic Flow B 200 offers full bore design; robust, dual-compartment housing; and diagnostic capability for process transparency. The B 200 also offers a specialized sensor design optimized for low pressure gas. The meter features a separate connection compartment for convenient device wiring. In addition to efficient process control and energy balancing, Heartbeat Technology ensures compliance and process safety at all times. The display features touch control and background lighting, eliminating the need to open the device.

Spec Sheets

E+H Proline Prosonic Flow B 200 Ultrasonic Flow Meter Datasheet PDF (1.4 MB)

Manuals

E+H Proline Prosonic Flow B 200 Ultrasonic Flow Meter Manual PDF (3.6 MB)

Other

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Size	Approval	Output and Input	Sensor Version	Process Connection	Price	Available
9B2B1F-C2ACCD1A121 Show Full Configuration	6in, DN150	CSA C/US IS Cl.I,II,III Div. 1	4-20mA HART	Volume flow	Cl.150, A105, lap joint flange ASME B16.5	$11,325.29	1 in stock

Base Price:: $8,114.14
Size: 6in, DN150 (+$1,755.61)
Approval: CSA C/US IS Cl.I,II,III Div. 1 (+$573.90)
Output and Input: 4-20mA HART
Display and Operating Elements: SD02 4-line, push buttons and data backup function (+$321.42)
Housing: GT20 dual compartment, aluminum coated (+$146.96)
Electrical Connection: Thread NPT 1/2
Sensor Version: Volume flow
Process Connection: Cl.150, A105, lap joint flange ASME B16.5 (+$413.26)
Calibration Flow: 1.5%, 3 to 30 m/s
Language: None (English standard)
Customer-Specific Medium: None
Customized Parameterization: Not included
Application Package: Not included
Service: Not included
Test Certificate: Not included
Additional Approval: Not included
Accessory Mounted: Not included
Accessory Enclosed: Not included
Firmware Version: Not included
Marking: Not included
Tagging Options: Only available with Marking selection

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
9B2B1F-C2CCCD2A142WADADB	Call for information	2	Call to order
