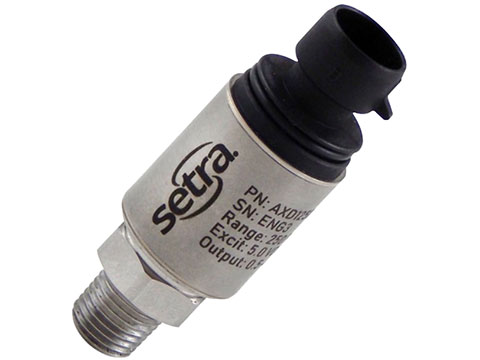

Setra AccuSense AXD Pressure Sensor
Industrial pressure sensor designed for industrial and OEM customers.
Overview
Features
- Non-oil filled design
- Long-term stability: less than 0.5%/year
- Exceptional EMI/RFI
- Rugged design withstands high shock & vibration
- NIST traceable calibration
- Wide operating voltage: 9 VDC to 30 VDC
- Multiple termination & pressure fitting options
- Reverse wire protection
- CE & RoHS compliant
- IP67 rated design
Description
The Accusense Model AXD industrial pressure sensor is designed for industrial and OEM customers who require high performance, reliability, and versatility at an affordable price. It offers exceptional ±0.25% FS accuracy for pressure ranges as low as 1 PSI up to 10,000 PSI to meet a multitude of demanding applications. The Model AXD's capacitive sensor design offers test & measurement grade accuracy at a low price point. The sensor comes standard with ±0.25% FS accuracy in ranges from 1 PSI to 10,000 PSI. The unit offers expanded performance through thermal compensation, bringing the TEB to < 1.5% FS.
The Model AXD industrial pressure sensor is designed and built to withstand demanding applications. The industrial non-oil filled construction, designed with overpressure stop, enables the sensor to recover from overpressure conditions up to 8X the rated range. The AXD's capacitive technology offers worry free operation vs. oil-filled MEMS designs, which have a high cost of failure if oil leaks into the application and contaminates costly equipment.
