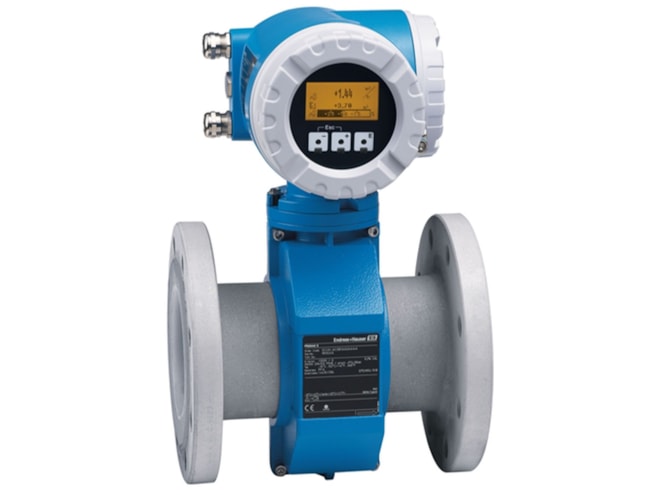

E+H Proline Promag 55S Electromagnetic Flow Meter

Name: E+H Proline Promag 55S Electromagnetic Flow Meter
Price: 8804.6 USD
Availability: InStock

Bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.

Starting at $8,804.60

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping (some models excluded)
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Specs

Features

Solids content up to 80% by weight
4-line backlit display with touch control
Two switch outputs
HART, PROFIBUS PA/DP, FOUNDATION Fieldbus

Predecessor: Promag 35S

The E+H Proline Promag 55S Electromagnetic Flow Meter is designed for inhomogeneous, abrasive and corrosive fluids. The robust sensor design, featuring industry-optimized liners, enables its use in most challenging surroundings and metering jobs such as sewage treatment, pulp and paper production or in the primaries and metals industry.

Spec Sheets

E+H Proline Promag 55S Electromagnetic Flow Meter Datasheet PDF (3.3 MB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+H Promag Grounding Ring

1/2 to 48 inch options available; single ring.

Some Models in Stock

Starting at $106.38

Accessories

Please consider these optional accessories.

E+H RA33 Batch Controller

Designed to record flow and control output signals for valves and pumps to ensure the exact dosing of predefined batch quantities.

Starting at $1,313.63

This product can be used in the following applications:

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Size	Liner	Process Connection	Approval	Output and Input	Price	Available
55S2F-ELGB1AP0BBAA Show Full Configuration	10in, DN250	PTFE	Cl.150, A105, flange ANSI B16.5	Non-hazardous area	4-20mA HART + frequency	$19,005.33	1 in stock

Base Price:: $7,575.03
Size: 10in, DN250 (+$5,207.87)
Liner: PTFE (+$4,924.22)
Process Connection: Cl.150, A105, flange ANSI B16.5 (+$492.43)
Electrodes: 1.4435/316L, bullet nose
Calibration: 0.20%
Test Certificate: Without
Approval: Non-hazardous area
Housing: Compact Alu, IP67 NEMA4X, HE HE= harsh environment (+$328.28)
Cable Remote Version: Not used
Custom Cable Length: Only available with custom cable selection
Cable Entry: Thread NPT 1/2
Power Supply and Display: 20-55VAC / 20-64VDC and WEA, 4-line + Touch control (+$477.50)
Adjustment Software Feature: Factory setup; basic version
Output and Input: 4-20mA HART + frequency
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
