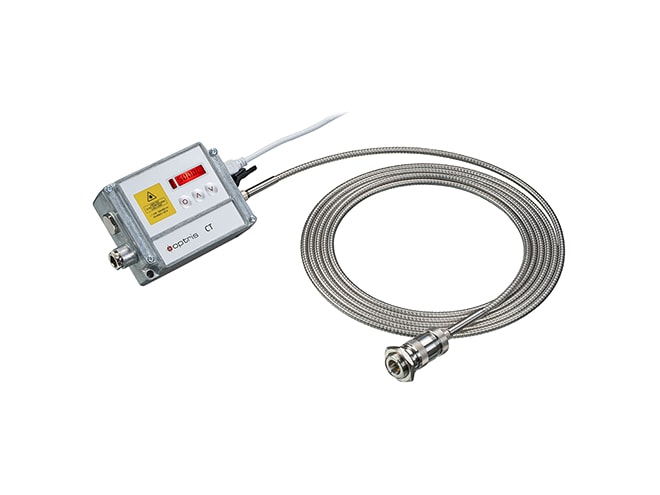

Optris CTratio 1M / 2M Infrared Temperature Sensor

Fixed infrared pyrometer measures temperatures from 482 to 5432°F even in low visibility, 0.8 to 1.75µm spectral range, up to 1ms response time .

Starting at $2,500.00

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • 1ms to 10s response time
  • 38:1, 50:1 or 100:1 optical resolution
  • 0.050 to 1.000 emissivity
  • 8 to 30 VDC power supply
  • 1 or 2 color modes
  • (2) 0 to 20mA or 4 to 20mA analog outputs
  • IP65 / NEMA 4 protection class
Looking for a fever screening solution? Here's a list of approved items.

Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

What's in the Box

  • Sensor head, fiber connection cable and electronic box
  • USB cable (Micro-USB, USB-C and USB-A)
  • 1 mounting nut
  • Mounting bracket
  • Manual

The Optris CTratio 1M / 2M infrared temperature sensor calculates surface temperature based on the emitted infrared energy of objects. A short measuring wavelength makes the pyrometer suitable for the measurement of extremely high metal temperatures and a short response time allows for the surveillance of fast processes. A stainless steel sensing head, separate electronics, and fiber optics permit operation in ambient temperatures up to 599°F without cooling.

The 2-color ratio technology provides accurate and repeatable temperature measurements that are free from dependence on absolute radiated energy values. Accurate measurements are possible even when the target is partially blocked or the target is smaller than the sensor's field of view. Measurements can be made through items or areas that reduce emitted energy, such as grills, screens, channels, small openings, or in areas where dirt, smoke, or steam is in the atmosphere between the sensor and target. The vario optics of the CTratio allows smooth focusing from a distance of 300mm to infinity and the integrated laser sighting marks actual spot size at any distance. The sensor can be operated directly via the free Ratio Connect software and the built-in USB interface allows the sensor to be programmed using the free IRmobile Android app.

Optris ACCTAPMH Air Purge Collar
Optris ACCTAPMH Air Purge Collar

For massive housing, M18x1 thread.

Mfg. has stock
$95.00
Optris ACCTRAIL Rail Mount Adapter
Optris ACCTRAIL Rail Mount Adapter

Mounts CT electronics on a DIN rail.

Mfg. has stock
$26.00
Optris ACCTCOV Closed Cover
Optris ACCTCOV Closed Cover

For CxL, CxV, CT XL & CTratio electronic box.

Mfg. has stock
$26.00
Optris CT Series Digital Interface
Optris CT Series Digital Interface

Relay, RS485, RS232, USB, RS485/422, Modbus RTU, CAN-Bus & Profibus-DPv1 interfaces.

Mfg. has some models in stock
Starting at $65.00
Optris ACCTR Calibration Certificate
Optris ACCTR Calibration Certificate

Certificate of calibration with 4 reference temperatures for CTratio.

Starting at $295.00
Optris Furnace Wall Mount Accessory for CTratio
Optris Furnace Wall Mount Accessory for CTratio

Mounting adapter, sighting tube 11.8in (300mm), pipe adapter M48x1,5, thread adapter M48x1,5 to M18x1 .

Mfg. has stock
$410.00
Optris ACCTMIAC IR App Connector
Optris ACCTMIAC IR App Connector

USB cable and adapters for USB-C and USB-A, compatible with IRmobile (Android) and CompactConnect (Windows), for use with Optris CT 4M, CTL 4M and CTratio.

Mfg. has stock
$85.00
Optris ACCTRF CTratio Spare Fibers
Optris ACCTRF CTratio Spare Fibers

Must be ordered in the same order with CTratio to ensure a fast field exchange.

Starting at $1,595.00
Optris M48 Pipe Flange
Optris M48 Pipe Flange

Fitting to sighting tubes with M48x1.5 thread; for high ambient temperatures.

Starting at $105.00
Optris ACHAPA Pipe Adapter
Optris ACHAPA Pipe Adapter

With M48x1.5 internal thread.

$47.00
Optris ACHAST300 Sighting Tube
Optris ACHAST300 Sighting Tube

M48x1.5, 300mm length.

$95.00
Optris ACCTRATA CTratio Thread Adapter
Optris ACCTRATA CTratio Thread Adapter

M48x1.5 (external) - M18x1 (internal).

$42.00
Optris ACHAMA Mounting Adapter
Optris ACHAMA Mounting Adapter

Mounting and pipe flange including screws.

$235.00
Optris CoolingJacket Mounting Flange
Optris CoolingJacket Mounting Flange

Fitting for connection to pipe flange, CoolingJacket and CoolingJacket Advanced.

Starting at $130.00

Manufacturer Stock

This stock is typically available to ship in 2 - 3 working days.

Part Number Price Available
OPTCTRF1MH1SFVFC3
Show Configuration
$2,500.00 3 in stock
OPTCTRF2MH1SFVFC3
Show Configuration
$3,425.00 3 in stock
OPTCTRF1MHSFVFC3
Show Configuration
$2,500.00 2 in stock
OPTCTRF1MLSFVFC3
Show Configuration
$2,500.00 2 in stock
OPTCTRF2MHSFVFC3
Show Configuration
$3,425.00 2 in stock
OPTCTRF2MLSFVFC3
Show Configuration
$3,425.00 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 13-14 weeks". Click here to select options
