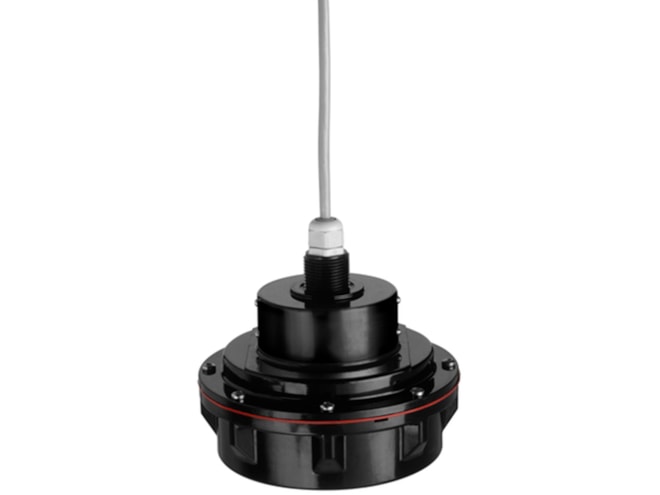

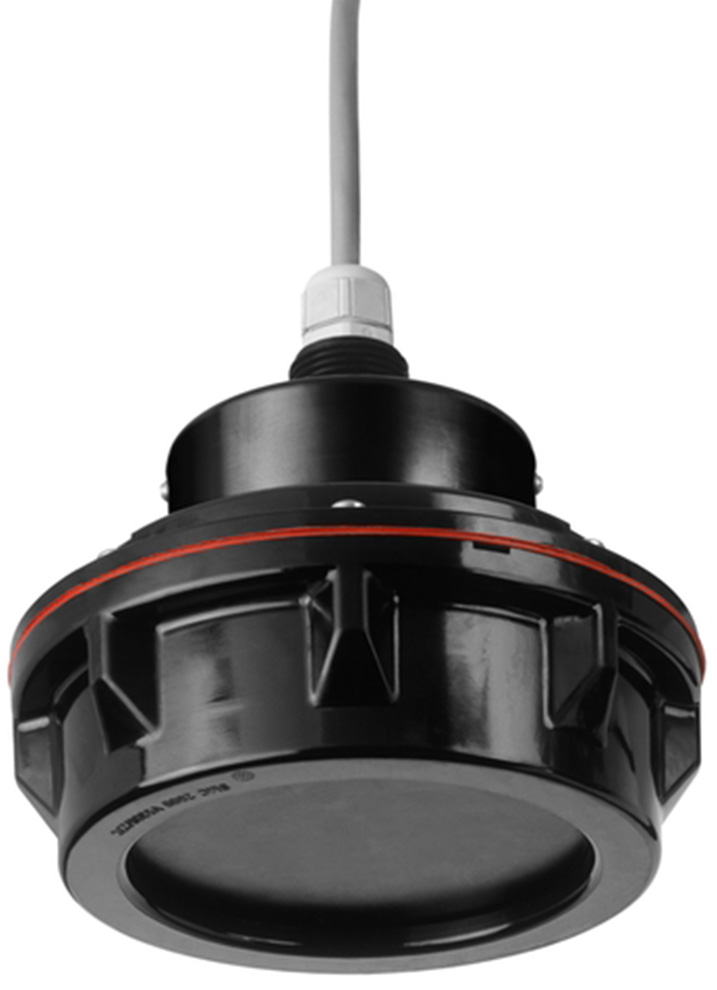

E+H Prosonic FDU93 Ultrasonic Level Sensor

Integrated temperature sensor for Time-of-Flight correction, suited for rough ambient conditions.

E+H Prosonic FDU93 Ultrasonic Level Sensor
E+H Prosonic FDU93 Ultrasonic Level Sensor
E+H Time-of-Flight Measuring Principle Video

Starting at $1,859.21

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Specs

Features

Threaded process connections
-40 to 203°F (-40 to 95°C) temp range
10 to 43psi (0.7 to 3bar) pressure range
Maximum measuring range:
- Liquids: 85ft (25m)
- Solids: 50ft (15m)
Blocking distance: 0.6m (2ft)
International explosion protection certificates

The E+H Prosonic FDU93 Ultrasonic Level Sensor is for continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials. But also for flow measurement in open channels and measuring weirs. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suited for explosion hazardous areas. Maximum measuring range in liquids 25m (85ft), solids 15m (50ft).
