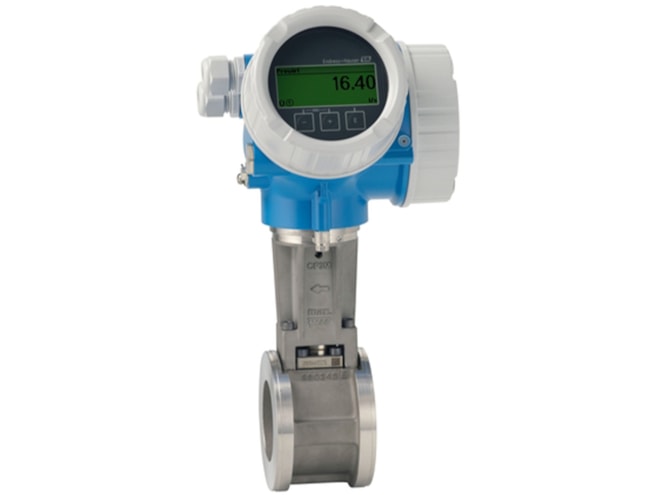

E+H Proline Prowirl D 200 Vortex Flow Meter

Compact or remote wafer flow meter, no flange required, dual compartment housing.

E+H Proline Prowirl D 200 Vortex Flow Meter
E+H Vortex Flow Measuring Principle

Starting at $4,197.75

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Face-to-face length of 65 mm (2.56 in)
No flanges
Display module with data transfer function
Dual-compartment housing
Plant safety: worldwide approvals

The E+H Proline Prowirl D 200 Vortex Flow Meter can be installed directly between flanges and thus serves as the functional device for applications in ancillary processes at little installation cost. With genuine loop-powered technology, Prowirl D 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas. Heartbeat Technology ensures process safety at all times.

Spec Sheets

E+H Proline Prowirl D 200 Vortex Flow Meter Datasheet PDF (4.0 MB)

Manuals

E+H Proline Prowirl D 200 Vortex Flow Meter Manual PDF (4.2 MB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+H FHX50 Remote Display

Transmitter electronics for radar level transmitters and vortex flow meters.

Mfg. has some models in stock

Starting at $757.01

This product can be used in the following applications:

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Size	Approval	Output and Input	Sensor Version, DSC-Sensor and Meas. Tube	Process Connection	Application Package	Price	Available
7D2C1H-AAGCCACAABAASKA1 Show Full Configuration	4in, DN100	Non-hazardous area	PROFIBUS PA, pulse/freq./switch output	Volume, 316L and 316L -40 to 260°C/-40 to 500°F	Cl.150 RF Sch.40, ASME B16.5	Without	$4,883.46	5 in stock
7D2C1F-AABCCADAACAASKA1 Show Full Configuration	6in, DN150	Non-hazardous area	4-20mA HART, pulse/freq./switch output	Volume, 316L and 316L -40 to 260°C/-40 to 500°F	Cl.150 RF Sch.40, ASME B16.5	Without	$6,301.55	1 in stock
7D2C25-C4ACCADAAAAASKA1DC Show Full Configuration	1in, DN25	CSA C/US NI Cl.I Div.2 Gr. ABCD	4-20mA HART	Volume, 316L and 316L -40 to 260°C/-40 to 500°F	Cl.150 RF Sch.40, ASME B16.5	Without	$3,853.56	1 in stock

Base Price:: $3,432.81
Size: 4in, DN100 (+$711.19)
Approval: Non-hazardous area
Output and Input: PROFIBUS PA, pulse/freq./switch output (+$414.33)
Display and Operation: SD02 4-line and push buttons + data backup function (+$223.12)
Housing: GT20 dual compartment,alu,coated,compact (+$102.01)
Cable Remote Version: Not used
Electrical Connection: Thread G1/2
Sensor Version, DSC-Sensor and Meas. Tube: Volume, 316L and 316L -40 to 260°C/-40 to 500°F
DSC Sensor Seal: Viton, -15°C to 175°C/+5 to 347°F
Process Connection: Cl.150 RF Sch.40, ASME B16.5
Calibration Flow: 0.75% volume 3-point
Language: None (English standard)
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $3,432.81
Size: 6in, DN150 (+$2,352.38)
Approval: Non-hazardous area
Output and Input: 4-20mA HART, pulse/freq./switch output (+$191.23)
Display and Operation: SD02 4-line and push buttons + data backup function (+$223.12)
Housing: GT20 dual compartment,alu,coated,compact (+$102.01)
Cable Remote Version: Not used
Electrical Connection: Thread NPT1/2
Sensor Version, DSC-Sensor and Meas. Tube: Volume, 316L and 316L -40 to 260°C/-40 to 500°F
DSC Sensor Seal: Gylon, -200°C to 260°C/-328 to 500°F
Process Connection: Cl.150 RF Sch.40, ASME B16.5
Calibration Flow: 0.75% volume 3-point
Language: None (English standard)
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $3,432.81
Size: 1in, DN25
Approval: CSA C/US NI Cl.I Div.2 Gr. ABCD
Output and Input: 4-20mA HART
Display and Operation: SD02 4-line and push buttons + data backup function (+$223.12)
Housing: GT20 dual compartment,alu,coated,compact (+$102.01)
Cable Remote Version: Not used
Electrical Connection: Thread NPT1/2
Sensor Version, DSC-Sensor and Meas. Tube: Volume, 316L and 316L -40 to 260°C/-40 to 500°F
DSC Sensor Seal: Graphite, -200 to 400°C, -328 to 752°F
Process Connection: Cl.150 RF Sch.40, ASME B16.5
Calibration Flow: 0.75% volume 3-point
Language: None (English standard)
Customized Parameterization: Output 1, liquid (+$95.62)
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-4 weeks". Click here to select options
