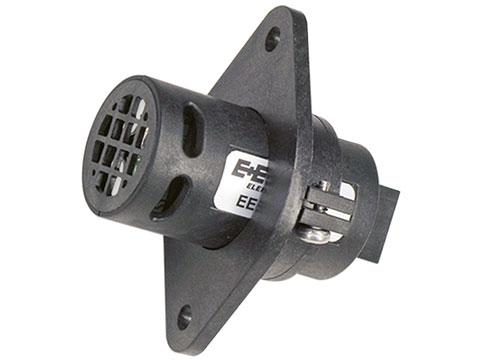

E+E EE040 Humidity / Temperature Transmitter
Compact humidity and temperature transmitter for OEM applications, high accuracy and long term stability.
Overview
Features
- Measuring ranges:
- RH: 0 to 100%
- Temp: -40 to 185°F (-40 to 85°C)
- Accuracy:
- RH: ±3% RH
- Temp: ±0.54°F (±0.3°C)
- ≥ 5kΩ output load
- 0 - 2.5V output signal
- 5 VDC supply
Description
The EE040 is dedicated to the cost-effective measurement of the relative humidity (RH) and temperature (T) in OEM applications. It employs the high-quality EEH210 RH and T sensing element, which stands for reliable and long term stable measurement performance. The electronics board and the components are protected by a special varnish.
In addition, the proprietary E+E coating protects the RH sensor against dirt, dust, and corrosion, which leads to excellent long-term stability even in a polluted environment. The measured data is available on two analog voltage outputs. The EE040 design, the plug connection and the mounting flange included in the scope of supply facilitate the design-in, installation, and replacement.
