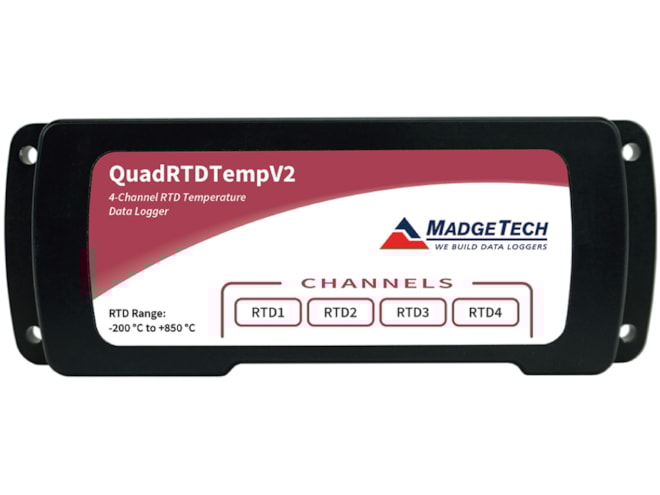

MadgeTech QUADRTDTEMPV2 Temperature Data Logger

4 Channel, 100 Ohm RTD based temperature data logger, 349,184 readings per channel.

Retired products cannot be ordered

The MadgeTech RTDTempX Temperature Data Logger is the recommended replacement

View Company Reviews

Part Number

QUADRTDTEMPV2

Manufactured

By MadgeTech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Manual Product Specs

Features

Accepts 2, 3 and 4-Wire RTDs
Memory capacity of 349,000+ Readings
Temperatures range: -200 to 850°C
Reading rate: 4 Hz up to 1 reading every 24 hours
Baud rate: 115,200

The MadgeTech QUADRTDTEMPV2 Temperature Data Logger is a 4-channel, RTD-based temperature data logger with screw terminals and wall mounted power adapter. Depending on the probe, the QuadRTDTempV2 can measure and record temperatures from -200 to 850 °C (-328 °F to +1562 °F). This 100 Ω device accepts 2, 3 and 4-wire RTDs and can store up to 349,184 readings. To maximize memory capacity, users can enable or disable channels.

The QuadRTDTempV2 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Applications for the QUADRTDTEMPV2 include:

Calibration chamber monitoring
Process verification/validation
Warehouse monitoring
Precision temperature monitoring
HVAC
Clean rooms
Medical/pharmaceutical
Museum monitoring
Environmental studies
Replace costly strip chart recorders
Implement HACCP programs

Spec Sheets

MadgeTech QUADRTDTEMPV2 Temperature Data Logger Datasheet PDF (1.1 MB)

Manuals

MadgeTech QUADRTDTEMPV2 Temperature Manual PDF (511 KB)
