MadgeTech OCTRTDTEMPV2 RTD Temperature Data Logger

8-channel, RTD based temperature data logger with a reading rate of up to 4 Hz, Up to 174,592 readings per channel.

Retired products cannot be ordered

The MadgeTech RTDTempX Temperature Data Logger is the recommended replacement

View Company Reviews

Part Number

OCTRTDTEMPV2

Manufactured

By MadgeTech

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Manual Product Specs

Features

±0.04°C calibrated accuracy
Real time operation
Up to 4 Hz reading rate
Pushbutton or programmable start time
Accepts 2, 3 and 4-wire RTD’s

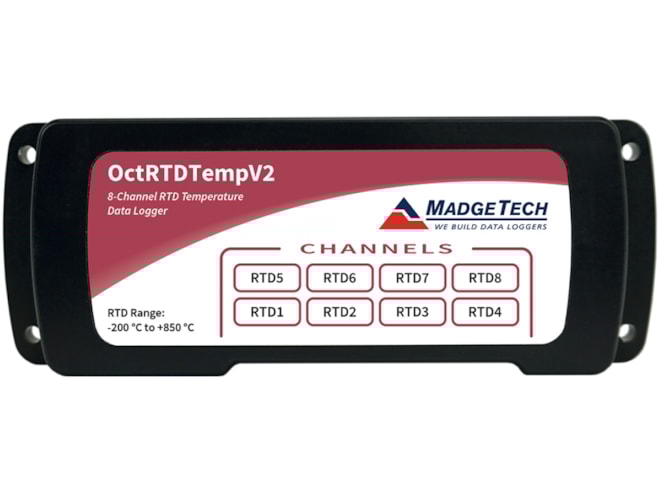

The MadgeTech OCTRTDTEMPV2 RTD Temperature Data Logger is an 8-channel, RTD based temperature data logger with a reading rate of up to 4 Hz. It can measure and record up to 174,592 readings per channel. To maximize memory capacity, users can enable or disable channels. For easy identification, each channel can be named with up to a ten digit title. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The OctRTDTempV2 makes data retrieval quick and easy.

Using the MadgeTech Software, starting, stopping and downloading from the OctRTDTempV2 is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in multiple units, using the Engineering Units function. The data can also be automatically exported to Excel® for further calculations.

Applications for the include:

Calibration chamber monitoring
Process verification/validation
Warehouse monitoring
Precision temperature monitoring
HVAC
Clean rooms
Medical/pharmaceutical
Museum monitoring
Environmental studies
Replace costly trip Chart Recorders

Spec Sheets

MadgeTech OCTRTDTEMPV2 RTD Temperature Data Logger Datasheet PDF (1.2 MB)

Manuals

MadgeTech OCTRTDTEMPV2 RTD Temperature Data Logger Manual PDF (511 KB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.
