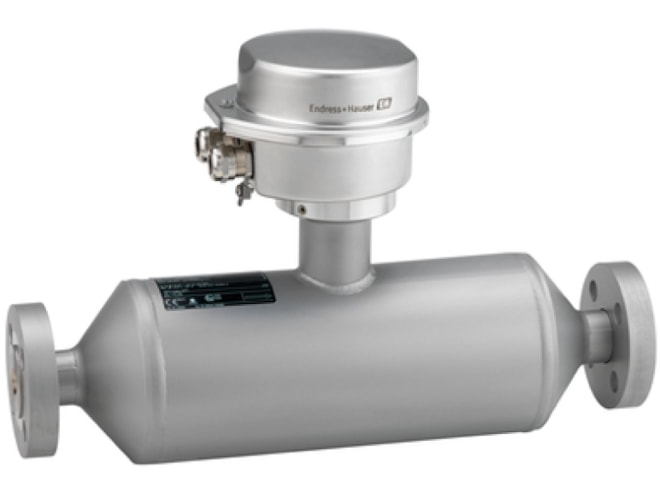

E+H Proline Promass I 100 Coriolis Flow Meter

Name: E+H Proline Promass I 100 Coriolis Flow Meter
Price: 15254.65 USD
Availability: InStock

In-line viscosity and flow measurement with an ultra-compact transmitter, TMB technology.

Starting at $15,254.65

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Straight, easy cleanable single-tube system
TMB technology
Measuring tube made of Titanium
Robust, ultra-compact transmitter housing
High ingress protection: IP69K
Local display available

Predecessor: Promass 80I and Promass 83I

The E+H Proline Promass I 100 Coriolis Flow Meter provides the regular Coriolis flow meter outputs of mass flow, density and temperature, additionally it provides in-line viscosity measurement as an optional output. Combined with the smallest transmitter housing available today it delivers full performance on the smallest footprint. The Promass I 100 will be the preferred choice for system integrators, skid builders and equipment manufacturers.

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
8I1B80-AADBACICBFEMA Show Configuration	$33,833.31	1 in stock

Base Price:: $15,056.30
Size: 3in, DN80 (+$13,474.45)
Approval: Non-hazardous area
Output and Input: 4-20mA HART, pulse/freq./switch output (+$198.35)
Display: Not Included
Housing: Ultra compact hygienic, stainless (+$262.25)
Electrical Connection: Plug M12x1
Meas. Tube Material and Wetted Parts Surface: Titanium Grade 9, 0.8um and 32u-in, mechanical polished (+$1,987.75)
Process Connection: Eccen. Tri-Clamp 3" (+$2,854.21)
Calibration Flow: 0.10% Mass
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-4 weeks". Click here to select options
