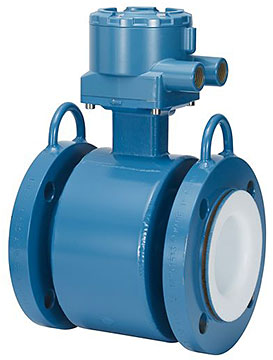

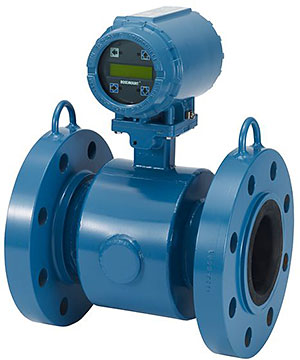

Rosemount 8705 Flanged Magnetic Flow Meter Sensors

Designed for conductive liquids and slurries, fully welded for maximum protection, and available in 1/2- to 36-inch line sizes.

Rosemount 8705 Flanged Flowtube Sensor
Rosemount 8705 Flanged Magnetic Flow Meter Sensors
Rosemount 8705 Flanged Magnetic Flow Meter Sensors
Rosemount 8705 Flanged Magnetic Flow Meter Sensors

Starting at $5,092.00

Effective April 15th, 2025 Rosemount has added a 6.4% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By Rosemount

Includes

FREE Ground Shipping (some models excluded)
FREE Lifetime Tech Support

Availability

Usually ships in 6-8 weeks

Product Manual Product Specs (2 Files)

Features

Welded, sealed coil housing
0.25% standard accuracy
- 0.15% high accuracy option available
7-16Ω sensor coil resistance
39.37 ft/s (12 m/s) upper range limit
1/2 to 36-inch sizes available
Pulsed DC coil drive power
Standard process design

Rosemount 8705 flanged magnetic flow meter sensors are fabricated from stainless and carbon steel, and welded to provide a hermetic seal that protects against moisture and other contaminants. The sealed housing in the 8705 flanged flowtube ensures maximum flowtube sensor reliability by protecting all internal components and wiring from the most hostile environments.

The Rosemount 8705's obstructionless design features no moving parts, which minimizes maintenance and repair. The sensor features a removable and replaceable terminal block that enables easy repair in the field without the need to replace the entire meter. The 8705 also offers optional secondary containment compartments that surround electrodes and capture any potential process fluid leakage. An optional lining protector is also available to guard against installation damage and leading-edge wear.

Rosemount magmeter systems use pulsed DC technology that provides continuous automatic zeroing to compensate for variations in the process environment. Process liquid must have a conductivity of 5 microsiemens/cm (5 micromhos/cm) or greater.

Rosemount 8700 series flowtubes are interchangeable with both the 8712D and 8732 flow transmitters. System accuracy is maintained regardless of line size or optional features. Each Rosemount 8705 flanged flowtube nameplate has a sixteen-digit calibration number that can be entered into a transmitter through the Local Operator interface or the HART Communicator, depending on model.

Instrumart is an IDWR-approved flow meter vendor

The Rosemount 8700 series flanged flowtube sensors is a IDWR-certified flow meter as outlined in the Idaho Department of Water Resources state order requiring flow meters to be installed by water users that divert water in regulated areas from both ground and surface water sources. This flow meter was tested by the staff at Utah State's NIST traceable lab and passed all requirements set by the IDWR and Idaho Department of Agriculture. If you have any questions about this flow meter or what IDWR-approved flow meter best fits your application, please ask one of our helpful engineers. 1-800-884-4967.
