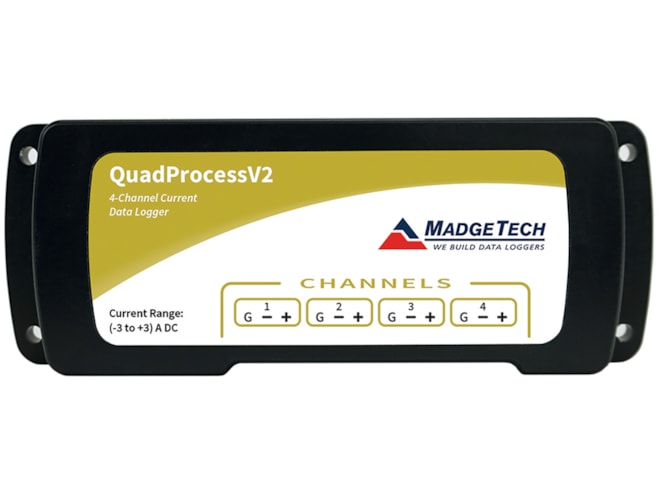

MadgeTech QuadProcessV2 Current Data Logger

4 Channel Low Level, -20mA to 100mA DC current data logger with memory for 523,776 readings per channel.

Retired products cannot be ordered

The MadgeTech CurrentX Series is the recommended replacement

View Company Reviews

Manufactured

By MadgeTech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Manual Product Specs

Features

16-bit readings provide high resolution
User-defined engineering units
Pushbutton or Programmable Start Time
External Power or User Replaceable Battery
Real time operation
Up to 4 Hz Reading Rate
Compact
Title Channels
Calibration Certificate included

The QuadProcessV2 is an 4-channel, battery powered, low level DC current data logger with a reading rate of up to 4 Hz. It can measure and record 523,776 readings per channel. To maximize memory capacity, users can enable or disable channels. For easy identification, each channel can be named with up to a ten digit title. This easy to use device features a 1 year battery life, user replaceable battery and programmable engineering units. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged.

Using the MadgeTech Software, starting, stopping and downloading from the QuadProcessV2 is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in multiple units, using the Engineering Units function. The data can also be automatically exported to Excel® for further calculations

Madgetech data logger software.

Applications

4 to 20 mA recording
pH recording
Low level signal monitoring
Photovoltaic studies
Battery studies
Medical/Pharmaceutical
Environmental studies
Research and development
Replace costly strip chart recorders

Spec Sheets

MadgeTech QuadProcessV2 Current Data Logger Data Sheet PDF (1.1 MB)

Manuals

MadgeTech QuadProcessV2 Current Data Logger Manual PDF (434 KB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.
