E+H iTHERM TMS21 MultiSens Slim Multipoint Thermocouple

Low invasive bendable TC multipoint thermometer for Petrochemical and Chemical applications.

Call for pricing

View Company Reviews
Part Number
  • TMS21
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Manual Product Specs

Features

  • Measuring range: -454 to 1688°F (-270 to 920°C)
  • Static pressure range: Up to 1305 psi (90 bar)
  • High degree of flexibility
  • Compliance to several national and international standards
  • Adjustable immersion length

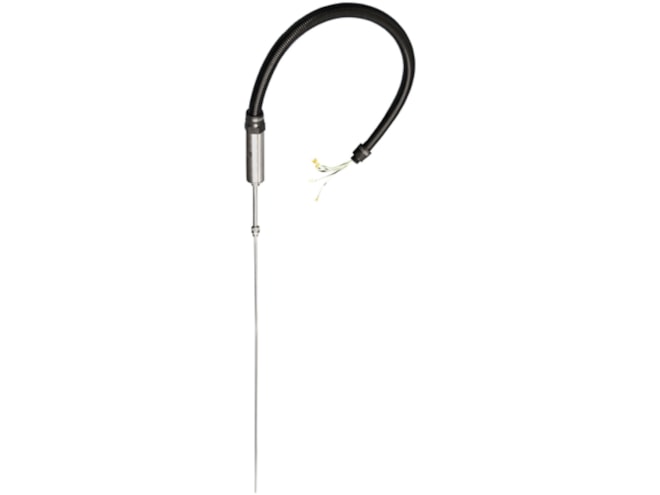

The E+H iTHERM TMS21 MultiSens Slim Multipoint is specially designed for applications where small size and light weight are crucial. The TMS21 can be highly customized due to its versatility. It can monitor the temperature on a very high number of points along a line just by using one process connection. It is composed of several low diameters thermocouples protected by one overall primary tube thermowell. Two different product configurations are available, with or without flexible upper thermowell-hose (for axial centering).
