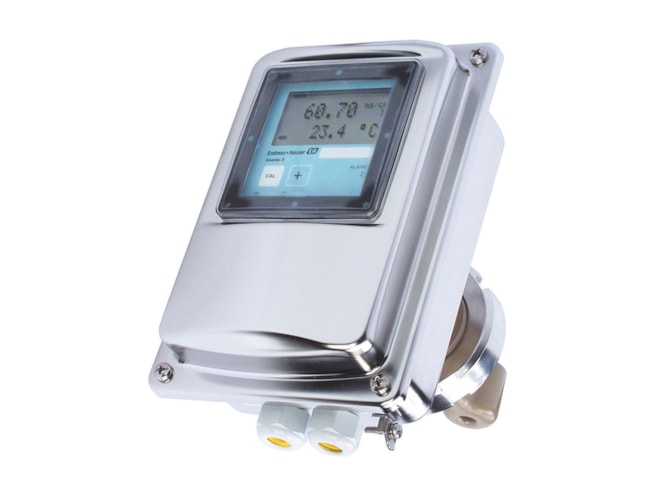

E+H Smartec CLD132 Compact Conductivity Device
Toroidal conductivity measuring system for inductive conductivity in the food & beverage industry.
- By Endress+Hauser
- Made in the USA
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- 100 µS/cm - 2000 mS/cm measurement range
- Max 284°F (140°C) (max 30min) process temperature
- Max. 174 psi(194°F) (12 bar (90°C)) process pressure
- 0/4-20 mA, HART, Profibus
- Engineered for quick temperature response
- Hygienic design avoids recontamination
- Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)
- Low risk of soiling due to encapsulated sensor
- IP67
Description
The E+H Smartec CLD132 is a measuring system for inductive conductivity in the food & beverage industry. The combination of a transmitter and a sensor is interference-free, easy-to-use and features a hygienic design that protects your products and processes from contamination. Moreover, Smartec CLD132 is equipped with a stainless steel temperature sensor that gives you an ultrafast temperature response for reliable measurement in separation applications.
Documents
In Stock
Additional Part Numbers
These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.
| Part Number | Price | Available | |
|---|---|---|---|
| CLD132-PCS158HB1 | Call for information | 2 | Call to order |
| CLD132-WCS158HB2 | Call for information | 2 | Call to order |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
