E+H Deltabar FMD71 Pressure System

Differential pressure system, used to measure the pressure or level, volume or mass of liquids in pressurized tanks or distillation columns/evaporators.

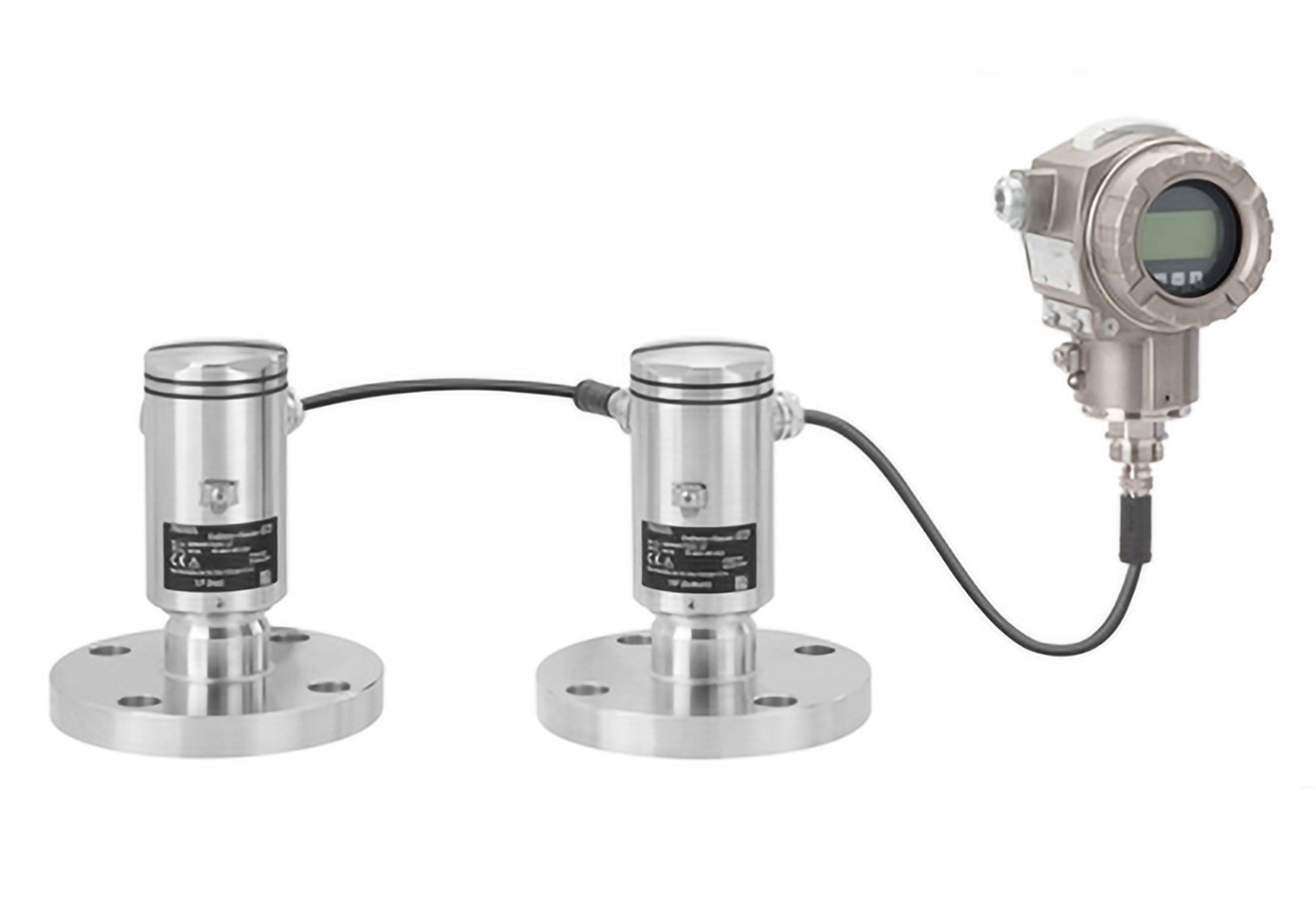

E+H Deltabar FMD71 Pressure System
E+H Deltabar FMD71 Pressure System SS

Starting at $6,318.03

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Threads, flanges and hygienic process connections
-40 to 302°F (-40 up to 150°C) process temperature
100mbar to +40bar (6 to 600psi) measuring range
Single sensor up to ±0.05%, system up to ±0.07% accuracy
4 to 20 mA HART, 12 to 45V DC, Exia: 12 to 30V DC supply/communication
ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, INMETRO
NACE MR0175, EN10204-3.1
FDA, 3A

The E+H Deltabar FMD71 is a differential pressure system, used to measure the pressure or level, volume or mass of liquids in pressurized tanks or distillation columns/evaporators. The high pressure sensor (HP) measures the hydrostatic pressure. The low pressure sensor (LP) measures the head pressure. The level is calculated in the transmitter using these two digital values. The electronic dp system eliminates issues of traditional differential pressure measurements.

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
FMD71-AA25BBD1H1FGEDCDCRJFRJFA	Call for information	2	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
