E+H Deltabar FMD72 Pressure System

Differential pressure system, used to measure the pressure, level, volume or mass of liquids in pressurized tanks or distillation columns/evaporators.

E+H Deltabar FMD72 Pressure System
E+H Deltabar FMD72 Pressure System SS

Starting at $6,000.38

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Features

Threads, flanges and hygienic process connections
-40 to 257°F (-40 to 125°C), optional 480°F (250°C) process temperature
400mbar to 40bar (6 to 600psi) measuring range
Single sensor up to ±0.05%, system up to ±0.07% accuracy
4 to 20 mA HART supply / communication
ATEX, FM, CSA, CSA C/US IEC Ex, NEPSI, INMETRO
NACE MR0175, EN10204-3.1
FDA

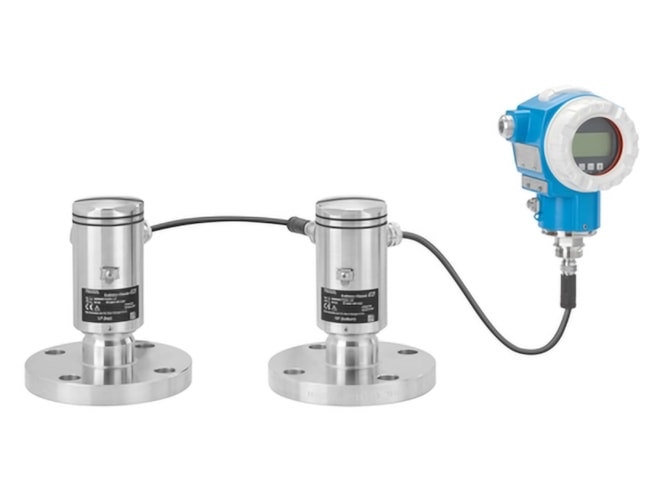

The E+H Deltabar FMD72 is a differential pressure system, used to measure the pressure, level, volume or mass of liquids in pressurized tanks or distillation columns/evaporators. The high pressure sensor (HP) measures the hydrostatic pressure. The low pressure sensor (LP) measures the head pressure. The level is calculated in the transmitter using these two digital values. The electronic dp system eliminates issues of traditional differential pressure measurements.

Other

E+H Mechanical Accessories for Pressure Measuring Devices (2.7 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
FMD72-AA24AAD1H1HGECCDCAGJAGJA1 Show Configuration	$6,575.76	1 in stock

Base Price:: $5,292.64
Approval: Non-hazardous area
Display and Operation: LCD, operation internal (+$151.74)
Housing Transmitter: Aluminium T14
Housing Sensor Module: Aluminium
Electrical Connection: Thread NPT1/2
Sensor Range Sensor 1 (HP): 1bar/100kPa/15psi gauge, overload: 10bar/1MPa/150psi
Sensor Range Sensor 2 (LP): 1bar/100kPa/15psi gauge, overload: 10bar/1MPa/150psi
Reference Accuracy: Standard
Calibration and Unit: Differential pressure range; inH2O/ftH2O
Cable Length Sensor > Transmitter: 15ft; 4.57m (+$153.98)
Cable Length Sensor > Sensor: 35ft; 10.67m (+$275.98)
Process Connection Sensor 1 (HP): NPS 3in Cl.150 RF, 316/316L flange ASME B16.5 (+$453.93)
Process Connection Sensor 2 (LP): NPS 3in Cl.150 RF, 316/316L flange ASME B16.5 (+$247.49)
Membrane Material: 316L
Fill Fluid: Silicone oil
Additional Operation Language: Without
Calibration: Without
Service: Without
Test and Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Firmware Version: Without
Marking: Without
Tagging Option: Without

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
FMD72-FD25AAD1P1PGJCCDCACJACJA1	Call for information	7	Call to order
FMD72-FD25AAD1M1MGJCCFCAGJAGJA1	Call for information	2	Call to order
FMD72-FA24AAD1S1SDEBCDCARJARJA1	Call for information	1	Call to order
FMD72-CB25AAD1S1PGJDCDCACJACJA1	Call for information	1	Call to order
FMD72-FD25AAD1M1MGJCCDCACJACJA1	Call for information	3	Call to order
FMD72-FD25AAD1F1FGJDCFCAFJAFJA1	Call for information	1	Call to order
FMD72-FD25AAD1P1PGJCCDCAFJAFJA1	Call for information	1	Call to order
FMD72-AA25AAD1H1HGEBCDCR1JR1JA1	Call for information	7	Call to order
FMD72-FD24AAD1K1KGEBCDCAGJAGJA1	Call for information	2	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 weeks". Click here to select options
