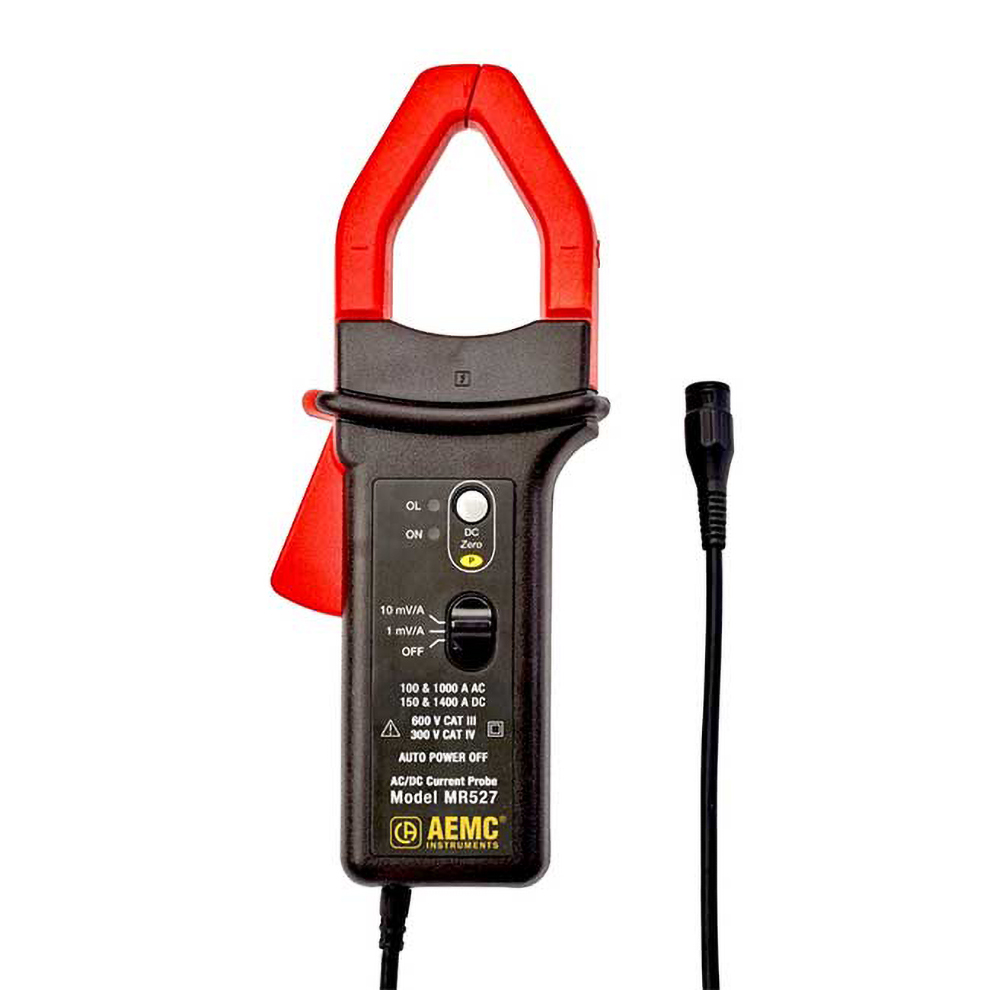

AEMC MR417 & MR527 AC/DC Current Probe

Designed for oscilloscopes, waveform displaying instruments, and other frequency sensitive displaying instruments with BNC inputs.

AEMC MR417 & MR527 AC/DC Current Probe
AEMC MR527 AC/DC Current Probe

Starting at $399.00 Found a better price? Let us match.

View Company Reviews

Manufactured

By AEMC

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 5-6 weeks

Product Manual Product Specs

Features

Current range:
- MR417: 0.5 to 40Aac, 60Adc
- MR527: 0.5 to 100Aac, 150Adc
Phase shift at 50/60Hz:
- MR417: ≤2°@ 40A, ≤1.5° @ 400A
- MR527: ≤2.2°@ 100A, ≤1.5° @ 1000A
10mV/A, 1mV/A output signal
>1MΩ and ≤100pF load impedance
3000Adc or 1000Aac continuous for < 1kHz overload
IP 40, EN 61326-1
IEC 61010-1, EN 61010-2-32, Pollution Degree 2, 600V CAT III

The AEMC MR417 and MR527 models are Hall Effect current probes designed for oscilloscopes, waveform displaying instruments, and other frequency sensitive displaying instruments with BNC inputs. Both MR417 and MR527 models have two ranges and a 6.5 ft (2m) lead terminated by a BNC connector. The MR417 can measure up to 400AAC and 600ADC and the MR527 can measure up to 1000AAC and 1400ADC. Both probes are powered by a 9V battery or by a standard 5V external power supply via a micro-USB connector (not supplied).
