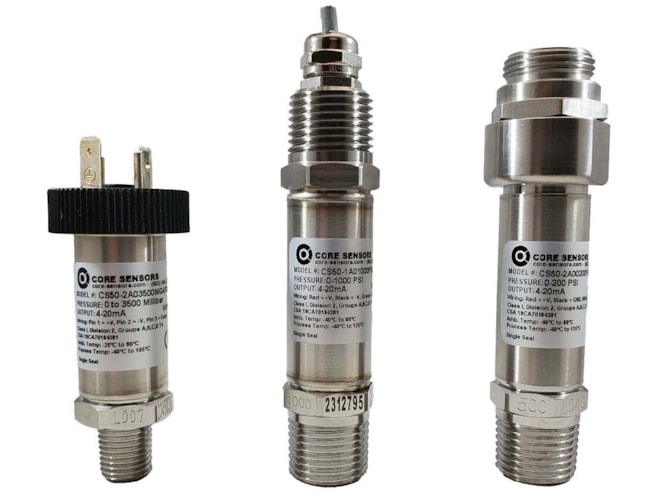

Core Sensors CS50 Non-Incendive Pressure Transducer

High-strength sensor for use in hazardous areas, pressures from 50 to 30,000 psi.

Features

  • Pressures from 50 to 30,000 psi
  • Accuracy:
    • ≤ ±0.25% BFSL
    • ≤ ±0.5% BFSL (>10,000 psi)
  • ≤ ±0.25% of full scale stability
  • 100 million pressure cycles
  • 2x minimum overpressure
  • 5x or 60,000 psi (whichever is less) burst pressure
  • Operating temperature:
    • -40 to 176°F (-40 to 80°C)
    • -4 to 176°F (-20 to 80°C) (electrical connection option F)
  • Media temperature:
    • -40 to 257°F (-40 to 125°C)
    • -40 to 221°F (-40 to 105°C) (electrical connection option F)
  • ≤ ±1% of full scale TC zero
  • ≤ ±1% of full scale TC span
  • EMI/RFI protection
  • IP65 rating

The Core Sensors CS50 non-incendive pressure transducer is designed for use in Class I, Division 2 locations. The CS50 features an all-welded stainless steel construction for a minimum IP65 rating, a one-piece design, reverse polarity and EMI protection. The CS50 is an excellent solution for applications such as natural gas compression, hydrogen compression and storage, and process control instrumentation.

Core Sensors CS50 Non-Incendive Pressure Transducer Applications

  • Natural gas compression
  • Oil exploration
  • Process controls
  • Hydrogen
Core Sensors Electrical Adapters
Core Sensors Electrical Adapters

Electrical adapters for Core Sensors pressure transducers.

Some Models in Stock
Starting at $8.00
Part Number Price Available
CS50-2A00100PG4Z000-01
Show Configuration
$330.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-5 weeks". Click here to select options
