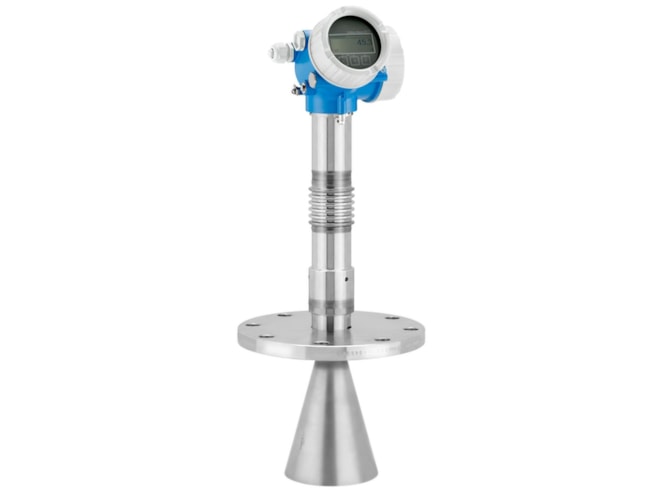

E+H Micropilot FMR54 Radar Level Transmitter

For level measurement in liquids where strong steam or ammonia can occur.

E+H Micropilot FMR64 Level Transmitter High Temp
E+H Micropilot FMR64 Level Transmitter Horn
E+H Micropilot FMR64 Level Transmitter Planar

Starting at $4,932.51

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Predecessor: Micropilot M FMR230

Common Use: Small process connections designed for planar antenna for stilling wells.

E+H Micropilot FMR54 is prepared for the use in high temperature and high pressure applications and with the specially designed planar antenna it is particularly suited for stilling well applications. The FMR54 free space radar is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

Spec Sheets

E+H Micropilot FMR64 Level Transmitter Data Sheet PDF (3.4 MB)

Manuals

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+H FHX50 Remote Display

Transmitter electronics for radar level transmitters and vortex flow meters.

Mfg. has some models in stock

Starting at $781.24

Accessories

Please consider these optional accessories.

E+H FHX50B Remote Display

Level transmitter bluetooth display.

Mfg. has some models in stock

Starting at $723.81

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
FMR54-CABECDBCA8AGJI772 Show Configuration	$5,691.26	4 in stock
FMR54-FDACCDBFA8AKJ Show Configuration	$6,631.67	1 in stock

Base Price:: $4,381.04
Approval Type: CSA C/US
Approval: CSA C/US General Purpose
Power Supply and Output: 2-wire; 4-20mA HART, switch output (+$186.94)
Display and Operation: SD03 4-line, illum., touch control + data backup function (+$392.58)
Housing: GT20 dual compartment, Alu, coated (+$119.65)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Antenna: Horn 80mm/3", for bypass / stilling well installation
Seal: FKM Viton, -40...200°C/-40...392°F
Process Connection: NPS 3" Cl.150 RF, 316/316L flange ASME B16.5 (+$551.47)
Additional Operation Language: Not included
Application Package: Not included
Calibration: Not included
Service: Product documentation on paper (+$59.58)
Test and Certificate: Not included
Additional Approval: Not included
Accessory Mounted: Not included
Accessory Enclosed: Not included
Firmware Version: 01.02.zz, HART 7, DevRev03
Marking: Not included
Tagging Options: NA

Reconfigure

Base Price:: $4,381.04
Approval Type: FM
Approval: FM XP Cl.I,II,III Div.1 Gr.A-G, AEx d, NI Cl.1 Div.2 (+$598.17)
Power Supply and Output: 2-wire; 4-20mA HART
Display and Operation: SD02 4-line, push buttons + data backup function (+$261.67)
Housing: GT20 dual compartment, Alu, coated (+$119.65)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Antenna: Horn 200mm/8"
Seal: FKM Viton, -40...200°C/-40...392°F
Process Connection: NPS 8" Cl.150 RF, 316/316L flange ASME B16.5 (+$1,271.14)
Additional Operation Language: Not included
Application Package: Not included
Calibration: Not included
Service: Not included
Test and Certificate: Not included
Additional Approval: Not included
Accessory Mounted: Not included
Accessory Enclosed: Not included
Firmware Version: Not included
Marking: Not included
Tagging Options: NA

Reconfigure

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-4 weeks". Click here to select options
