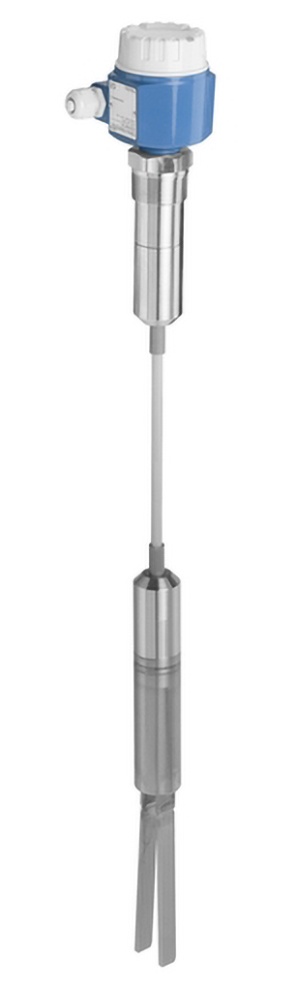

E+H Soliphant FTM52 Level Switch

Switch with rope extension for fine-grained bulk solids also for hazardous areas.

Starting at $1,469.87

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 1-2 weeks
Product Specs

Features

  • Threads, flanges and hygienic process connection
  • -40 to 170°F (-40 to 80°C) temperature
  • -1 to 2bar (-14.5 to 30psi) pressure
  • 30 to 800in (750mm to 20,000mm) sensor length
  • 316L (3,2µm, 0,8µm, PTFE coated) sensor material
  • > 10mm (0.4") grain size
  • International explosion protection certificates
  • ATEX, FM, CSA, CSA C/US, IEC Ex, JPN, INMETRO, NEPSI, EAC, SIL

E+H Soliphant FTM52 is a point level switch for use in silos containing fine-grained or powdery solids even with a low bulk density. Suitable for a wide range of applications with international certificates for use in dust or gas hazardous areas. Available with polished fork and stainless steel housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk.
