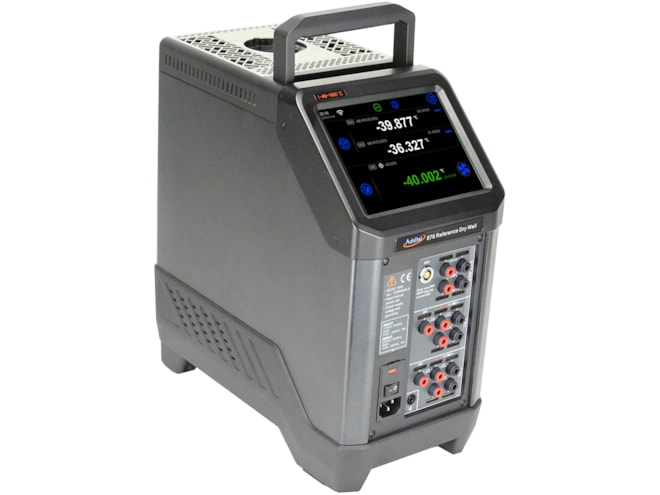

Additel ADT878 Dry Well Calibrator

Name: Additel ADT878 Dry Well Calibrator
Price: 18008.0 USD
Availability: InStock

Portable calibrator with temperature ranges from -40 to 1292°F, two-channel readout, HART & self calibration feature.

Starting at $18,008.00

View Company Reviews

Manufactured

By Additel

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Specs

Features

Temperature ranges:
- 160: -40 to 320°F
- 425: 91.4 to 797°F
- 700: 91.4 to 1292°F
Accuracy:
- 160: ±0.1°C at full range
- 425: ±0.2°C at Full Range
- 700: ±0.20°C at 33°C/425°C and ±0.25°C at 660°C
Full HART communicator
Wi-Fi and Bluetooth capable
Color touch screen display
Quick-Push connectors (PC Option)
Set point control by reference
Self calibration
Built-in automatic annealing (ADT878-700 only)

What's in the Box

Dry block and selected insert
Power cable
USB cable
Insert removal tool
ISO 17025 accredited calibration certificate with data
CD manual

Additel ADT878 Dry Well Calibrator has three models to choose from, ranging from -40 to 1292°F. The Process Calibrator option adds an external reference input, a two-channel readout for UUT's and a full complement of capabilities to help with everything from measuring temperature sensors, to calibrating thermocouples, self-calibrating the Reference Well and configuring HART transmitters. Each unit comes standard with a large touchscreen display and dual-zone control.

Spec Sheets

Additel ADT 878 Dry Well Calibrator Datasheet (1.4 MB)

Links

All possible part numbers

Additel 9915-875 Case

Carrying case with wheels for ADT875.

$1,047.00

Additel 100 Ohm Secondary PRT

-49 to 1220°F temperature range, available with 90° bend.

Starting at $1,484.00

Additel 9070 Smart connector

Smart connector for reference PRT used with ADT878 Dry Well Calibrator.

$234.00

Additel 9071 Connector Adapter

Connector Adapter from smart connector to 4-wire with goldplated spades for ADT878 Dry Well Calibrator.

$563.00

Additel 9072 Smart Connector

Smart connector with clamps for reference PRT used with ADT878 Dry Well Calibrator.

$307.00

Additel 9080 Cold Junction Compensation Kits

Including TC plug, compensation cable, S,R,B,K,J,T,E,N.

$667.00

Additel ADT878 Insert

For Additel ADT878 dry block calibrator.

Starting at $657.00

Additel ADT878 Mini Triple Point of Water Cell Kit

Water cell kit for the ADT878-160. includes mini TPW cell, removal tool and cell basket.

$2,171.00

Part Number	Price	Available
ADT878-160-A-110V Show Configuration	$18,008.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
