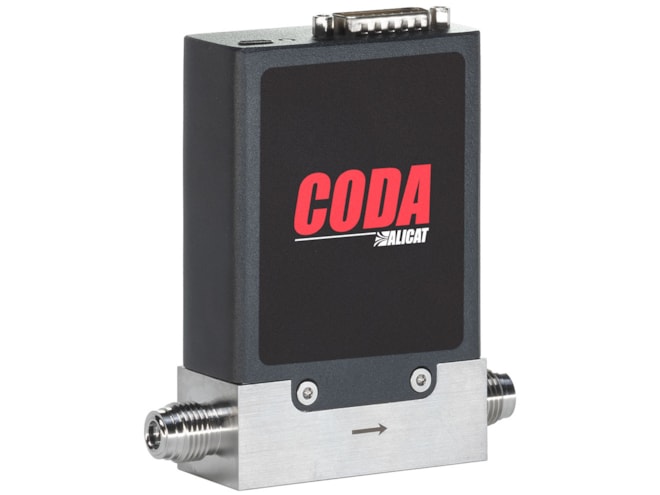

Alicat Scientific CODA Coriolis Mass Flow Meters and Controllers

Direct mass flow measurements independent of fluid composition for use in a broad array of precision ultra-low flow and high pressure applications.

Alicat Scientific CODA Coriolis Mass Flow Meters
Alicat Scientific CODA Coriolis Flow Controllers

Starting at $5,050.00

View Company Reviews

Manufactured

By Alicat Scientific

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 4-6 weeks

Product Manual Product Specs

Features

0.2 to 10,000 g/h flow rate
±0.2% of reading or ±0.05% of full scale flow accuracy (liquid),
whichever is greater
±0.5% of reading or ±0.05% of full scale flow accuracy (gas),
whichever is greater
±0.05% of reading or ±0.025% of full scale repeatability,
whichever is greater
0.2% of full scale minimum measurable flow
±5 kg/m3 density accuracy
±0.05% of full scale zero stability
<500 ms (T98) control response time
-22 to 221°F (−30 to 105°C) fluid temperature range
Up to 4,000 psia maximum operating pressure
0 to 200 cP viscosity range
0–5 Vdc, 0–10 Vdc, 4–20 mA analog I/O options
Modbus RTU (over RS-232 or RS-485) digital I/O options
IP40 (IP67 optional, M12 required)

The Alicat Scientific CODA Coriolis mass flow meters and controllers are compact and pair fast response times with exceptional zero stability. They are also versatile, enabling accurate readings of mass flow rate for both liquids and gases, making them ideal for applications with changing or unknown fluid compositions.

Designed to be highly insensitive to external bumps and vibrations, CODA units provide unwavering accuracy throughout the 0.2 g/h to 10 kg/h measurement range. They also allow measurement of flows with NIST-traceable accuracy for liquids and gases down to 0.05% of the full scale flow rate.

CODA meters cover a wide variety of applications with resistance to corrosive fluids, an IP67 rating, and operating pressures up to 4000 PSIA. All-metal seals are also available.

Alicat Scientific CODA Coriolis Mass Flow Meters and Controllers Applications

Catalyst research – precise measurement independent of fluid properties
Precision dosing for bio reactor systems – efficient addition of process additives
Precision fluid measurement in fuel cell research
Accurate dosing of consumer product additives
CVD coating processes – fast control for repeatable results
