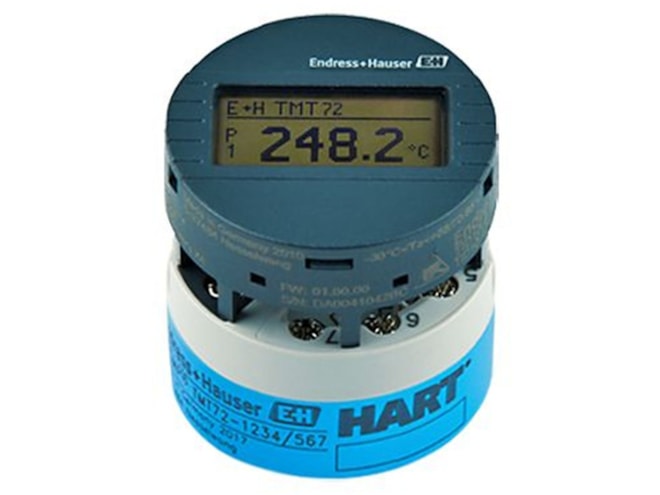

E+H iTEMP TMT72 Temperature Transmitter

Name: E+H iTEMP TMT72 Temperature Transmitter
Price: 510.47 USD
Availability: InStock

Transformation of sensor signals into stable and standardized output signals for all industries.

Starting at $510.47

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Accuracy:
- (Pt100, -50° to 200°C) ≤0.1K
- (Pt100, -58° to 392°F) ≤0.18°F
Analog 4 to 20mA output signal
Bluetooth® wireless technology
HART communication protocol
Certified for use in hazardous areas

The E+H iTEMP TMT72 temperature transmitter delivers reliable, accurate and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple temperature probes, as well as resistance and voltage signals using HART communication. The TMT72 offers seamless integration into all major control and asset management systems and the integrated Bluetooth interface allows for remote operation via the E+H SmartBlue App.

Spec Sheets

E+H iTEMP TMT72 Temperature Transmitter Datasheet PDF (1.9 MB)

Manuals

E+H iTEMP TMT72 Temperature Transmitter Manual PDF (3.0 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
TMT72-B5P1BAAA1 Show Configuration	$707.92	8 in stock
TMT72-AAP1BABA1B4CP Show Configuration	$624.39	2 in stock

Base Price:: $510.47
Approval Type: ATEX
Approval: ATEX II3G Ex nA IIC T6, II3D (+$83.53)
Communication, Output Signal and Operation: HART; 4-20mA; HART/Bluetooth (App) configuration (+$113.92)
Housing Shape: Form B head transmitter, DIN EN 50446
Electrical Connection: Spring terminals
Field Housing: Without
Universal Input: Without
Sensor Type: None
Calibration: Without
Display and Operation: Without
Service: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Cable Gland, Temp Range and Protection Type: Without
Firmware Version: Without
Marking: Without
Tagging RFID: Not Selected

Reconfigure

Base Price:: $510.47
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Communication, Output Signal and Operation: HART; 4-20mA; HART/Bluetooth (App) configuration (+$113.92)
Housing Shape: Form B head transmitter, DIN EN 50446
Electrical Connection: Spring terminals
Field Housing: W/o, mounting set DIN standard
Universal Input: TC/mV
Sensor Type: Type K, -270 to 1372oC, min. span 50K, IEC60584-2013
Calibration: Without
Display and Operation: Without
Service: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Cable Gland, Temp Range and Protection Type: Without
Firmware Version: Without
Marking: Without
Tagging RFID: Not Selected

Reconfigure

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
