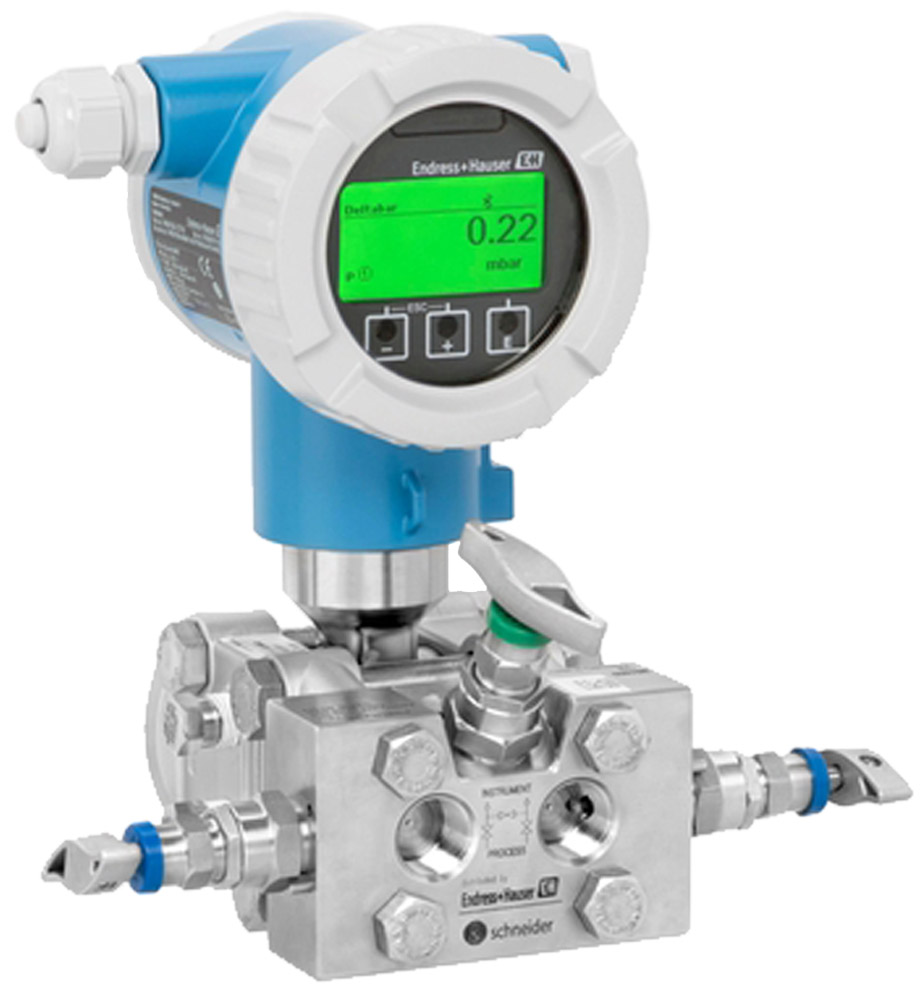

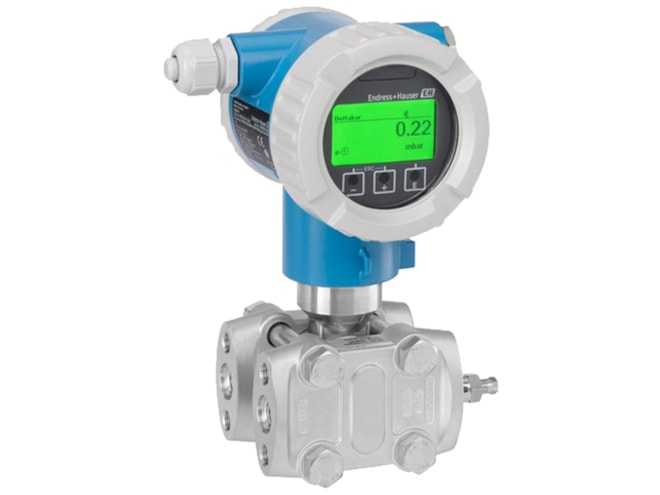

E+H Deltabar PMD75B Differential Pressure Transmitter

Smart transmitter with metal process isolating diaphragm. Detects process anomalies like plugged impulse lines.

E+H Deltabar PMD75B Differential Pressure Transmitter
E+H Deltabar PMD75B Differential Pressure Transmitter

Starting at $2,533.27

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

10mbar to 40bar (0.15 to 600psi) pressure measuring range
Up to 420bar (6300psi) static pressure
Standard accuracy up to 0.05%
Platinum accuracy up to 0.035%
-40° to 110°C (-40° to 230°F) process temperature
Optional touch control display
Optional Bluetooth connectivity for remote operation

The E+H Deltabar PMD75B differential pressure transmitter is robust and can be remotely controlled via SmartBlue App using a secure Bluetooth connection. It allows condition based maintenance to increase plant availability. The software is designed to simplify the handling with intuitive wizards guide the user through setup, proof tests and verification of the device. Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies such as plugged impulse lines.

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Approval	Output	Pressure Type	Sensor Range	Membrane Material	Price	Available
PMD75B-CCBAFJH37MFNSAXA1DAA Show Full Configuration	CSA C/US IS Cl.I Div.1 Gr.A-D	2-wire 4-20mA HART	Differential	600psi	316L	$2,620.38	7 in stock
PMD75B-AABAEJH37FJGSAJA1BF1JANT Show Full Configuration	Non-hazardous area	2-wire 4-20mA HART	Differential	7.5psi	316L	$3,552.32	6 in stock
PMD75B-AABAEJH67LFGSAJA1GNR Show Full Configuration	Non-hazardous area	2-wire 4-20mA HART	Gauge	240psi	316L	$2,963.81	3 in stock
PMD75B-AABAFJH37DEGSAJA1DAAEHFAF1GKNU Show Full Configuration	Non-hazardous area	2-wire 4-20mA HART	Differential	1.5psi	316L	$3,801.33	3 in stock
PMD75B-AABADBH37HEASAJA1D Show Full Configuration	Non-hazardous area	2-wire 4-20mA HART	Differential	45psi	316L	$2,437.48	2 in stock
PMD75B-AABAEJH67FFGSAJA1GNR Show Full Configuration	Non-hazardous area	2-wire 4-20mA HART	Gauge	7.5psi	316L	$2,963.81	2 in stock
PMD75B-AABADBH37MFKSAJA1G Show Full Configuration	Non-hazardous area	2-wire 4-20mA HART	Differential	600psi	316L	$2,463.68	1 in stock
PMD75B-AABADJH37CFGSAJA1BNTQ1 Show Full Configuration	Non-hazardous area	2-wire 4-20mA HART	Differential	0.45psi	316L	$3,323.56	1 in stock
PMD75B-AABADJH37HFASAJA1GEH Show Full Configuration	Non-hazardous area	2-wire 4-20mA HART	Differential	45psi	316L	$2,717.81	1 in stock
PMD75B-CBBAFJH67FJASAJA1DQ1 Show Full Configuration	CSA C/US IS Cl.I,II,III Div.1 Gr.A-G, Cl.I zone 0, AEx/Ex ia IIC T6	2-wire 4-20mA HART	Gauge	7.5psi	316L	$2,827.80	1 in stock
PMD75B-CCBAFBH37HCASACB1BLA Show Full Configuration	CSA C/US IS Cl.I Div.1 Gr.A-D	2-wire 4-20mA HART	Differential	45psi	AlloyC276	$3,982.25	1 in stock
PMD75B-CCBAFJH37MFKSAJA1B Show Full Configuration	CSA C/US IS Cl.I Div.1 Gr.A-D	2-wire 4-20mA HART	Differential	600psi	316L	$2,743.18	1 in stock
PMD75B-CDBAFJH37FJASACB1BEHOC Show Full Configuration	CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G	2-wire 4-20mA HART	Differential	7.5psi	AlloyC276	$5,989.83	1 in stock
PMD75B-CDBAFJH37FJDSACB1BEHOC Show Full Configuration	CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G	2-wire 4-20mA HART	Differential	7.5psi	AlloyC276	$5,989.83	1 in stock

Base Price:: $2,182.46
Approval Type: CSA C/US
Approval: CSA C/US IS Cl.I Div.1 Gr.A-D (+$39.46)
Output: 2-wire 4-20mA HART
Display and Operation: Graphic display touch control + Bluetooth (+$260.22)
Housing and Material: Dual compartment; Alu, coated (+$138.24)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Differential
Sensor Range: 600psi
Calibration and Unit: Nominal value; psi
Installation: Bottom Process connection, high pressure left side, with side vent
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, Superduplex
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: FKM
Operation Language Display: English
Membrane Coating: Without
Application Package: Without
Reference Accuracy: Standard, 0.075%
Calibration: Without
Extended Nominal Pressure PN: Without
Service: Without
Test, Certificate, Declaration
Additional Approval
Sensor Design: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Regional Device Adaption: Without
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $2,182.46
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART
Display and Operation: Graphic display touch control (+$202.38)
Housing and Material: Dual compartment; Alu, coated (+$138.24)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Differential
Sensor Range: 7.5psi
Calibration and Unit: Customized linear; see additional spec. (+$71.34)
Installation: Vertical impulse line, left side high pressure, with vent
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: PTFE (+$45.55)
Operation Language Display: Without (English comes standard)
Membrane Coating: Without
Application Package: Without
Reference Accuracy: Standard, 0.075%
Calibration: Factory calibration certificate, 5-point (+$173.03)
Extended Nominal Pressure PN: Without
Service: Without
Test, Certificate, Declaration: Inspection certificate 3.1,EN10204 (material cert. wetted metallic parts) (+$147.66)
Additional Approval
Sensor Design: Without
Accessory Mounted: Manifold, 5-valve, 316L, PTFE packing, FNPT1/2, IEC61518-A (+$591.66)
Accessory Enclosed: Without
Regional Device Adaption: Without
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $2,182.46
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART
Display and Operation: Graphic display touch control (+$202.38)
Housing and Material: Dual compartment; Alu, coated (+$138.24)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Gauge
Sensor Range: 240psi
Calibration and Unit: Nominal value; psi
Installation: Vertical impulse line, left side high pressure, with vent
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: EPDM
Operation Language Display: Without (English comes standard)
Membrane Coating: Without
Application Package: Without
Reference Accuracy: Standard, 0.075%
Calibration: Without
Extended Nominal Pressure PN: Without
Service: Without
Test, Certificate, Declaration
Additional Approval
Sensor Design: Without
Accessory Mounted: Manifold, 3-valve, 316L, PTFE packing, FNPT1/2, IEC61518-1 (+$440.73)
Accessory Enclosed: Without
Regional Device Adaption: Without
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $2,182.46
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART
Display and Operation: Graphic display touch control + Bluetooth (+$260.22)
Housing and Material: Dual compartment; Alu, coated (+$138.24)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Differential
Sensor Range: 1.5psi
Calibration and Unit: Nominal value; inH2O/ftH2O
Installation: Vertical impulse line, left side high pressure, with vent
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: FKM
Operation Language Display: English
Membrane Coating: Without
Application Package: Heartbeat Verification + Monitoring (+$173.53)
Reference Accuracy: Platinum, 0.055% (+$194.50)
Calibration: Factory calibration certificate, 5-point (+$173.03)
Extended Nominal Pressure PN: 3,626psi (+$87.69)
Service: Without
Test, Certificate, Declaration
Additional Approval
Sensor Design: Without
Accessory Mounted: Manifold,5-valve,316L,graphite packing, FNPT1/2, IEC61518-A (+$591.66)
Accessory Enclosed: Without
Regional Device Adaption: Without
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $2,182.46
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART
Display and Operation: Segment display w/o buttons + Bluetooth (+$172.53)
Housing and Material: Single compartment; Alu, coated (+$31.44)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Differential
Sensor Range: 45psi
Calibration and Unit: Nominal value; inH2O/ftH2O
Installation: Horizontal impulse line, left side high pressure, with side vent (+$51.05)
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: FKM
Operation Language Display: Without (English comes standard)
Membrane Coating: Without
Application Package: Without
Reference Accuracy: Standard, 0.075%
Calibration: Without
Extended Nominal Pressure PN: Without
Service: Without
Test, Certificate, Declaration
Additional Approval
Sensor Design: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Regional Device Adaption: Without
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $2,182.46
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART
Display and Operation: Graphic display touch control (+$202.38)
Housing and Material: Dual compartment; Alu, coated (+$138.24)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Gauge
Sensor Range: 7.5psi
Calibration and Unit: Nominal value; psi
Installation: Vertical impulse line, left side high pressure, with vent
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: EPDM
Operation Language Display: Without (English comes standard)
Membrane Coating: Without
Application Package: Without
Reference Accuracy: Standard, 0.075%
Calibration: Without
Extended Nominal Pressure PN: Without
Service: Without
Test, Certificate, Declaration
Additional Approval
Sensor Design: Without
Accessory Mounted: Manifold, 3-valve, 316L, PTFE packing, FNPT1/2, IEC61518-1 (+$440.73)
Accessory Enclosed: Without
Regional Device Adaption: Without
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $2,182.46
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART
Display and Operation: Segment display w/o buttons + Bluetooth (+$172.53)
Housing and Material: Single compartment; Alu, coated (+$31.44)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Differential
Sensor Range: 600psi
Calibration and Unit: Nominal value; psi
Installation: Universal side flange, with vent (+$77.25)
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: EPDM
Operation Language Display: Without (English comes standard)
Membrane Coating: Without
Application Package: Without
Reference Accuracy: Standard, 0.075%
Calibration: Without
Extended Nominal Pressure PN: Without
Service: Without
Test, Certificate, Declaration
Additional Approval
Sensor Design: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Regional Device Adaption: Without
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $2,182.46
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART
Display and Operation: Segment display w/o buttons + Bluetooth (+$172.53)
Housing and Material: Dual compartment; Alu, coated (+$138.24)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Differential
Sensor Range: 0.45psi (+$108.09)
Calibration and Unit: Nominal value; psi
Installation: Vertical impulse line, left side high pressure, with vent
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: PTFE (+$45.55)
Operation Language Display: Without (English comes standard)
Membrane Coating: Without
Application Package: Without
Reference Accuracy: Standard, 0.075%
Calibration: Without
Extended Nominal Pressure PN: Without
Service: Without
Test, Certificate, Declaration
Additional Approval
Sensor Design: Without
Accessory Mounted: Manifold, 5-valve, 316L, PTFE packing, FNPT1/2, IEC61518-A (+$591.66)
Accessory Enclosed: Mounting bracket, wall/pipe, 316L (+$85.03)
Regional Device Adaption: Without
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $2,182.46
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART
Display and Operation: Segment display w/o buttons + Bluetooth (+$172.53)
Housing and Material: Dual compartment; Alu, coated (+$138.24)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Differential
Sensor Range: 45psi
Calibration and Unit: Nominal value; psi
Installation: Horizontal impulse line, left side high pressure, with side vent (+$51.05)
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: EPDM
Operation Language Display: Without (English comes standard)
Membrane Coating: Without
Application Package: Heartbeat Verification + Monitoring (+$173.53)
Reference Accuracy: Standard, 0.075%
Calibration: Without
Extended Nominal Pressure PN: Without
Service: Without
Test, Certificate, Declaration
Additional Approval
Sensor Design: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Regional Device Adaption: Without
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $2,182.46
Approval Type: CSA C/US
Approval: CSA C/US IS Cl.I,II,III Div.1 Gr.A-G, Cl.I zone 0, AEx/Ex ia IIC T6 (+$39.46)
Output: 2-wire 4-20mA HART
Display and Operation: Graphic display touch control + Bluetooth (+$260.22)
Housing and Material: Dual compartment; Alu, coated (+$138.24)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Gauge
Sensor Range: 7.5psi
Calibration and Unit: Customized linear; see additional spec. (+$71.34)
Installation: Horizontal impulse line, left side high pressure, with side vent (+$51.05)
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: FKM
Operation Language Display: Without (English comes standard)
Membrane Coating: Without
Application Package: Without
Reference Accuracy: Standard, 0.075%
Calibration: Without
Extended Nominal Pressure PN: Without
Service: Without
Test, Certificate, Declaration
Additional Approval
Sensor Design: Without
Accessory Mounted: Without
Accessory Enclosed: Mounting bracket, wall/pipe, 316L (+$85.03)
Regional Device Adaption: Without
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $2,182.46
Approval Type: CSA C/US
Approval: CSA C/US IS Cl.I Div.1 Gr.A-D (+$39.46)
Output: 2-wire 4-20mA HART
Display and Operation: Graphic display touch control + Bluetooth (+$260.22)
Housing and Material: Single compartment; Alu, coated (+$31.44)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Differential
Sensor Range: 45psi
Calibration and Unit: Nominal value; kPa/MPa
Installation: Horizontal impulse line, left side high pressure, with side vent (+$51.05)
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, AlloyC276 (+$1,193.37)
Membrane Material: AlloyC276 (+$56.18)
Fill Fluid: Silicone oil
Seal: PTFE (+$45.55)
Operation Language Display: Without (English comes standard)
Membrane Coating: Without
Application Package: Without
Reference Accuracy: Standard, 0.075%
Calibration: Without
Extended Nominal Pressure PN: Without
Service: Without
Test, Certificate, Declaration
Additional Approval: SIL (+$122.52)
Sensor Design: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Regional Device Adaption: Without
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $2,182.46
Approval Type: CSA C/US
Approval: CSA C/US IS Cl.I Div.1 Gr.A-D (+$39.46)
Output: 2-wire 4-20mA HART
Display and Operation: Graphic display touch control + Bluetooth (+$260.22)
Housing and Material: Dual compartment; Alu, coated (+$138.24)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Differential
Sensor Range: 600psi
Calibration and Unit: Nominal value; psi
Installation: Universal side flange, with vent (+$77.25)
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L
Membrane Material: 316L
Fill Fluid: Silicone oil
Seal: PTFE (+$45.55)
Operation Language Display: Without (English comes standard)
Membrane Coating: Without
Application Package: Without
Reference Accuracy: Standard, 0.075%
Calibration: Without
Extended Nominal Pressure PN: Without
Service: Without
Test, Certificate, Declaration
Additional Approval
Sensor Design: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Regional Device Adaption: Without
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $2,182.46
Approval Type: CSA C/US
Approval: CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
Output: 2-wire 4-20mA HART
Display and Operation: Graphic display touch control + Bluetooth (+$260.22)
Housing and Material: Dual compartment; Alu, coated (+$138.24)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Differential
Sensor Range: 7.5psi
Calibration and Unit: Customized linear; see additional spec. (+$71.34)
Installation: Horizontal impulse line, left side high pressure, with side vent (+$51.05)
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, AlloyC276 (+$1,193.37)
Membrane Material: AlloyC276 (+$56.18)
Fill Fluid: Silicone oil
Seal: PTFE (+$45.55)
Operation Language Display: Without (English comes standard)
Membrane Coating: Without
Application Package: Heartbeat Verification + Monitoring (+$173.53)
Reference Accuracy: Standard, 0.075%
Calibration: Without
Extended Nominal Pressure PN: Without
Service: Without
Test, Certificate, Declaration
Additional Approval
Sensor Design: Without
Accessory Mounted: Manifold, 3-valve, AlloyC, PTFE packing, FNPT1/2 (+$1,708.59)
Accessory Enclosed: Without
Regional Device Adaption: Without
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $2,182.46
Approval Type: CSA C/US
Approval: CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
Output: 2-wire 4-20mA HART
Display and Operation: Graphic display touch control + Bluetooth (+$260.22)
Housing and Material: Dual compartment; Alu, coated (+$138.24)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Differential
Sensor Range: 7.5psi
Calibration and Unit: Customized linear; see additional spec. (+$71.34)
Installation: Horizontal impulse line, right side high pressure, with side vent (+$51.05)
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, AlloyC276 (+$1,193.37)
Membrane Material: AlloyC276 (+$56.18)
Fill Fluid: Silicone oil
Seal: PTFE (+$45.55)
Operation Language Display: Without (English comes standard)
Membrane Coating: Without
Application Package: Heartbeat Verification + Monitoring (+$173.53)
Reference Accuracy: Standard, 0.075%
Calibration: Without
Extended Nominal Pressure PN: Without
Service: Without
Test, Certificate, Declaration
Additional Approval
Sensor Design: Without
Accessory Mounted: Manifold, 3-valve, AlloyC, PTFE packing, FNPT1/2 (+$1,708.59)
Accessory Enclosed: Without
Regional Device Adaption: Without
Firmware Version
Marking: Without
Tagging: Without

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
PMD75B-CDBAABH37LJKSAJA1DNRQ2Z1	Call for information	1	Call to order
PMD75B-C1BAAJH37BJASAJA1DNRNZQ2	Call for information	2	Call to order
PMD75B-AABAEJH37HJASAJA1GAAF1I7JANTNZ	Call for information	1	Call to order
PMD75B-CDBAFJH37HJASAJA1BEHNRNZ	Call for information	1	Call to order
PMD75B-CDBAFJH37FJDSAJA1BEHNRNZ	Call for information	1	Call to order
PMD75B-CABAAJH37CMGSAJA1BNUQ1	Call for information	3	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 weeks". Click here to select options
