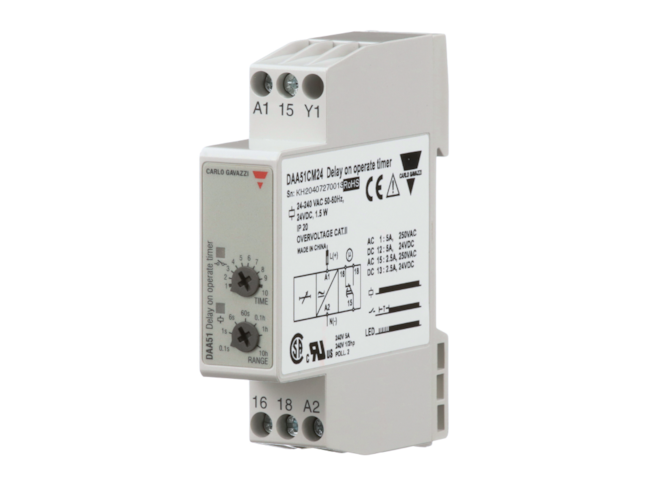

Carlo Gavazzi Mini-D Series Timer

Delay on operate timer with DIN-rail mounting, mini-d housing, and 7 selectable time ranges.

Features

  • 0.1s to 100h time range
  • Knob selection of time range
  • Knob adjustable time setting
  • Automatic start
  • Repeatability: ≤ 0.2%
  • 5A SPDT output relay
  • 17.5mm DIN-rail housing
  • Combined AC and DC power supply
  • LED indication for relay status and power supply ON

The Carlo Gavazzi Mini-D Series timer is a multi-voltage delay on operate timer with 7 selectable time ranges within 0.1s and 100h. 17.5mm Mini-D housing with DIN-rail mounting that is suitable both for back and front panel mounting. The Mini-D series timer is frequently used in motor control centers, packaging machinery, HVAC equipment, control panels, and process control.

Selectable Time Ranges

  • 0.1 to 1s
  • 1 to 10s
  • 6 to 60s
  • 60 to 600s
  • 0.1 to 1h
  • 1 to 10h
  • 10 to 100h
