E+H Solicap FTI55 Level Switch
Point level detection for fine-grained to coarse-grained bulk solids.
- By Endress+Hauser
- Made in the USA
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- -58 to 356°F (-50 to 180°C) process temperature
- Vacuum 362 psi (Vacuum 25 bar) max. over pressure limit
- Robust design for demanding process conditions
- PE, PPS, 316L, Steel wetted parts
- 8 to 157in (0.2 to 4m) sensor length
- 2 to 39in (0.1 to 1m) inactive length
Description

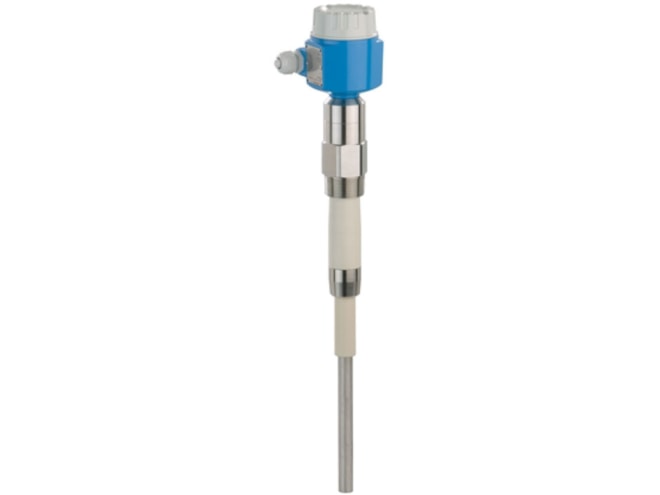

The E+H Solicap FTI55 Level Switch is a fully/partly insulated and robust rod probe for point level detection of fine-grained to coarse-grained bulk solids. It offers maximum reliability due to its active build-up compensation and is suited for a wide range of applications thanks to numerous certificates and approvals. Due to its robust construction, it can also be used to provide accurate measurements in applications with very high lateral loads up to 300Nm.
Documents
In Stock
Additional Part Numbers
These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.
| Part Number | Price | Available | |
|---|---|---|---|
| FTI55-L5M1AFJ55D1A 8.00" 14.00" | Call for information | 1 | Call to order |
