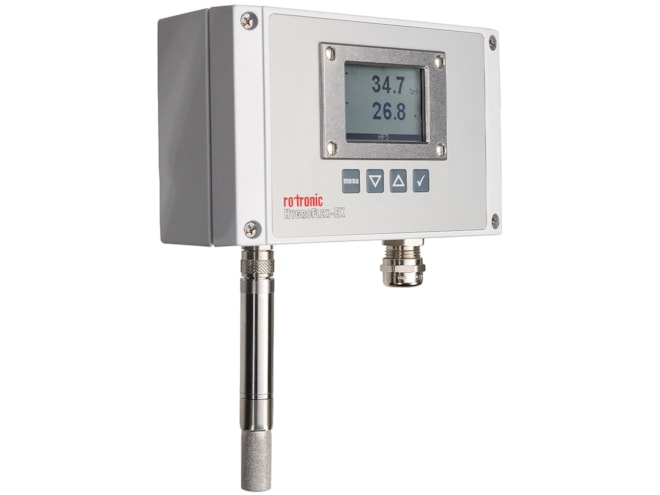

Rotronic HygroFlex5-EX Series Humidity and Temperature Transmitter

Two-channel transmitter designed for use in areas with explosive atmospheres.

Rotronic HygroFlex5-EX Series Humidity and Temperature Transmitter

Starting at $1,945.00

View Company Reviews

Manufactured

By Rotronic

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 5-7 weeks

Product Manual Product Specs

Features

Two 2-wire 4 to 20mA analog outputs
±0.8%rh / 0.1K accuracy
Application temperature:
- -40 to 60°C without display
- -10 to 60°C with display
Optional display available
Aluminum housing
IP66 protection rated
Explosion protection classes (transmitter):
- EX II 2(1) G Ex eb mb [ia Ga] IIC T5 Gb
- EX II 2(1) D Ex tb [ia Da] IIIC T80 °C Db
Kit option available: includes one probe

The Rotronic HygroFlex5-EX Series humidity and temperature transmitter is a two-channel transmitter for the exact measurement of humidity and temperature in explosive atmospheres. This device conforms to the latest international standards and consists of a robust aluminum transmitter with or without display. The attached probes are cast into a stainless steel tube, and are certified for operation in Zone 0/20 while the transmitter is certified for Zone 1/21.

The HC2-EX probe options:

Wall mount probe with 104mm probe length
Cable probe with 125mm or 285mm probe length
Screw-in probe with 1/2in G or NPT thread
LDP-Screw-in probe with 1/2in G thread

Cable and screw-in probes come in cable lengths of 2m, 5m or 10m

Spec Sheets

Rotronic HygroFlex5-EX Series Humidity and Temperature Transmitter Datasheet PDF (696 KB)

Manuals

Rotronic HygroFlex5-EX Series Humidity and Temperature Transmitter Manual PDF (1.2 MB)

Links

All possible part numbers

Rotronic HygroClip2 Intrinsically Safe Probe

Rotronic HygroClip2 Intrinsically Safe Probe

Humidity and temperature measurement probes designed for use with the Rotronic HygroFlex5-EX Transmitter.

Starting at $1,030.00
