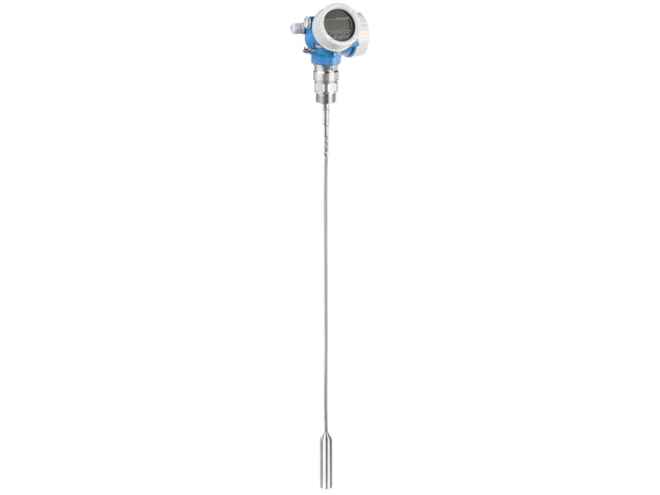

E+H Levelflex FMP57 Guided Wave Radar Level Transmitter

Name: E+H Levelflex FMP57 Guided Wave Radar Level Transmitter
Price: 3814.5 USD
Availability: InStock

Designed for the highest demands of level measurement in bulk solids.

Starting at $3,814.50

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Rod or rope probe
-40 to 302°F (-40 to 150°C) process temperature
-14.5 to 232 psi (-1 to 16 bar) process pressure
Maximum measuring distance
- Rod: 13ft (4m), min DK>1.4
- Rope:
  - 66 to 82ft (20 to 25m), min DK>1.4
  - 82 to 98ft (25 to 30m), min DK>1.6
  - 98 to 148ft (30 to 45m), min DK>1.9
±0.08in (±2mm) accuracy
International explosion protection certificates
3-point and 5-point linearity protocol
Bluetooth wireless technology
Heartbeat technology

The E+H Levelflex FMP57 guided wave radar level transmitter is designed to meet the highest demands in bulk solids, and is best suited for measurements in high silos, bunkers or stockpiles. The Levelflex FMP57 guided radar is used for continuous level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.

The FMP57 also offers HistoROM data management for fast and easy commissioning, maintenance and diagnostics, and Heartbeat technology for cost-effective and safe plant operation during the entire life cycle.

Spec Sheets

E+H Levelflex FMP57 Guided Wave Radar Level Transmitter Datasheet PDF (3.3 MB)

Manuals

E+H Levelflex FMP57 Guided Wave Radar Level Transmitter Manual PDF (4.4 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
FMP57-AAAAADAEA4AEJ [300mm] Show Configuration	$3,814.50	1 in stock

Base Price:: $3,345.16
Approval Type: Non-hazardous
Approval: Non-hazardous area
Power Supply and Output: 2-wire, 4-20mA HART
Display and Operation: Without and via communication
Housing: GT19 dual compartment, plastic PBT
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Probe: Rod, 16mm, 316L
Probe Length: 300 mm (+$20.73)
Seal: FKM Viton, -22 to 302°F (-30 to 150°C)
Process Connection: NPS 1-1/2in, Cl.150 RF, 316/316L flange ASME B16.5 (+$448.61)
Language: Without (English comes standard)
Application Package: Without
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Probe Design: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
FMP57-AAAACALCA4GGE 6,000mm	Call for information	2	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
